These instructions are for the current (v2) light brackets. For V1 brackets (metal parts), see this article.
Parts required
- 3mm allen key
- 4x M5 * 25mm bolt (sometimes shipped with 30mm)
- 4x M5 nut
- 4x white pipe clip
- 2x wooden light bracket
- 4x push-in peg
Assemble the brackets

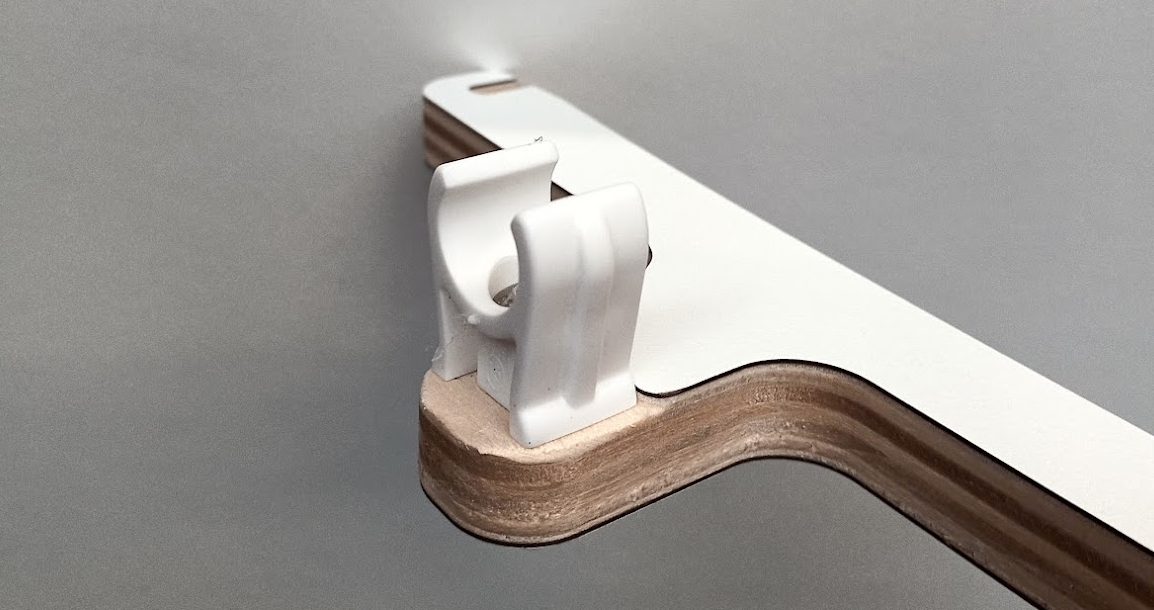

Fit the pipe clips to the brackets as shown in the photo below.
Fit the brackets
Push four pegs into the holes in the side panels, at the required height. You can move the pegs into different holes to set the lights at different heights.

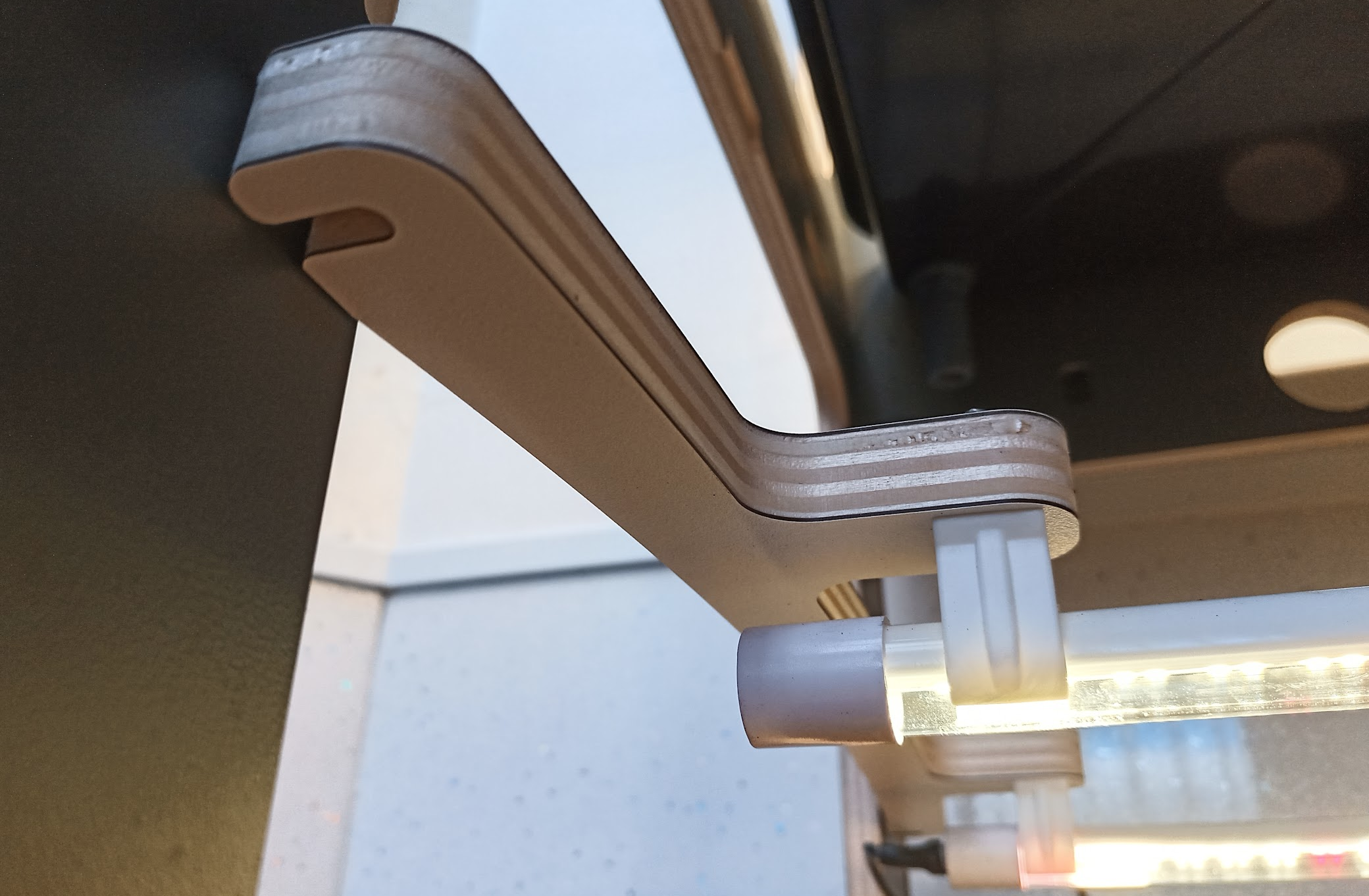

Clip the lights into the pipe clips, with the long wire at the rear left of the H-series system. Put the brackets onto the pegs as shown below:
Run the cables out through the back of the system, down the rear and into the control unit. The lights can connect to any of the three sockets marked "LIGHTS 1 / 2 / 3"
If you have extension modules (H2 or H3 model), jump to the Extension module section now, to add further levels.
