H-series cabinet assembly

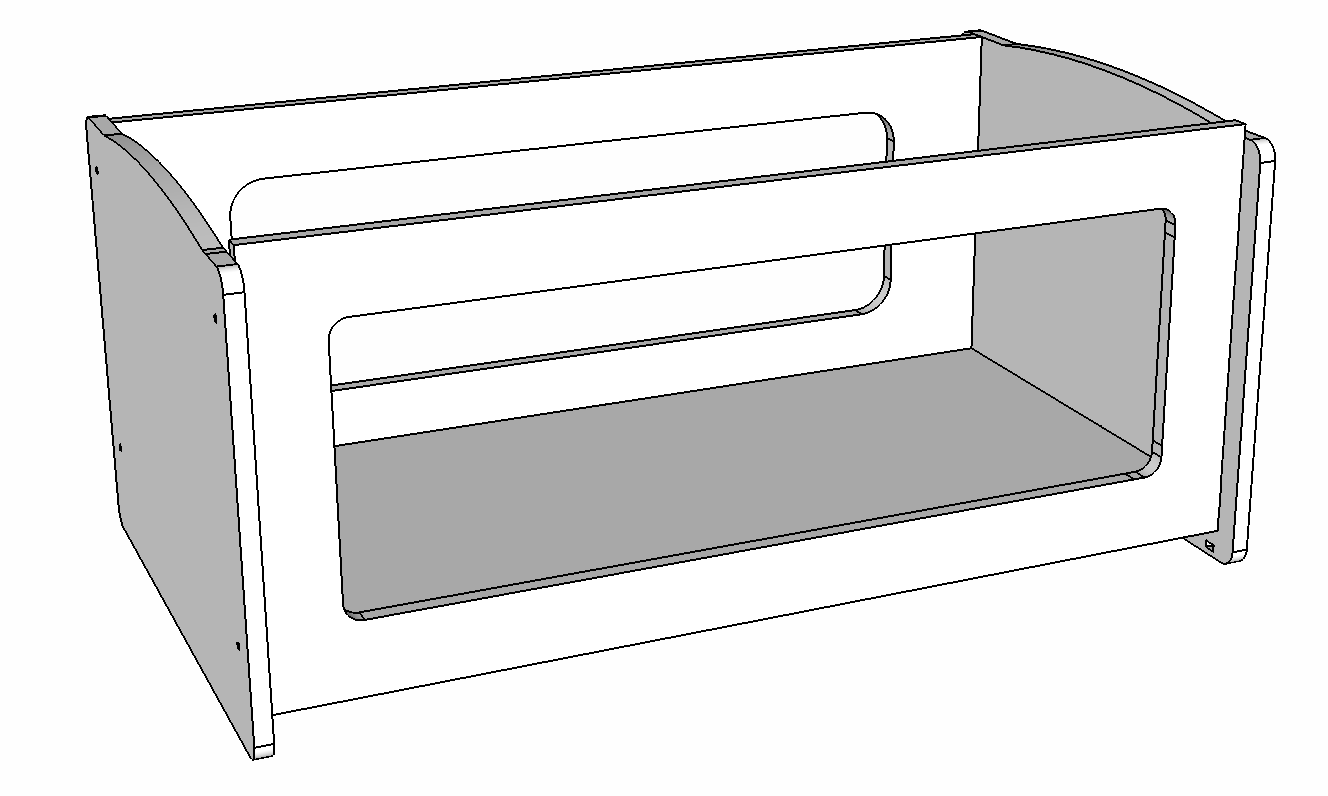

The finished item looks like this:

Note how the large window is on the front and the smaller window is on the rear.

Parts

• 6x plastic joining block

• 12x screw
• 8x rectangle nut
• 8x wafer head bolt
• 1x side panel left
• 1x side panel right
• 1x front panel
• 1x rear panel
• 1x floor

Process

1. Insert the wafer bolts through the outside of the left and side panels. The outside has a small radius on the edge.
2. Thread rectangle nuts onto the tips of the wafer bolts, so they are only just secured.
3. Screw the blocks to the front and rear panels, using the pilot holes provided. These blocks will support the floor.
4. Attach both the front and rear to the left panel. Match the A-A, B-B, C-C etc to get the correct orientation.
5. Place the floor on the blocks and slide it into the left panel.
6. Attach the right panel.
7. Secure all wafer bolts tightly.

Attaching the feet

Leveling feet are supplied with the H1 base unit. These will need to be removed, and added to the cabinet.

1. Insert the M6 nuts into the slots in the cabinet side panels.
2. Thread the feet up into the nuts.

You're done! Place the H-series main unit on top of the cabinet.
