You'll now fit the lights.
Parts
- 2x LED light
- 4x large angle bracket
- 4x M5 * 16mm bolt
- 4x M5 * 8mm bolt
- 4x M5 washer
- 12x M5 nut
Fit the studs to the side panels
- Push the 16mm bolts into the top two holes in the side panels, from the outside.
- Fix them with a nut on each bolt. Tighten securely.
This will form a set of four "studs" facing inwards. - Fix the angle brackets to the studs using 4 more nuts. Tighten in the correct position.
Fit the lights to the studs
- Position the lights with the cable on the same side as the exit hole on the rear panel.

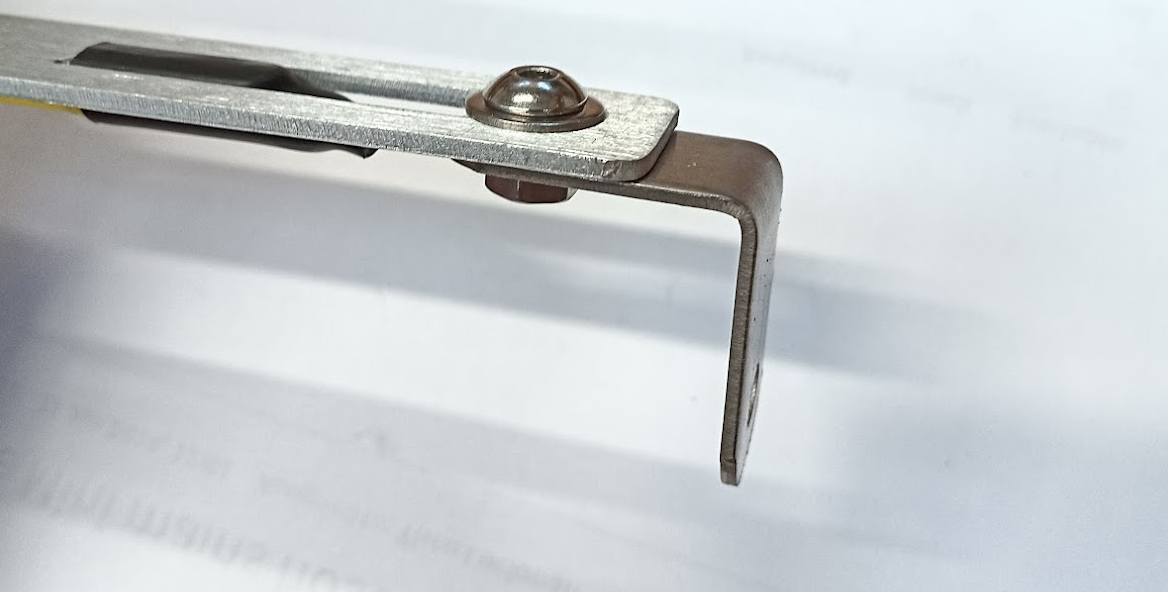

- Using an 8mm bolt and washer on top, and a nut underneath, secure the LED lights to the brackets as show in the photo below. (the bracket is shown without the acrylic side panel for clarity).
