Parts
- 5x screw-in peg
- 5x push-in peg
[ if you have been supplied with 10x screw in pegs, see note 1 at the bottom of this article ]
Process
The water tray will rest on these pegs.

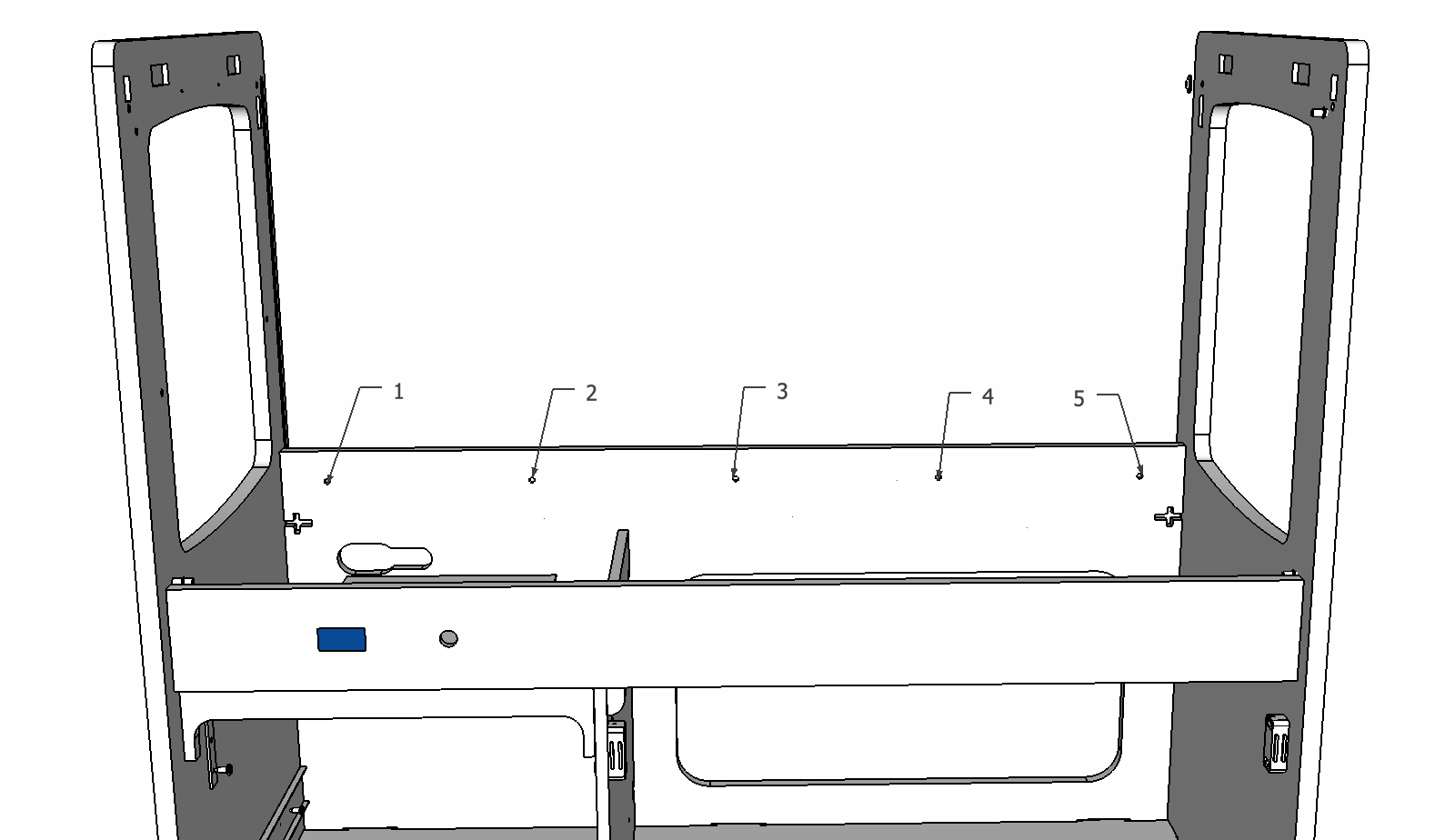

Insert 5 push-in pegs into the rear panel in the marked locations.
Do the same for the front panel, using the screw-in pegs.
Note 1
If you have 10x screw-in pegs, create suitable pilot holes, if required, and screw the pegs in at the appropriate height, using the existing holes for guidance.
Note 2
Some early parts have slightly larger 5mm pilot holes on the front panel, and the screw-in pegs aren't always secure. In this case, screw the peg in to the left or the right of the 5mm pilot hole.
