Parts
- Extractor kit (in box)
- 4x M5x70mm bolt
- 4x 50mm standoff (50MM.SO)
- 4x M5 nut
Process
Be careful with the extractor unit while it is being handled. Do not pull the wires.

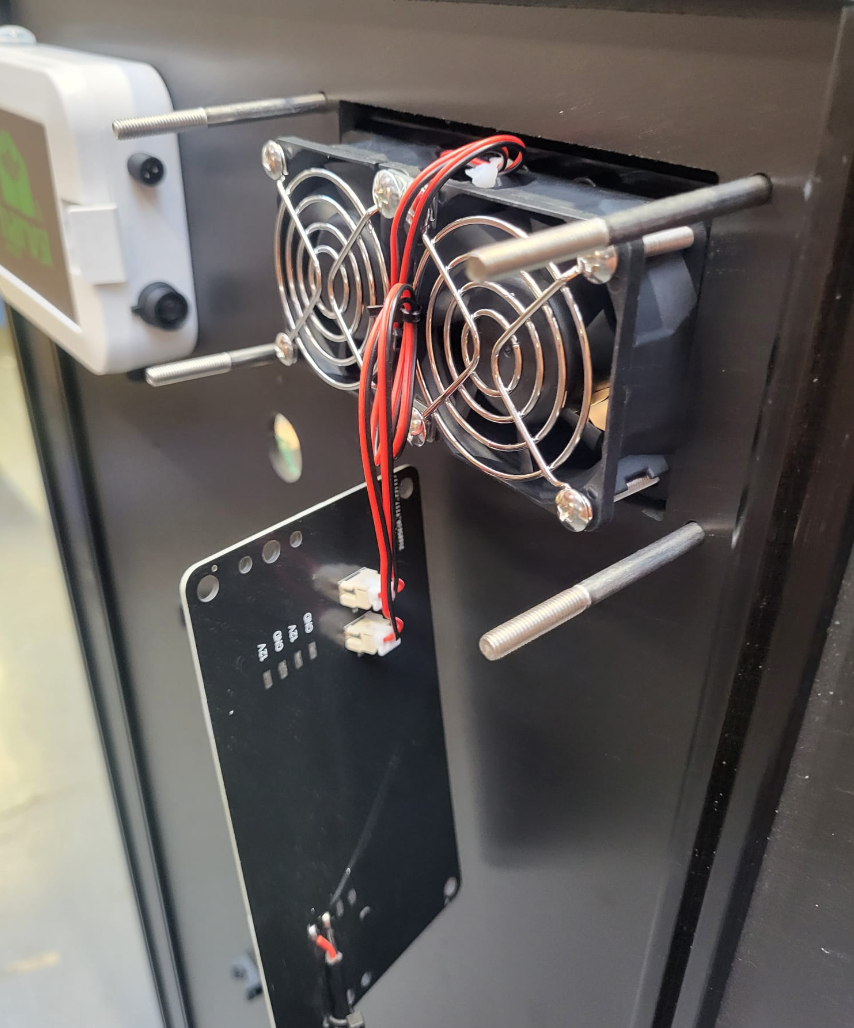

- Push the black cover panel through the hole from the rear then push the extractor into place, the open end pointing downwards.
- Push the four long bolts through from the rear.

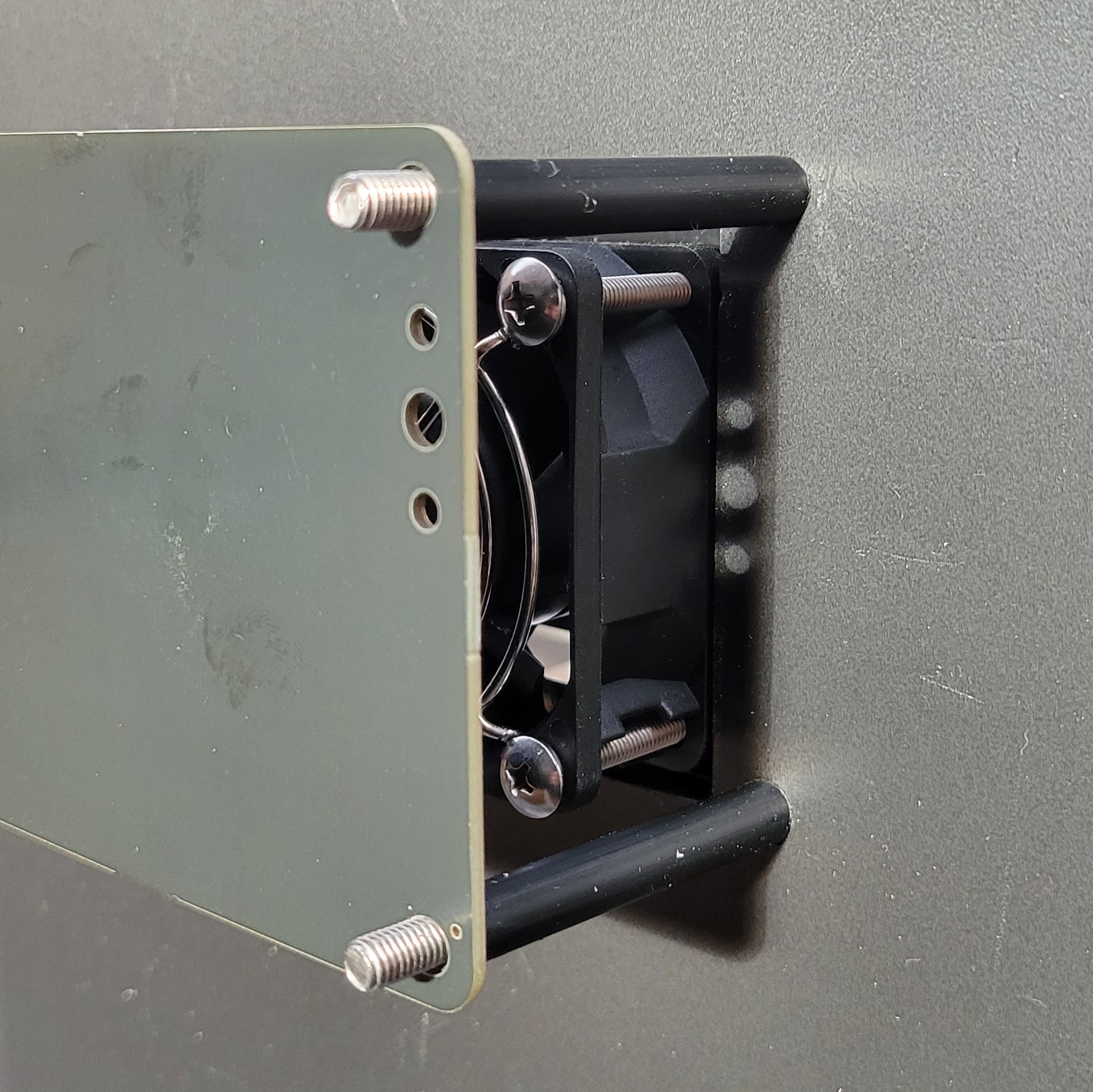

- Put the sections of pipe (50MM.SO) over the open end of the bolt then place the cover plate on top.

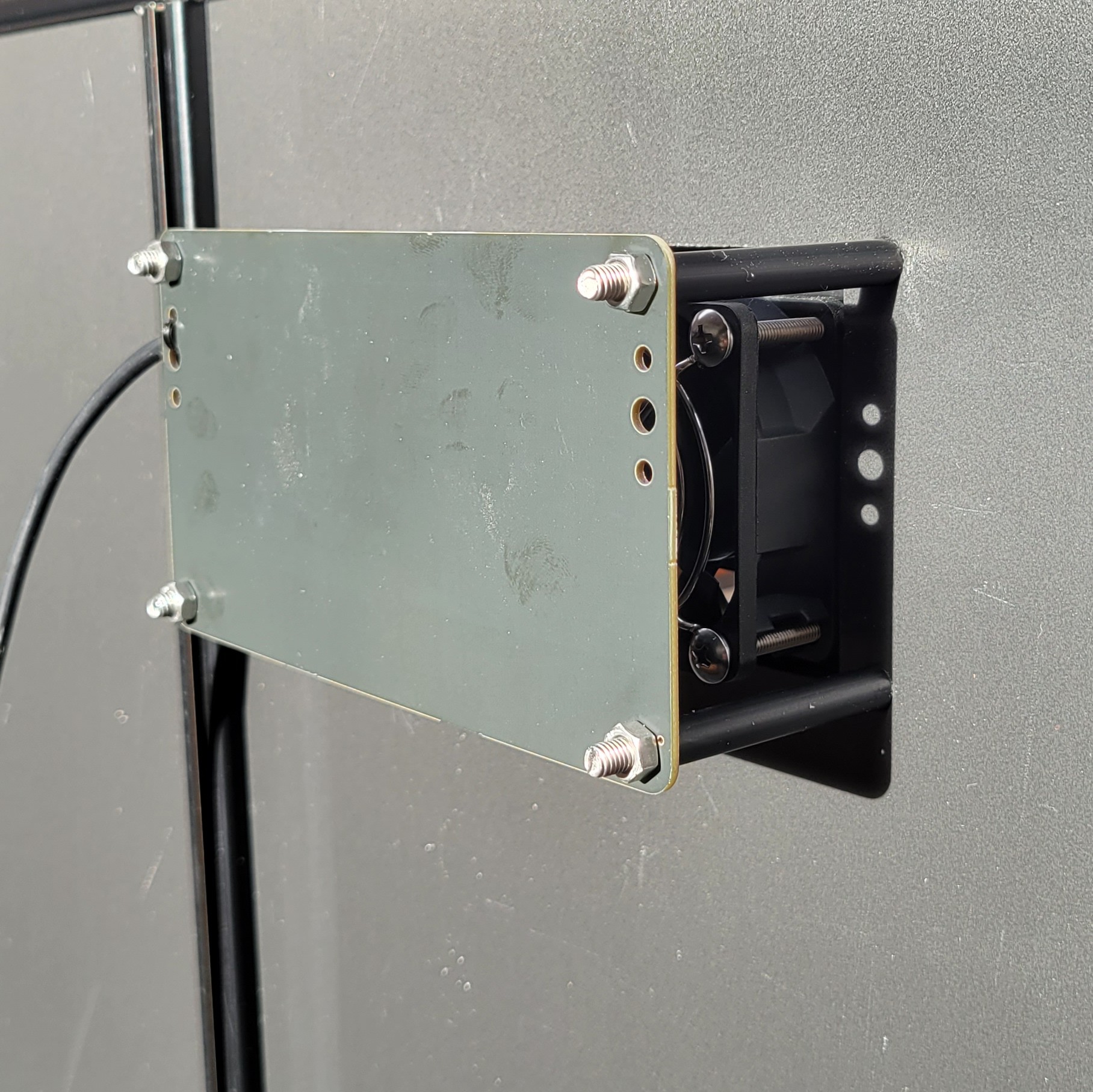

- Secure into place with the M5 nuts.
- Connect the short wire to the top left hand side port of the control unit labelled 'fans'.
