Parts
- 4 x SAB.3030 (angle brackets)
- 4 x M5X8.B (8mm button head bolts)
- 4 x M5.CN (channel nuts)
- 4 x 10GX25.PAN (screws)
Process
Ensure your S16 is located on a flat rigid surface with good access to power and sunlight.

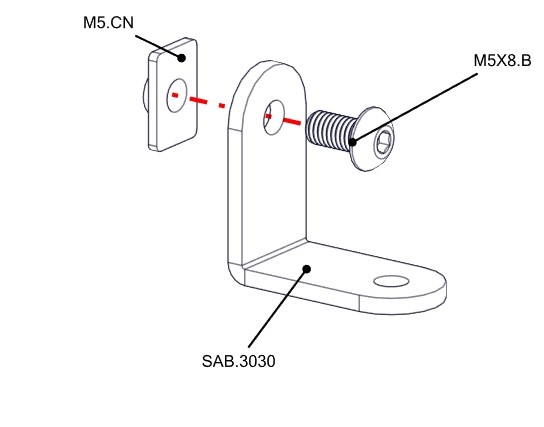

- Prepare your securing brackets as in the diagram.

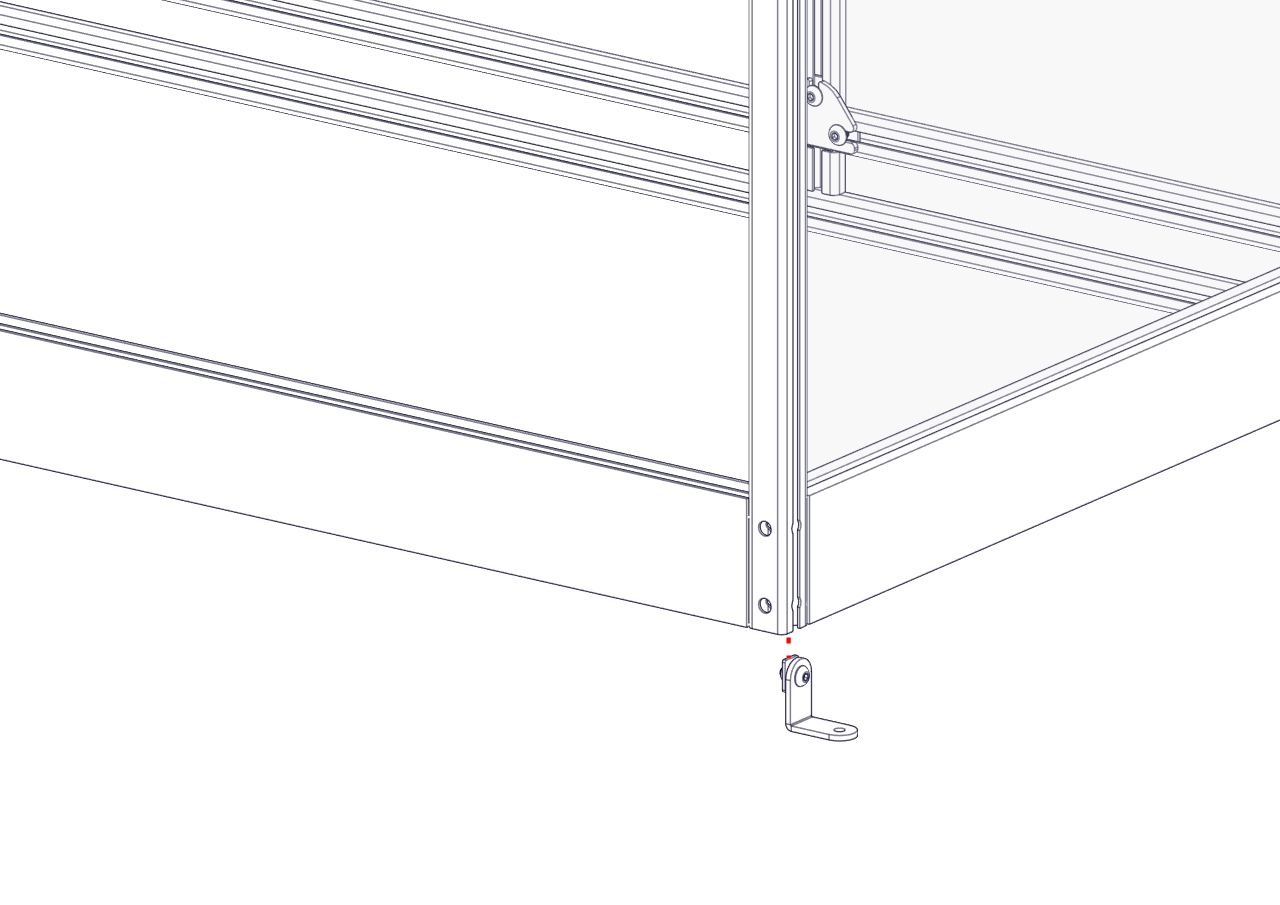

- Slot the securing bracket assemblies into the channel of the outer uprights on all 4 corners

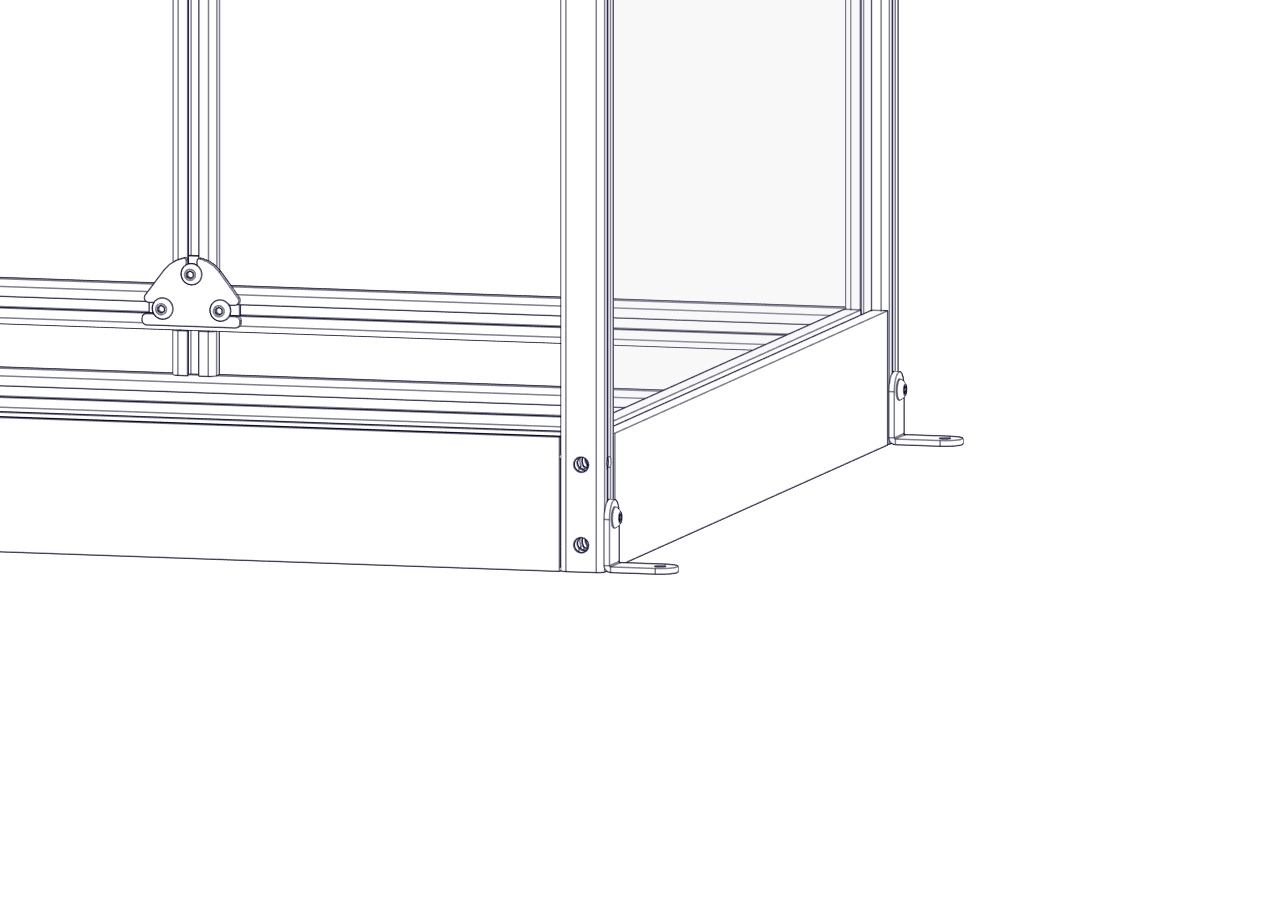

- Ensure the bottom face is flush with the floor and secure in place using the 3mm allen key
The four brackets can also be used on the rear of the greenhouse to secure it to a fence or wall.
Congratulations! Your greenhouse is now complete.
