Parts
- 2 x S16.EXK (Extractor kit)
- 8 x M5X70.C (70mm bolt)
- 8 x M5.N (M5 nut)
- 8 x 50MM.SO (50mm stand-off)
Process
You have two extractor kits in your S16, the one with two wires goes on the left when looking from the front and the one with a single wire goes on the right.

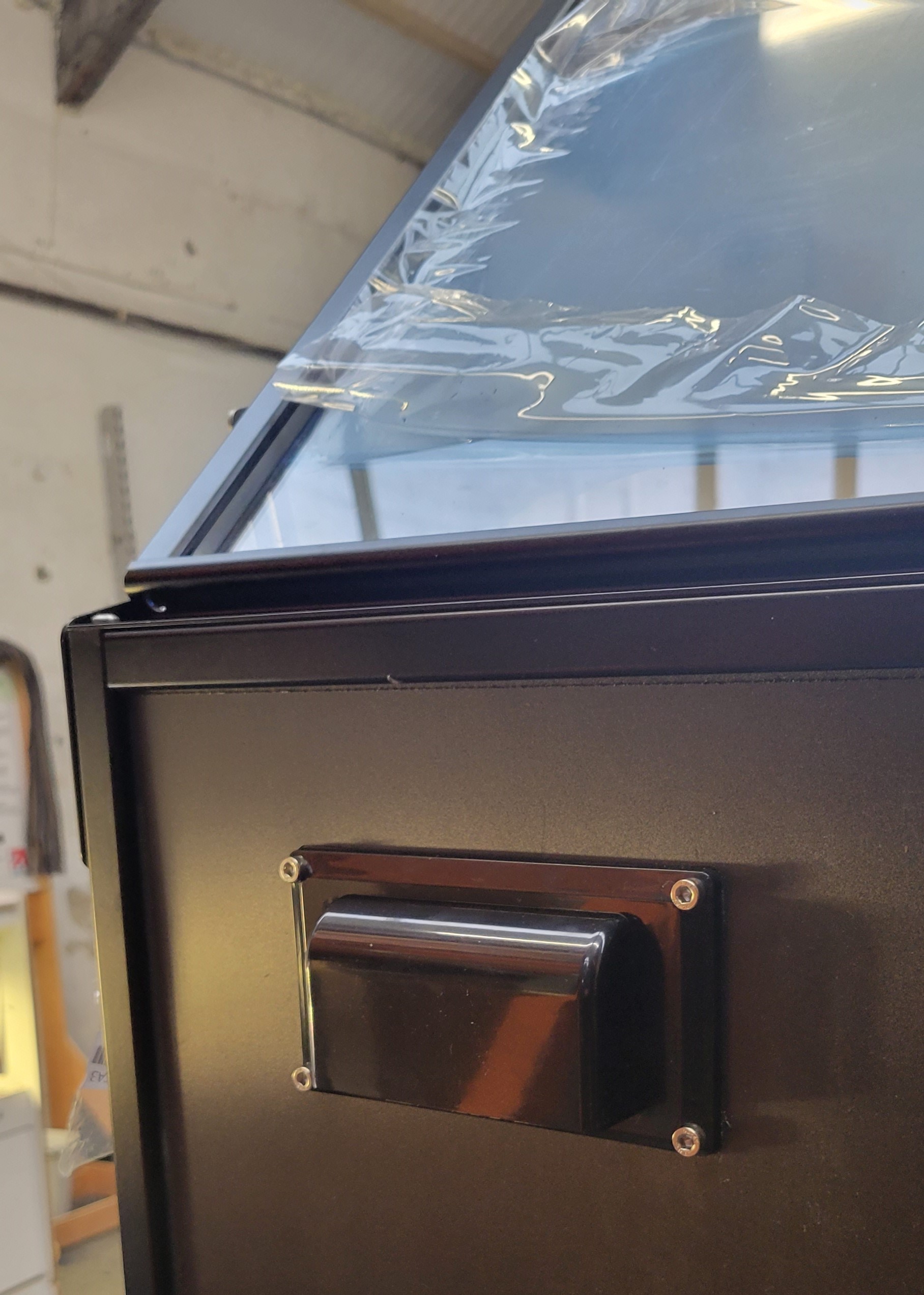

- Push the black cover panel through the hole from the rear then push the extractor into place, the open end pointing downwards.
- Push four M5X70.C bolts through from the rear.

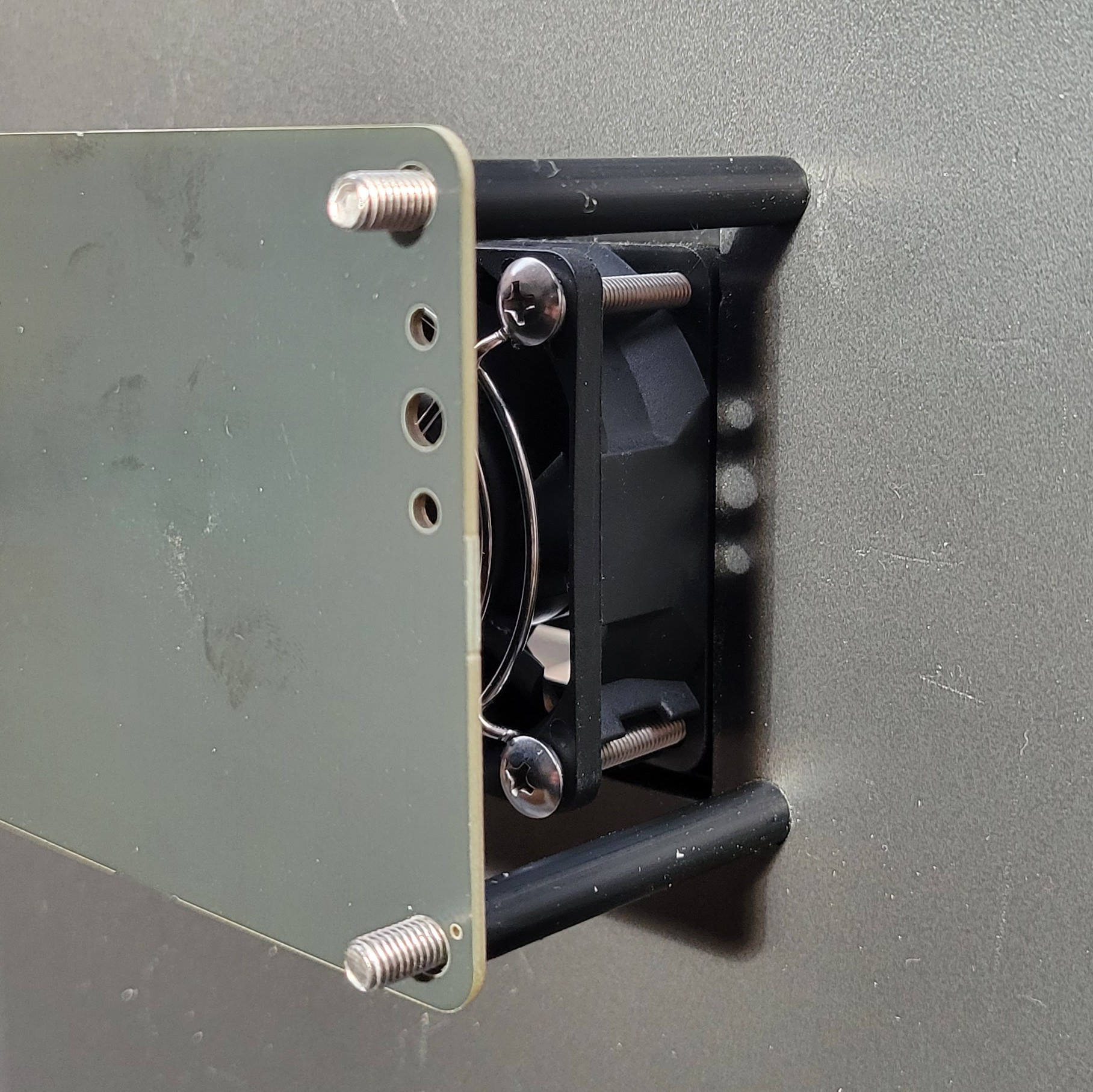

- Put 50MM.STAND.OFF over the open end of the bolt then place the cover plate on top. Make sure the wires on the cover plate point towards the control unit.
- Tighten into place with M5.NUT.
Once both panels are in:
- Connect the two together with the longer wire.
- Connect the short wire to the top left hand side port of the control unit labelled 'fans'
