Parts
- PSU.200W (power supply)
Fasteners for this step can be found inside the control box packaging.

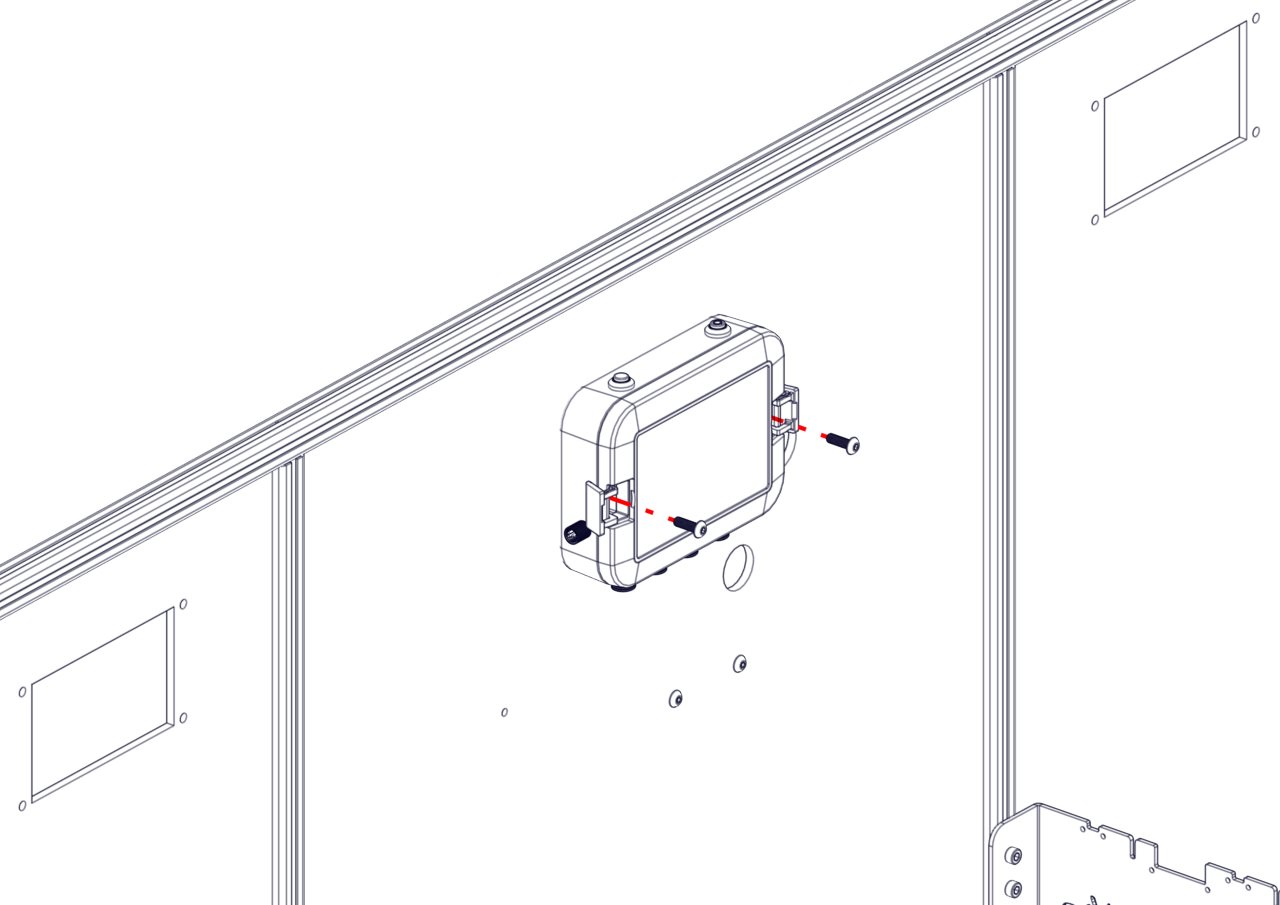

Mount the control unit

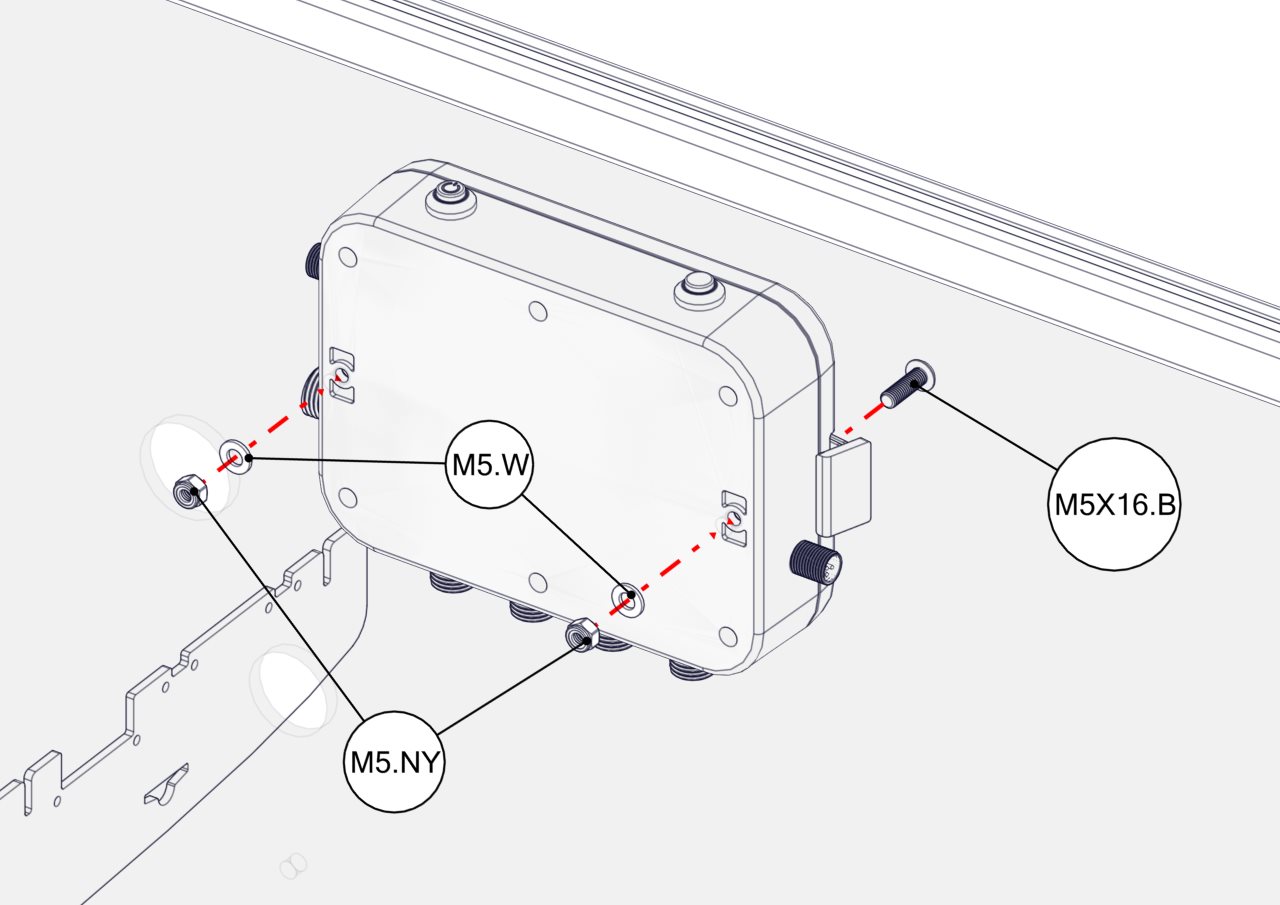

- Open the tabs on either side of the control unit and push two M5 x 12 bolts (M5X12.B) through the holes. This is easier using the 3mm allen key to hold the bolts as you put them in.
- Place the control box onto top holes on the inside of the centre panel on your S16. Tighten with the M5 nut and M5 washer on the rear.
- Plug the air temperature sensor into the top right port of the control unit labelled 'Temp'.
Light splitter cable
Plug in the light splitter cable to the right hand side port of the control unit labelled '4'.
Mount the power supply
The power supply sits on the outside rear face of the greenhouse, it is fully weather sealed so don't worry about the rain. Plug it into an inside plug or a IP67 weather sealed outdoor plug.
Don't use an extension lead.
Use the fixings supplied with the control unit.

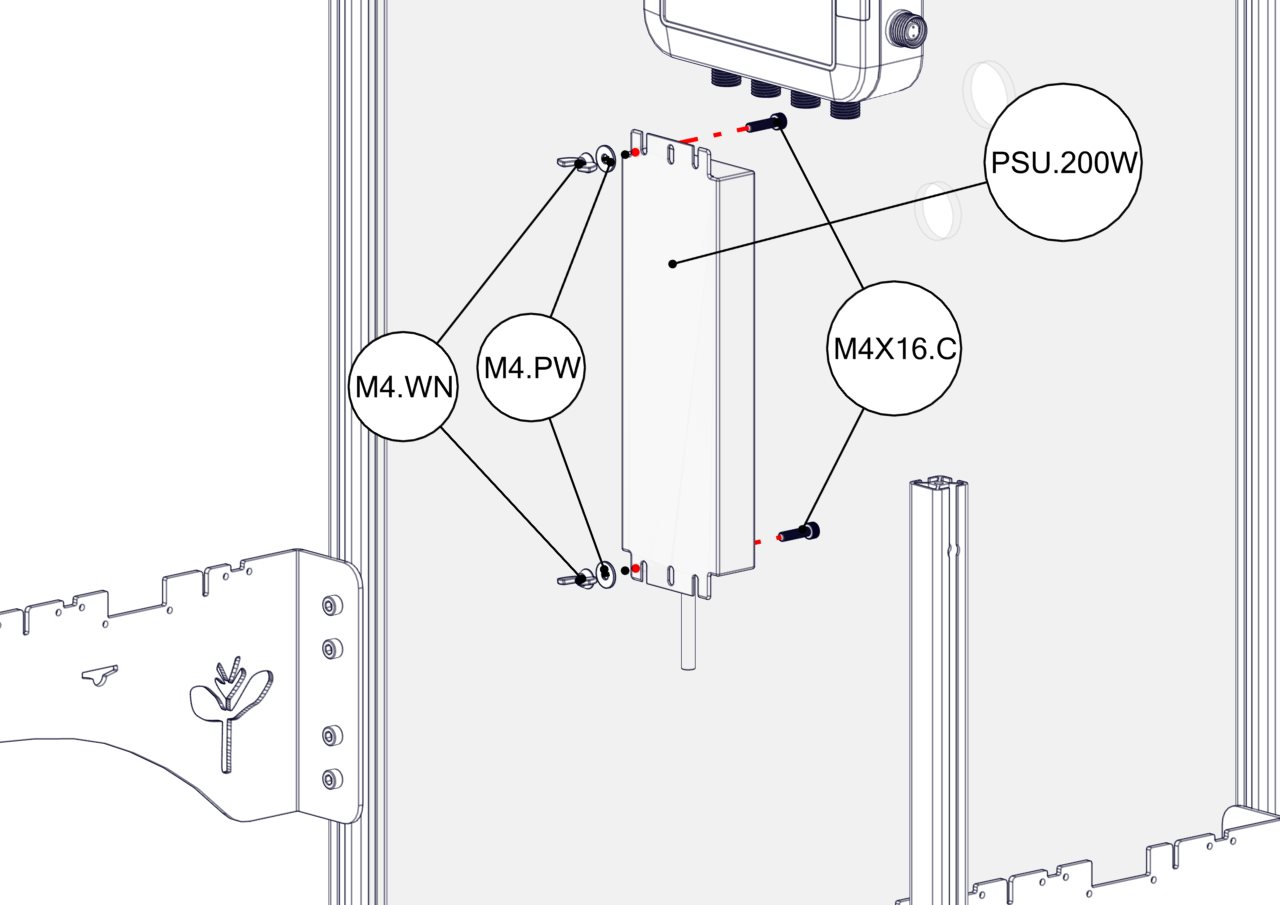

- From the outside of the greenhouse, push one M4x16 bolt (M4.16.CAP) through the lower hole marked in the attached diagram.
- Fit one M4 washer (M4.PW) and one M4 wing nut (M4.WN) to the inside.
- Slide the power supply down onto the bolt you have just fitted using the notches in the top and bottom of the casing, the end with the UK plug is facing down towards the ground.
- Push another M4X16 bolt though the top hole and notch of the power supply then fit another M4 washer and M4 wing nut to the inside.
- Tighten both wing nuts to securely fix the power supply in place.
