Parts
- 12 x LED.FLAT.BAR
- 6 x M5.WN (wing nut)
- 6 x M5X16.B (16mm bolt)
- 12 x M5.PW (penny washer)
- 2 x V2S.HCL (heater cable, long)
- 1 x V2S.HCS (heater cable, short)
Prepare LED light assemblies
There are two types of flat light we have sent out, depending on your purchase date you will have a set of 12 individual lights or a set of 6 pairs of lights connected in the centre with a wire.
Individual Light Setup

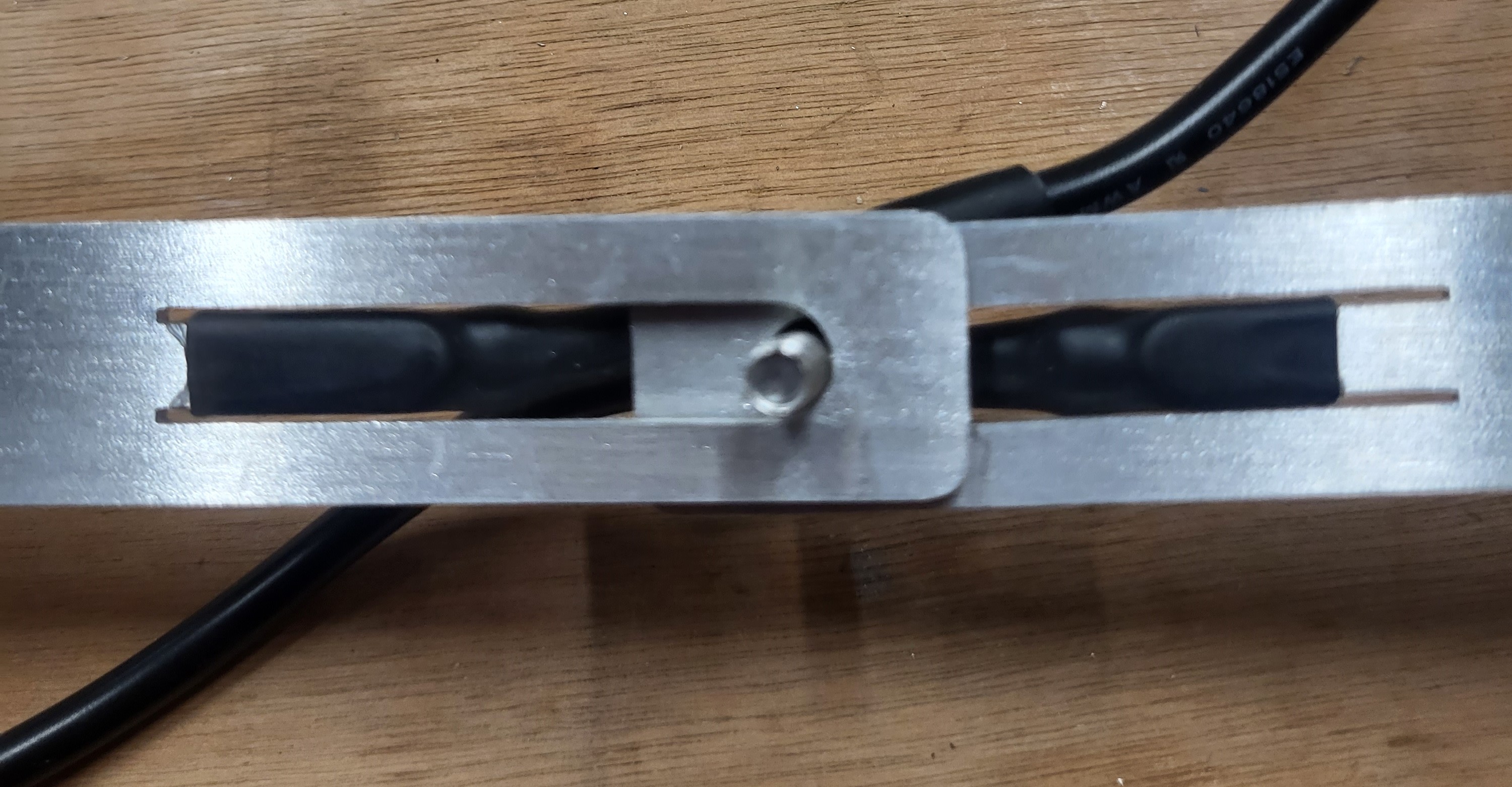

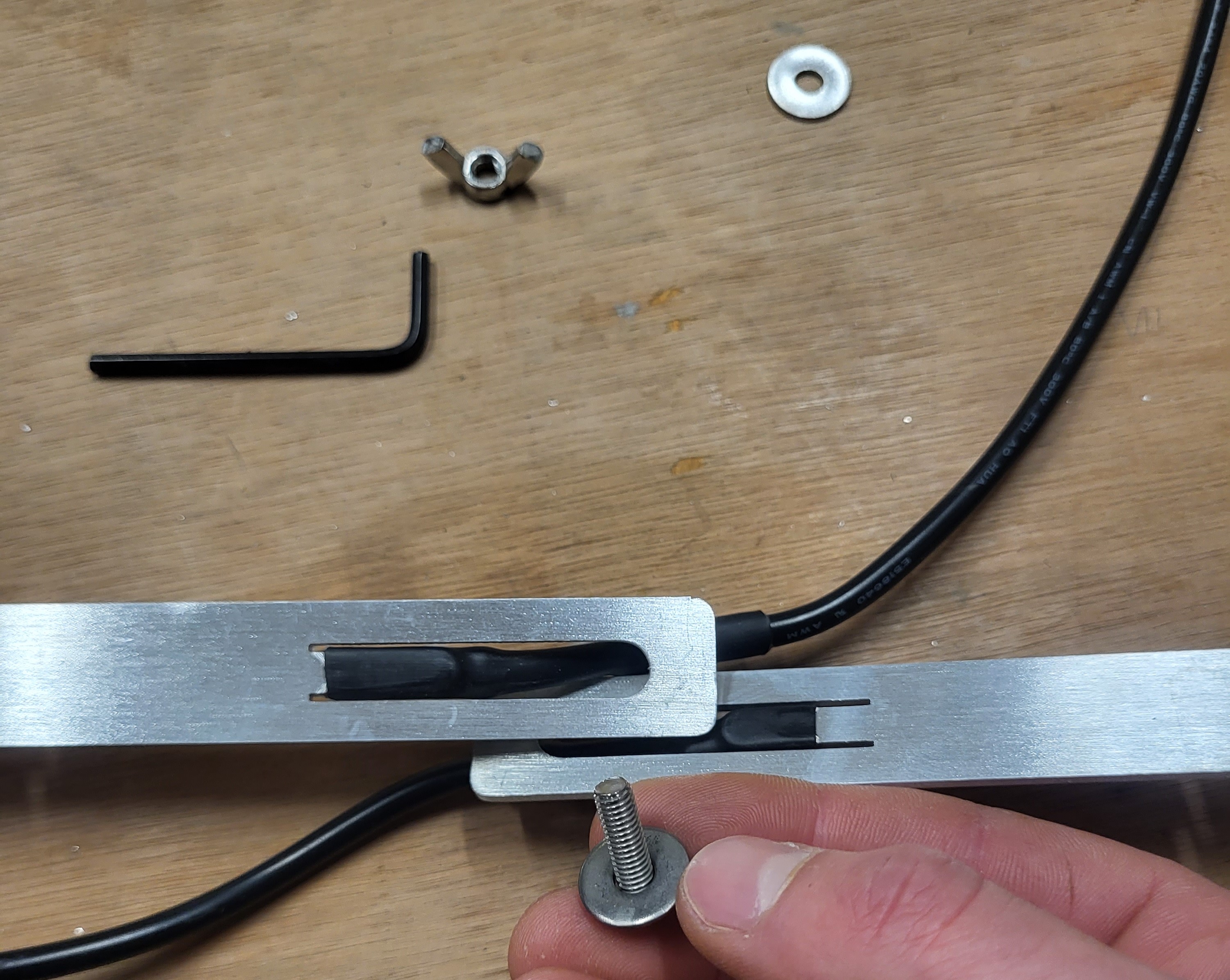

- Assemble the LED lights in pairs with the head of the bolt on the light tube side of the light components with a washer. The cable ends should be next to each other.

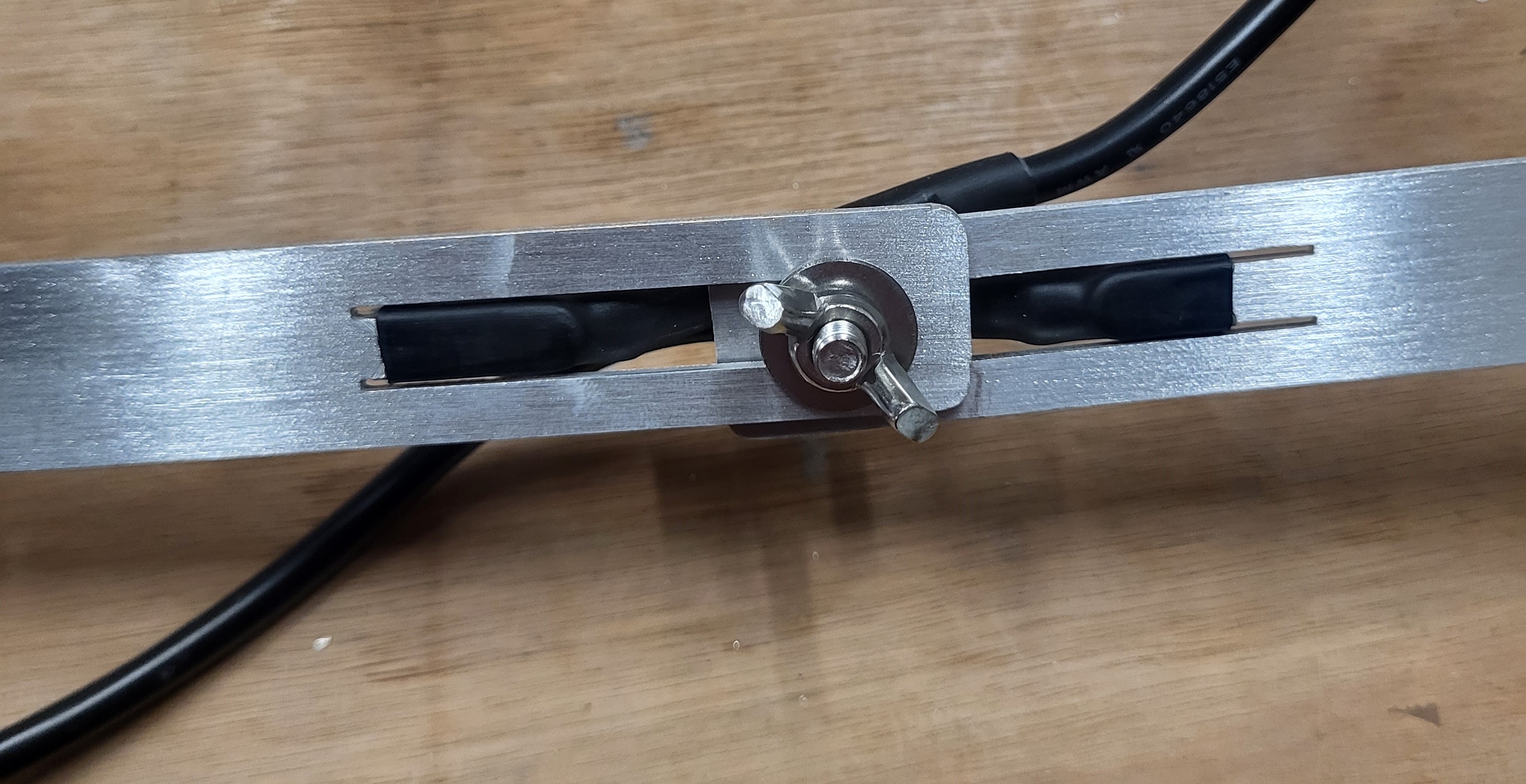

- Install another washer (M5.PW) on the non light tube side followed by a m5 wing nut (M5.WN).
Paired Light Setup
- Slide the lights through rear hole of the brackets from the centre of the greenhouse so the connector sits in the middle.
- Slide the first light through the front hole of the Bracket
- Do the same for the opposing side.
- Bolt them together from underneath using M5x15.B bolt with an M5 Washer and a M5.WN over the top. (The lights with connectors don't sit flush but overlap)
https://www.youtube.com/shorts/LQ2UhHYrioI
Install LED light assemblies
- Slot the LED light assemblies into the slots of the shelf support brackets. 2 LED light assemblies per shelf.
Install heater cable
-
- The two heater cables with the longer cable extension (V2S.HCL) are positioned on the lower shelves and the shorter (V2S.HCS) on the top shelf. Each support bracket has slots for fitting the heater cable.

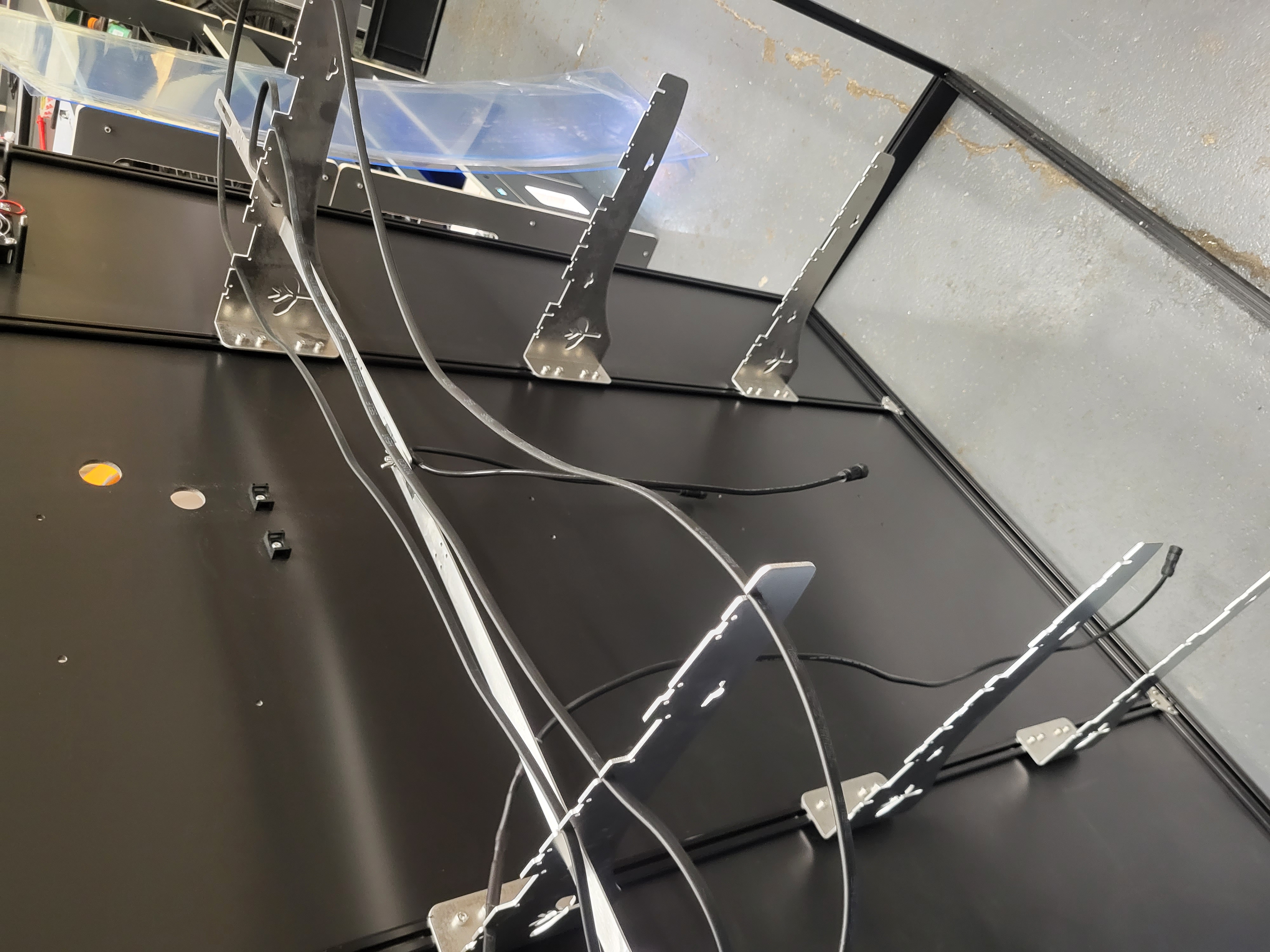

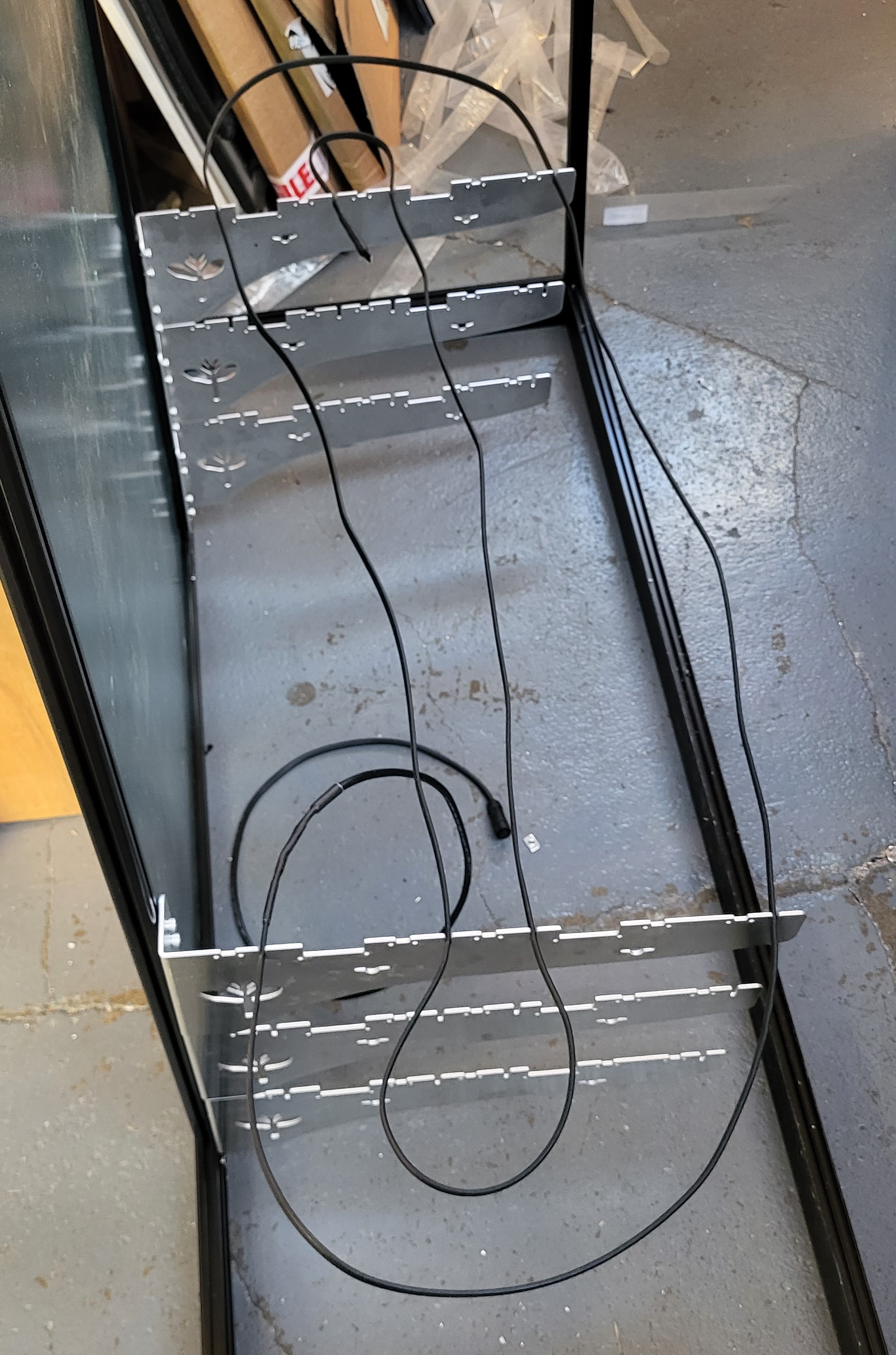

- Position the heater cables roughly using these slots as per image below. You'll first need to plug the cable into the control box.
You'll secure them to the shelves later with cable ties.
