Parts
- 2 x lid props
- 2 x M5X16.B (16mm button head bolts)
- 2 x M5.RW (plastic spacer / washer)
- 2 x M5.PW (penny washer)
- 2 x M5.PHN (plastic handle nut)
Process
Each side is built up using the same steps.

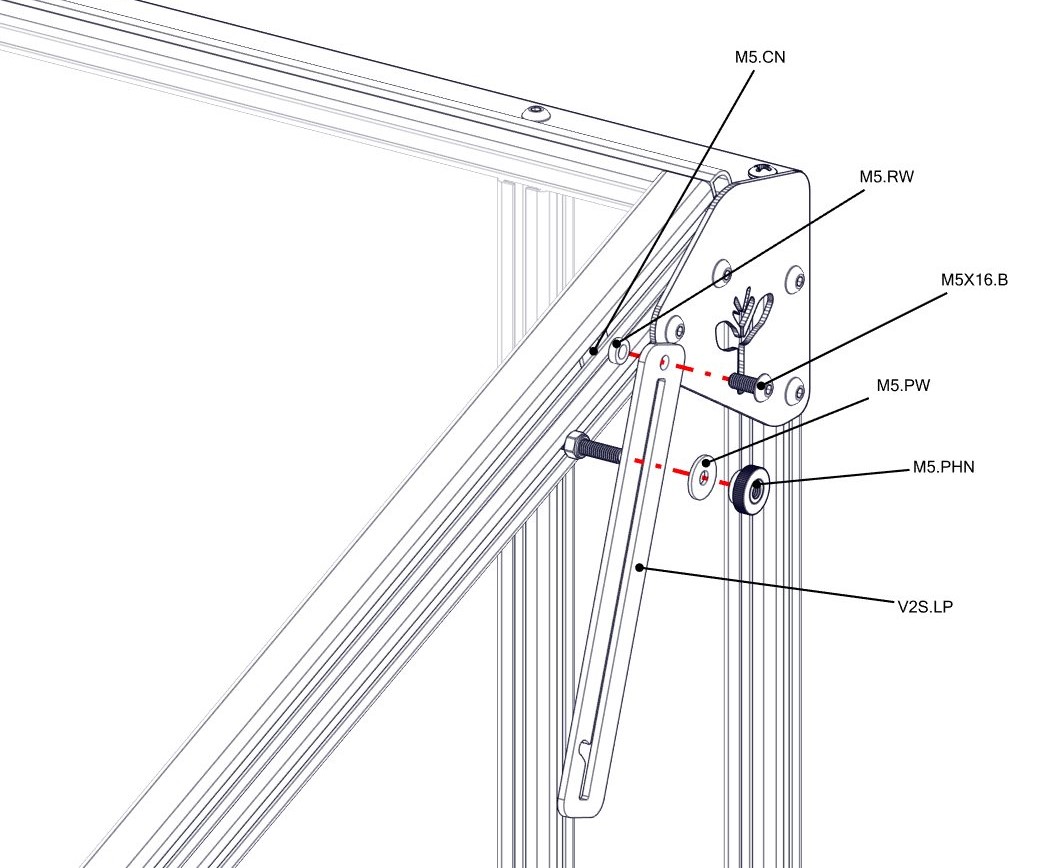

- Paying attention to the orienation of the lid prop (see below diagram), locate the M5x16 bolt through the hole at the top of the lid prop then place a plastic spacer onto the threaded end of the bolt.
- Partially thread this assembly into the channel nut located in the lid assembly.

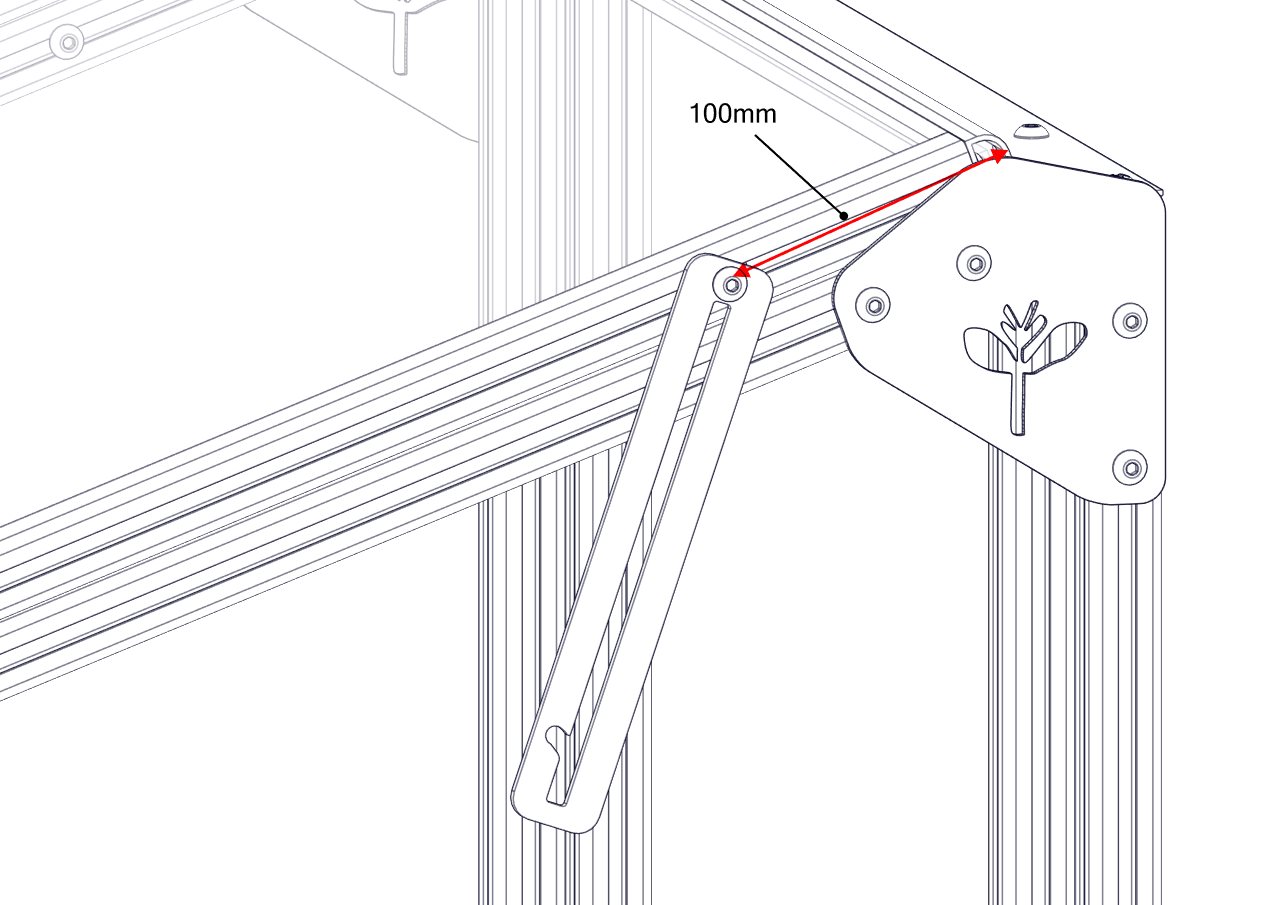

- Position the bolt centre 100mm (4") from the rear of the lid as shown below.
- Repeat with the other side.
- Slide the lid prop slot over the M5x40 in the top side assembly.
- Place a penny washer over the end of the M5X40 end followed by the plastic handle nut:
When the lid is not in use, tighten the plastic nut to prevent the lid from opening in bad weather.
