Parts
- 1 x S16.BL (built lid)
- 1 x S16.LRP (lid ridge plate)
- 2 x M5X30.B (30mm button head bolts)
- 2 xM5x16mm bolts
Process

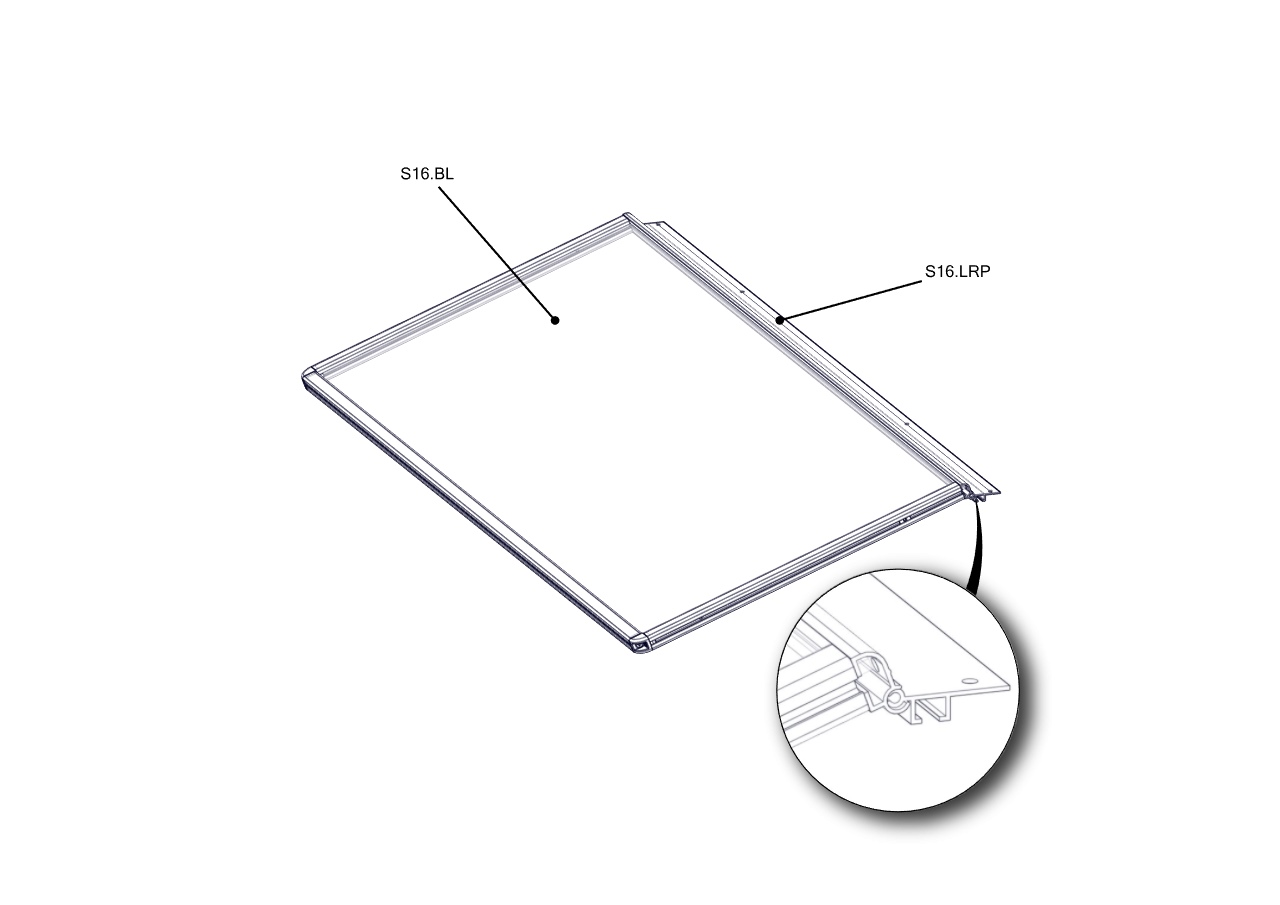

- Slot the ridge plate (S16.LRP) into the slot in the lid.

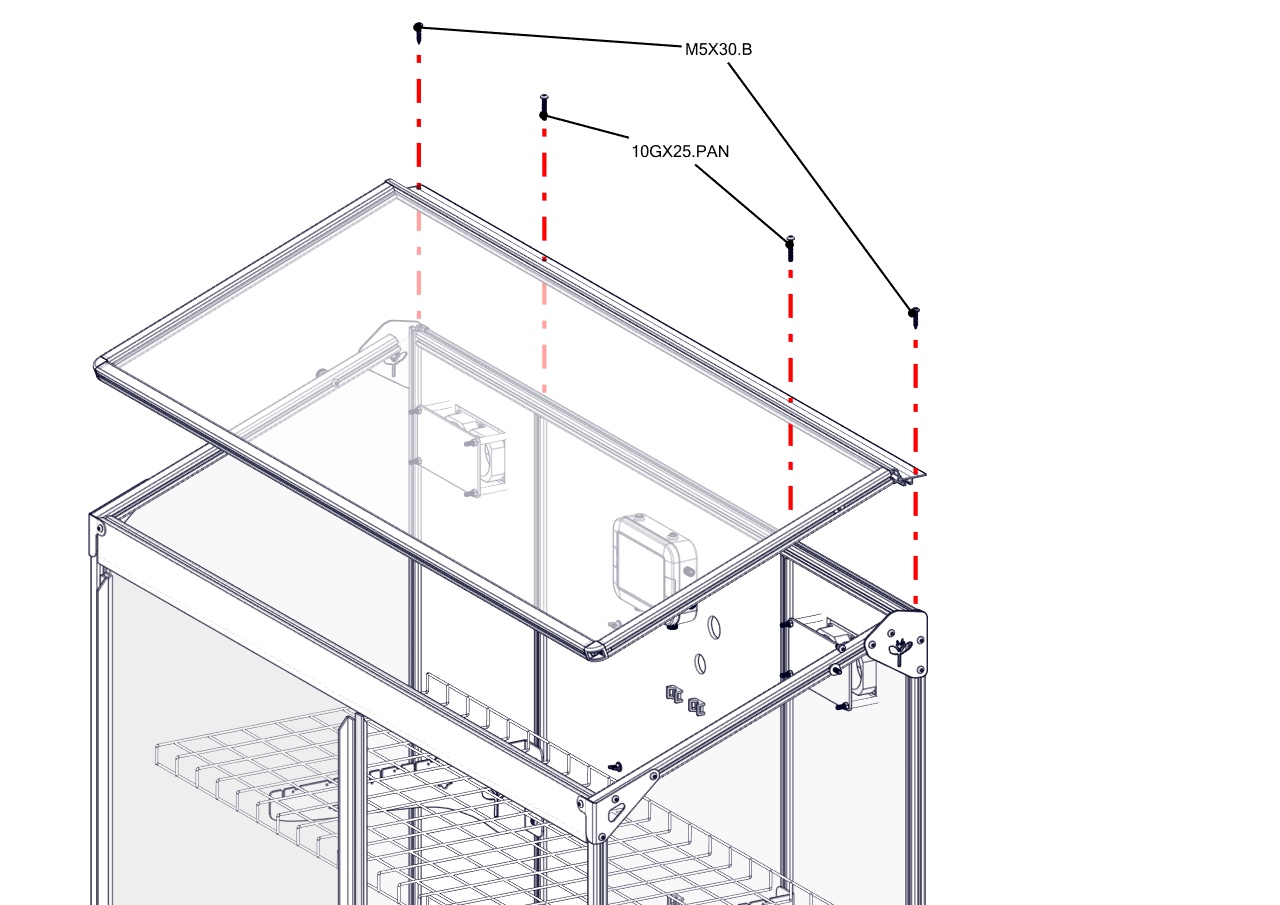

- Place the lid over the S16 frame, the hinging side goes at the top rear.
- Fix down into the outside rear uprights through the holes using bolts(M5x16).
- Fix down to centre uprights through the holes using bolts (M5x30.B).
