Parts
- S16 Frame
- 1 x 2060.TDB (top door bar)
- 1 x S16.DP (door pair)
Process

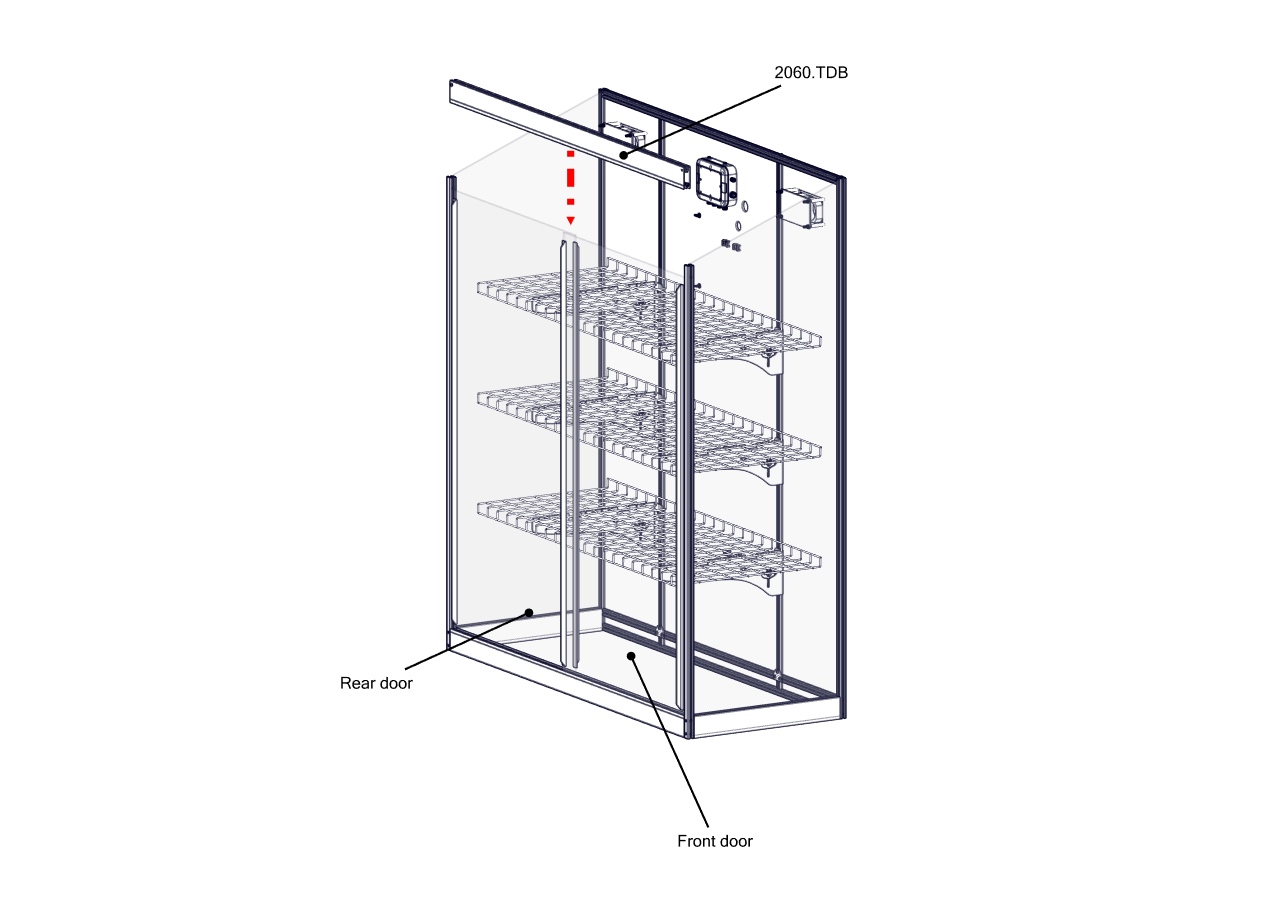

- Position the door pairs in the double channel base extrusion as follows:
The front door has two handles on the same face and the Harvst logo on the top right. The front door goes in the front channel, slid to the right.
The rear panel has handles on opposing faces and brush weather strip. - Lower the top door bar (2060.TDB) over the doors, ensuring the double channel slots align with the top edge of the door pair.

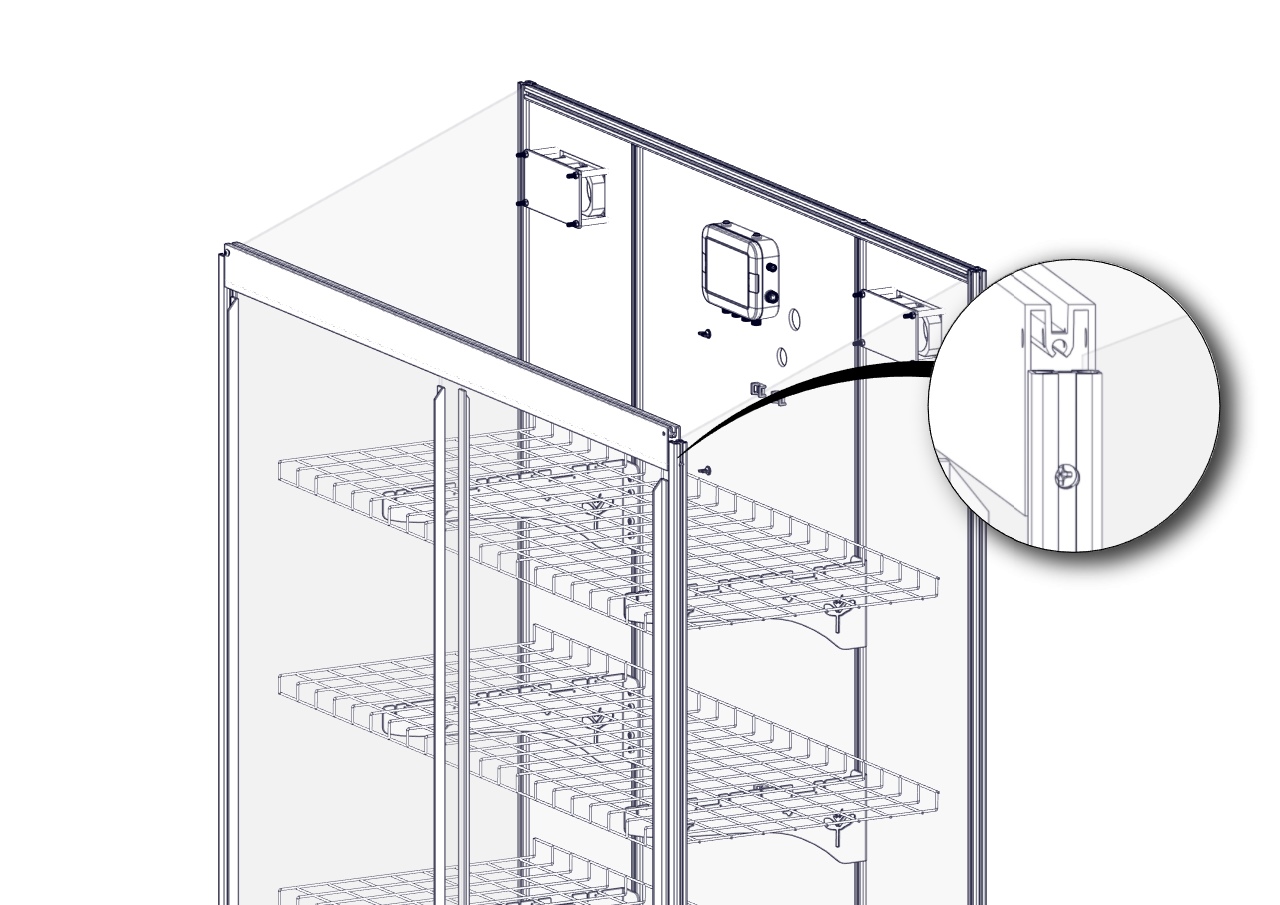

- Tighten the 2 pre positioned screws located at the ends of the top door bar through the front uprights.
