Parts
- 1 x SP.END.L
- 1 x SP.END.R
- 6 x M5X8.B (8mm button head bolts)
- 6 x M5.CN (channel nuts)
- 2 x M5x40.B (40mm button head bolts)
- 2 x M5.NY (nyloc nuts)
Process
Build up the top side assemblies as follows:

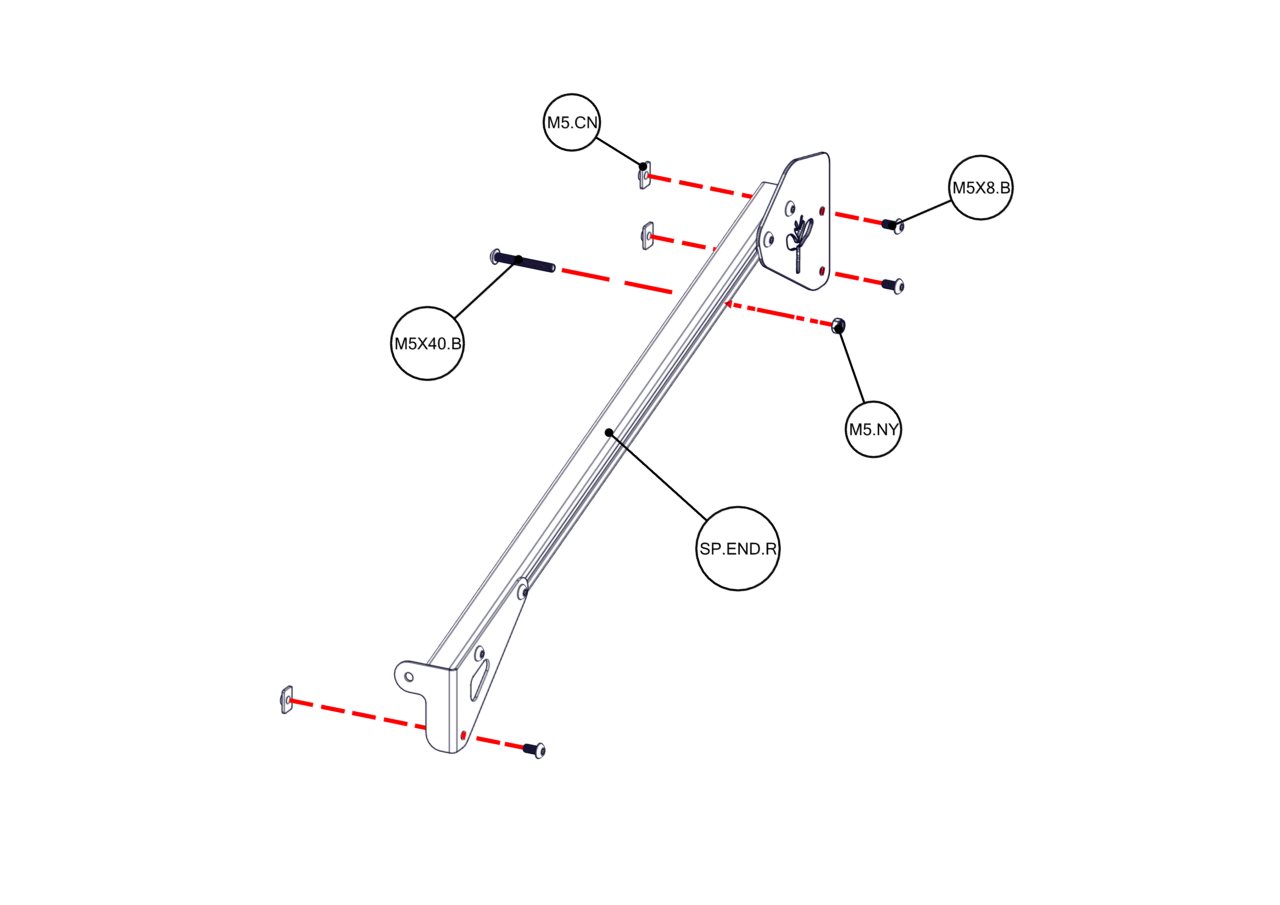

- Slot two M5x8 bolts through the spare holes of the flat plate, in the direction shown in the drawing below.
- Loosely fit a channel nut to each bolt on the inside.
- Slide one M5x8 bolt through the outside face of the bent bracket.
- Loosely fit a channel nut to the inside.
- Push M5x40.B through the pre-drilled hole from the inside and fit M5.NY to the outside and tighten.
- Repeat for other assembly.
