Parts
- 2 x S16.ROP.T (Rear outer panel top)
- 2x S16.ROP.B (Rear outer panel bottom)
- 1 x 2020.RB (Rear brace)
Process

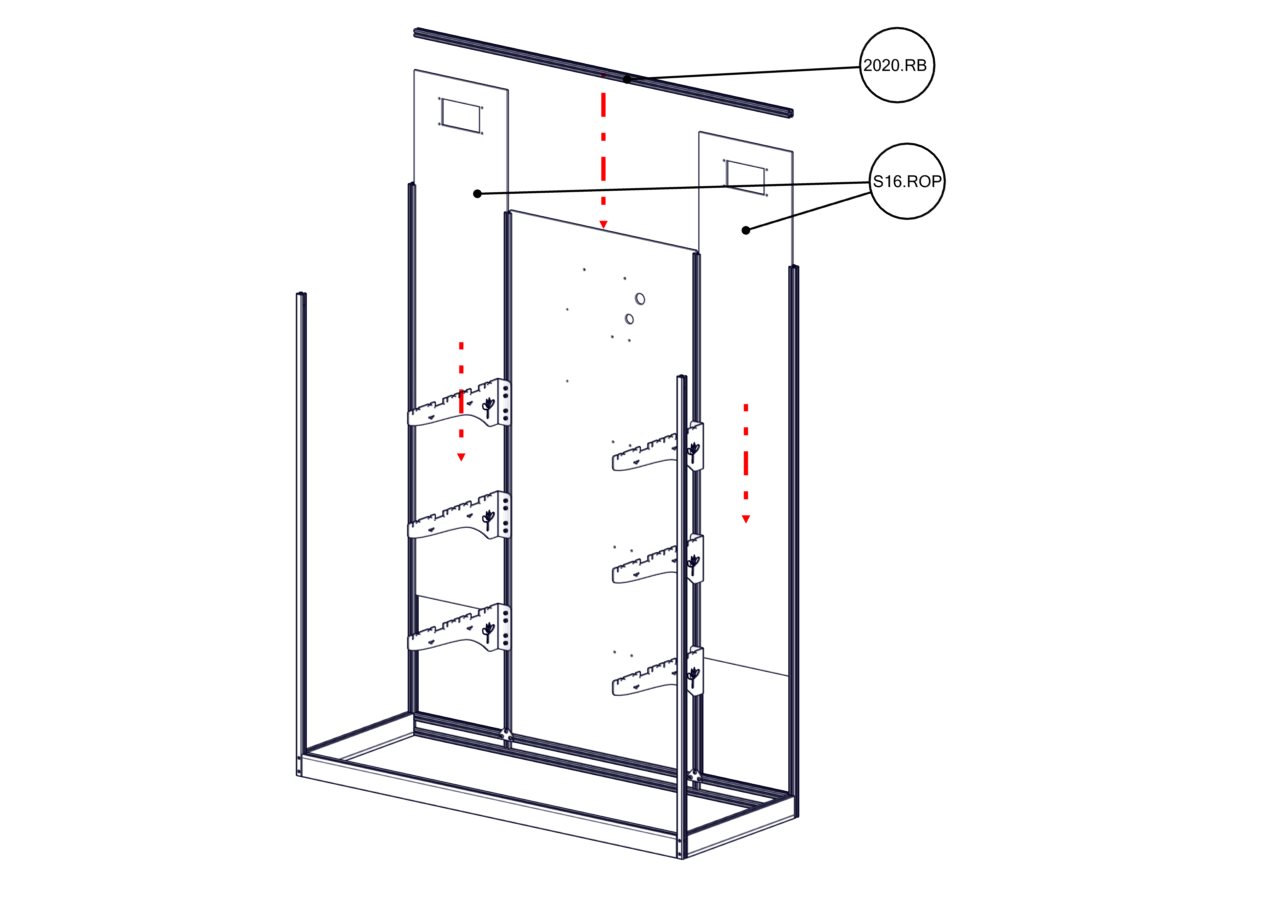

- Slide the rear outer panels into the rear assembly S16.ROP.B goes in first then S16.ROP.T slides down on top with the cut outs at the top end.

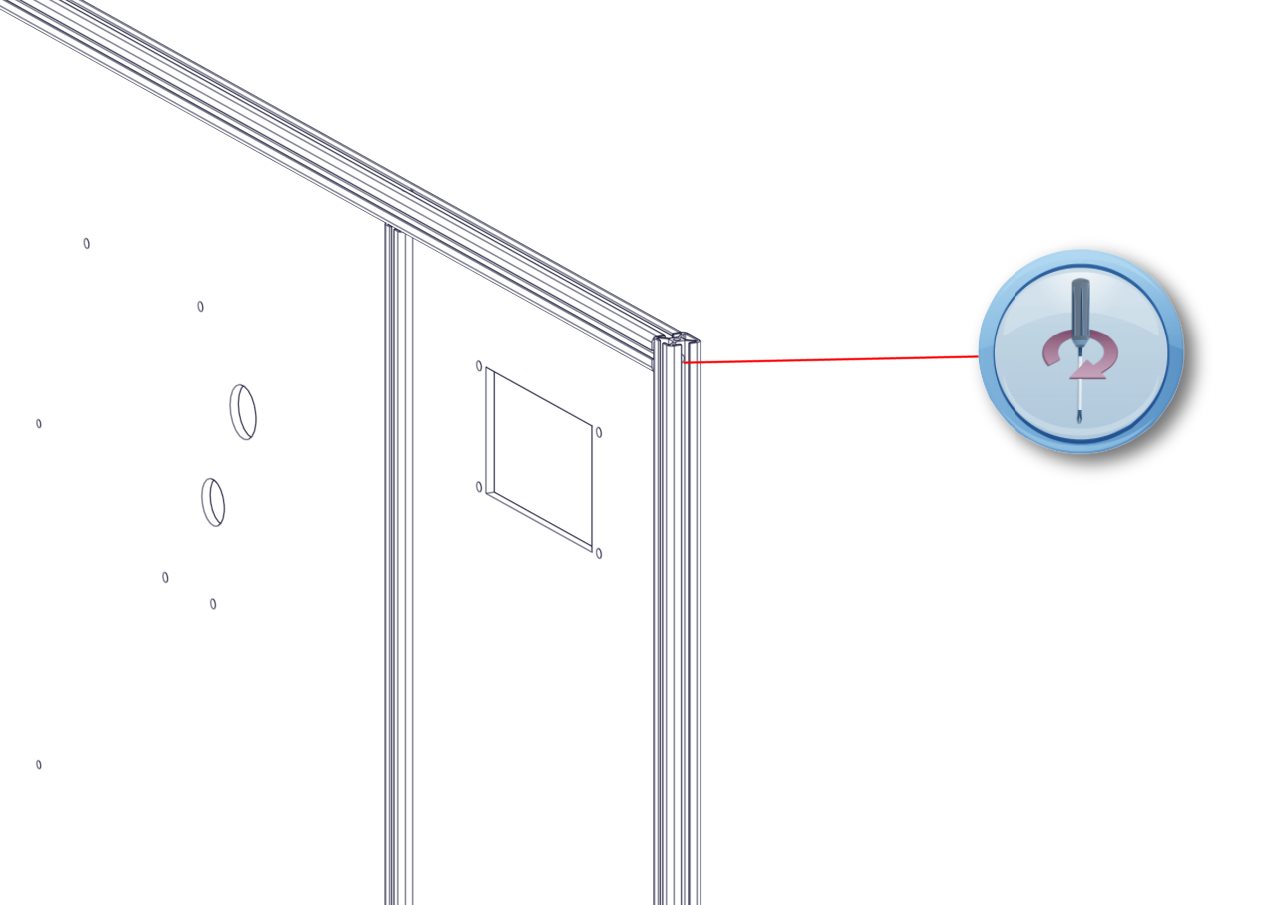

- Slide the second rear brace (2020.RB) into the top of the rear panel closed face pointing backwards. Tighten through the holes in the rear uprights.
