Parts
- 6 x Shelf bracket assemblies - step 06
- Frame from step 05
Process

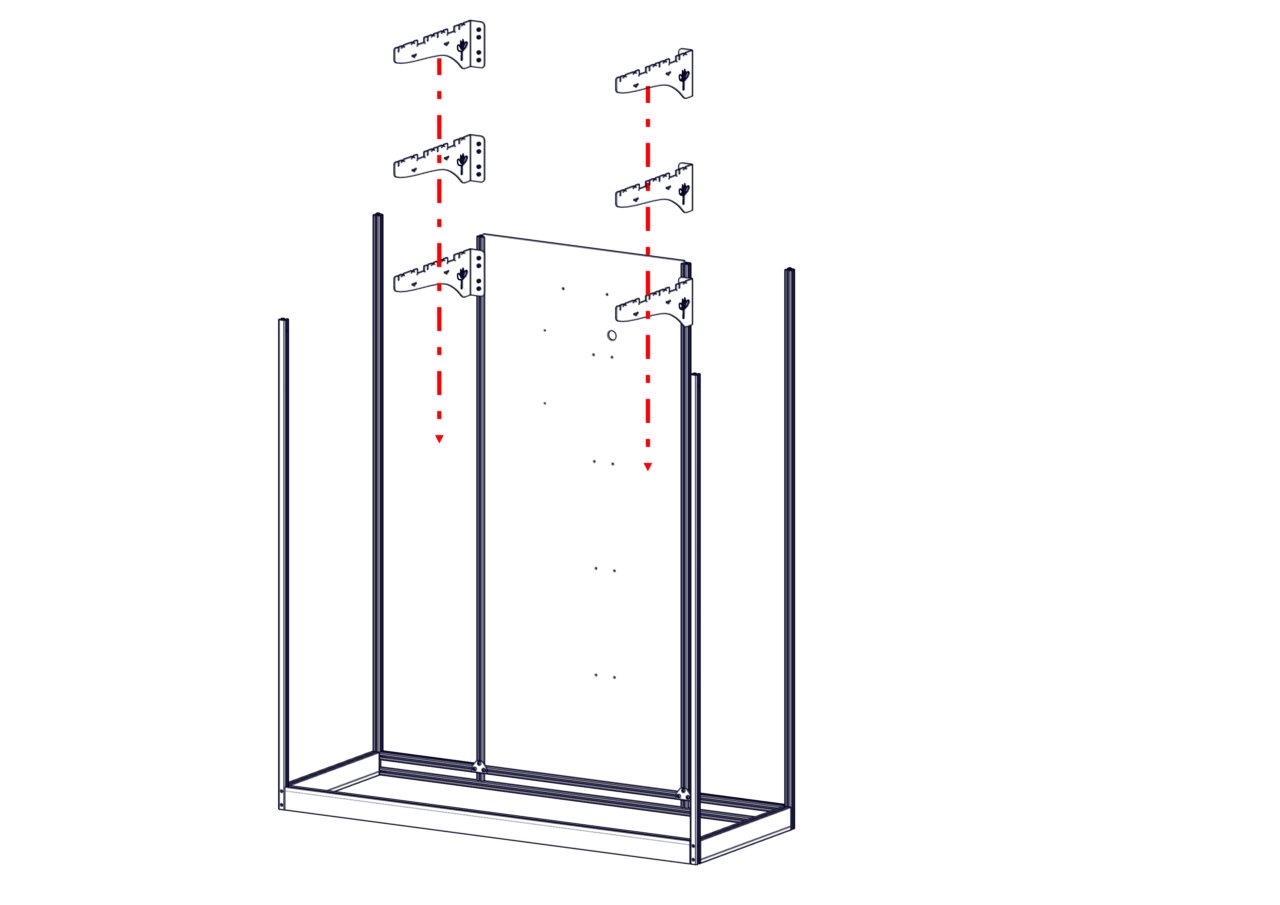

- Slide the shelf brackets into the rear open face of the S16 frame, the flat side faced upwards.

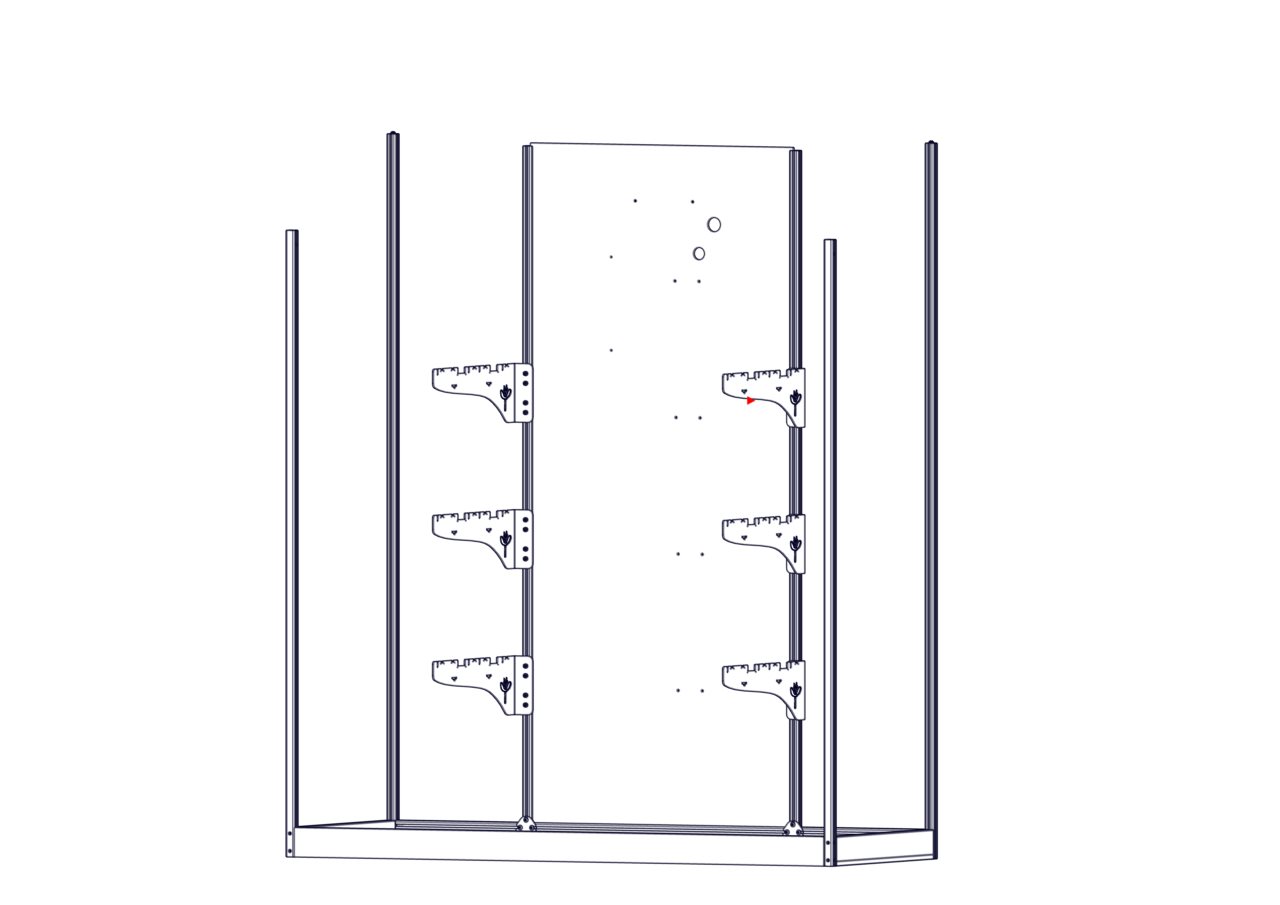

- Set a distance of 250mm spacing between shelves and tighten the bolts with the 4mm allen key.
