Parts list :
- 3 x V2S.SSB.L (left shelf support)
- 3 x V2S.SSB.R (right shelf support)
- 24 x M5X8mm cap head bolts
- 24 x M5.CN (channel nuts)
Process

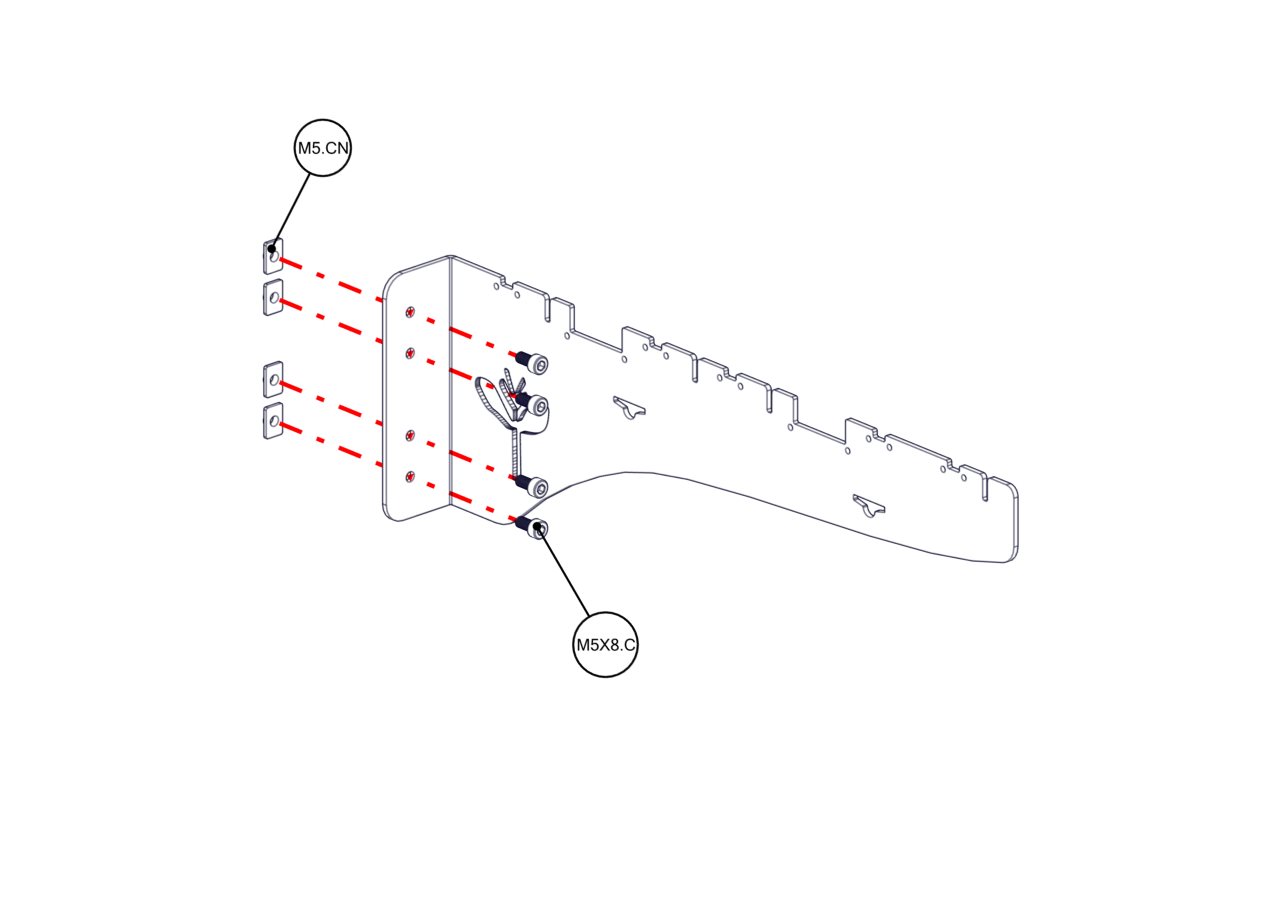

1. For each bracket you will need four M5x8.C and four M5.CN.

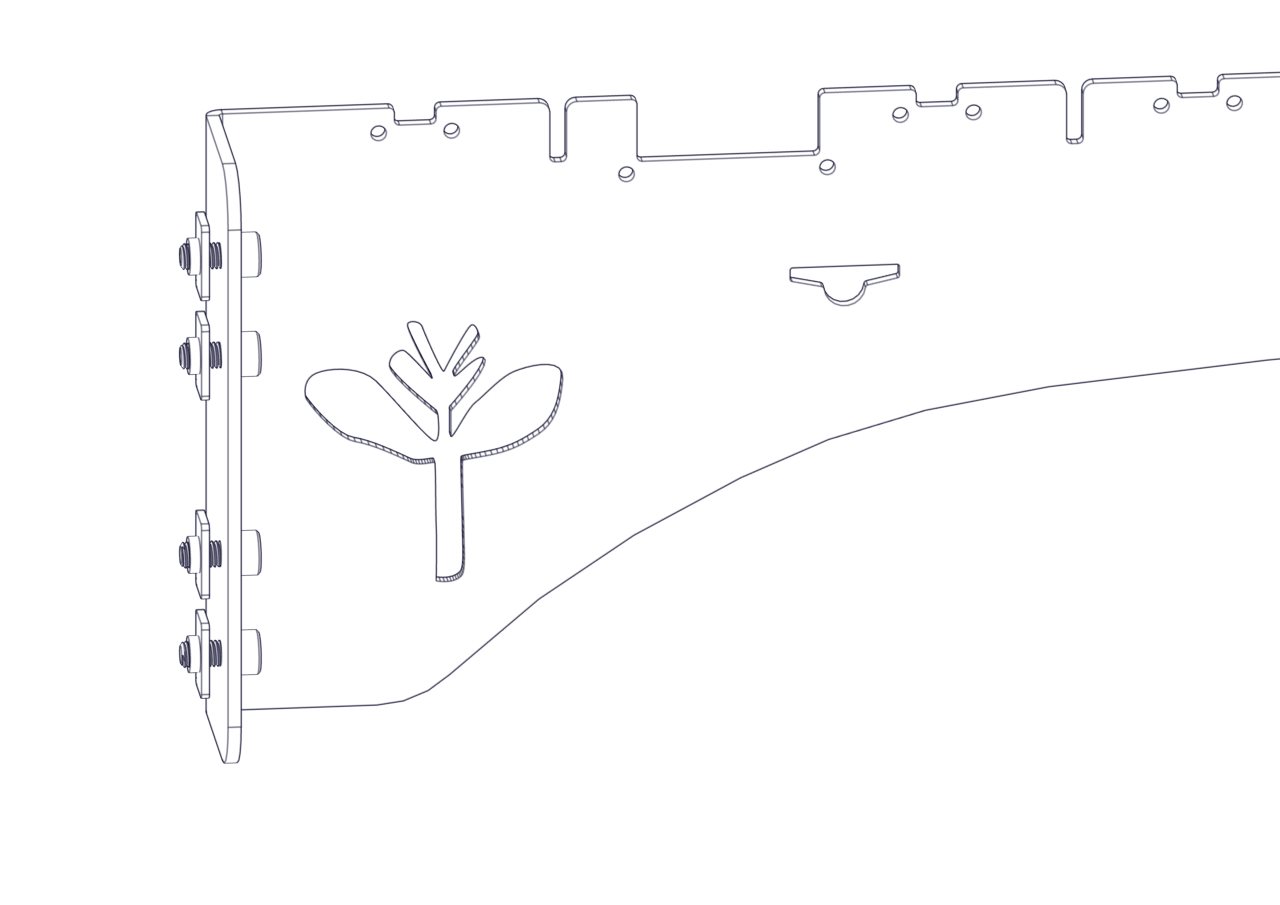

2. Push the bolts through the inner face of the short side of the bracket and thread a channel nut to the back of each bolt. Only thread partially as you will need to slide them into 2020 extrusion later.
3. Repeat for the rest of the shelf brackets.
