Perform this step on a flat surface so that the greenhouse goes together square.
Parts
- S16.FOAM.VENT.PCK
- 1 x rear assembly - step - 04
- 2 x side assemblies - step - 03
- 1 x 2060.DB (Door bottom)
Process

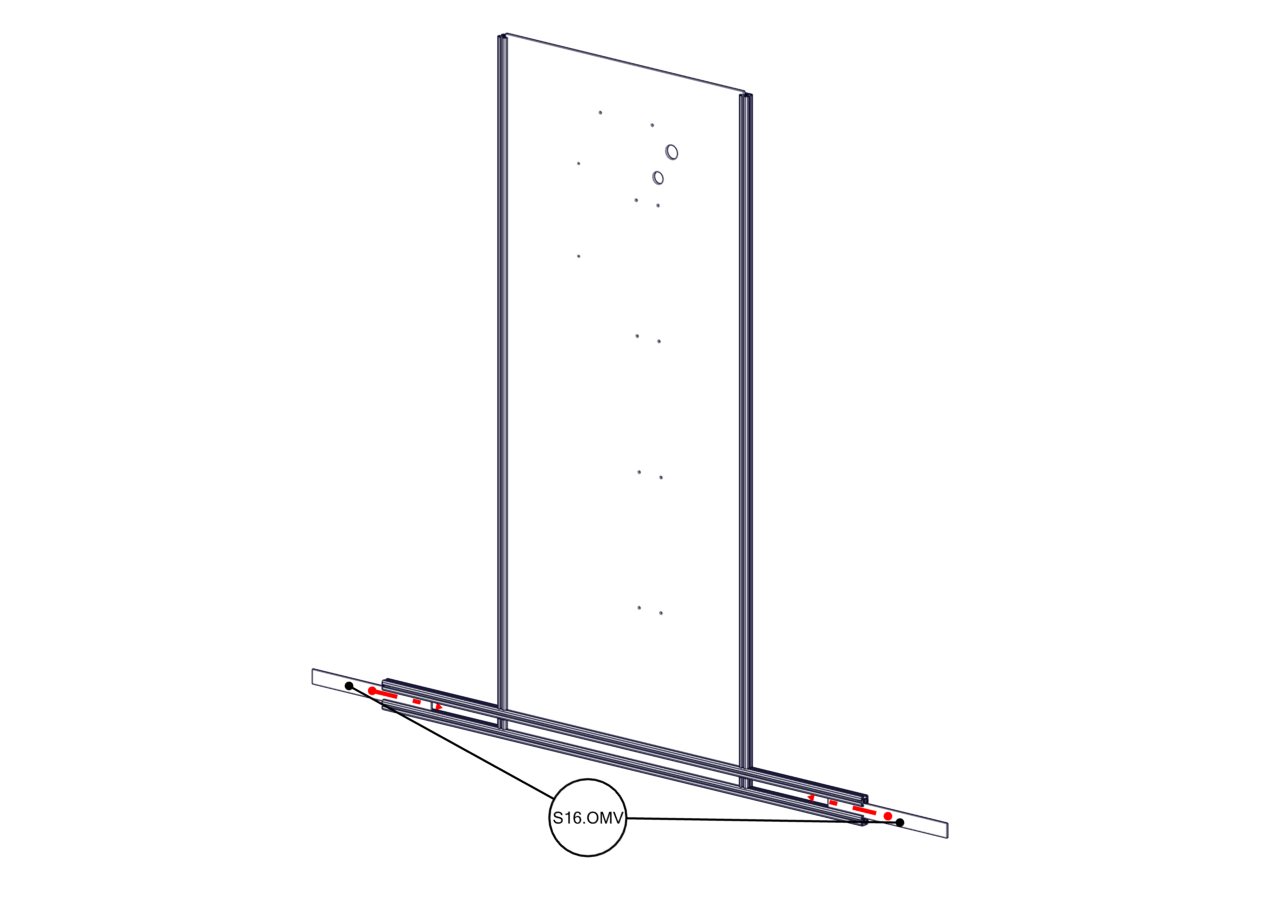

1. Slot the shorter lengths that were with the S16.FOAM.VENT.PCK into the open slots at the bottom of the rear assembly.

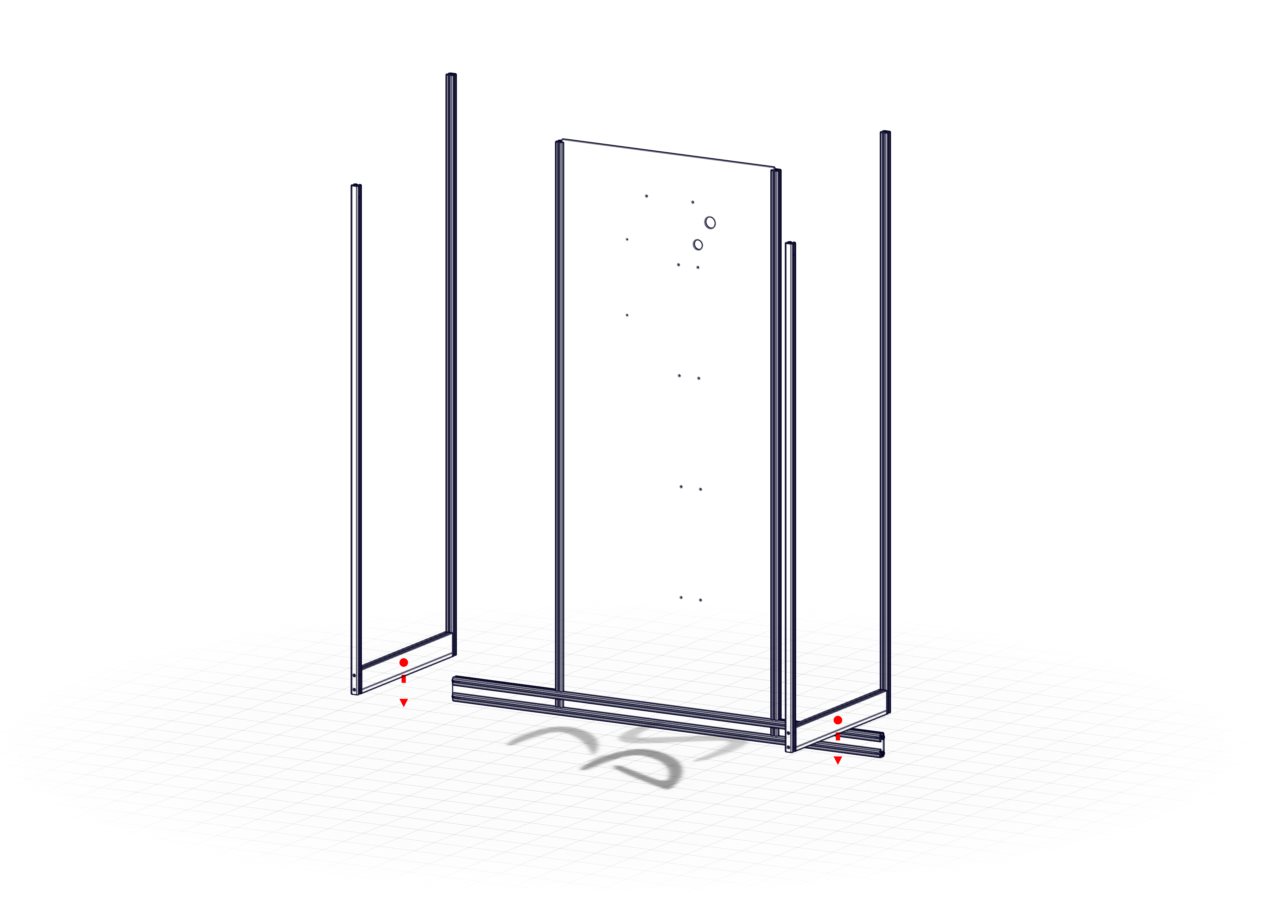

2. Slot the side assemblies from step 3 over the rear panel assembly and tighten.

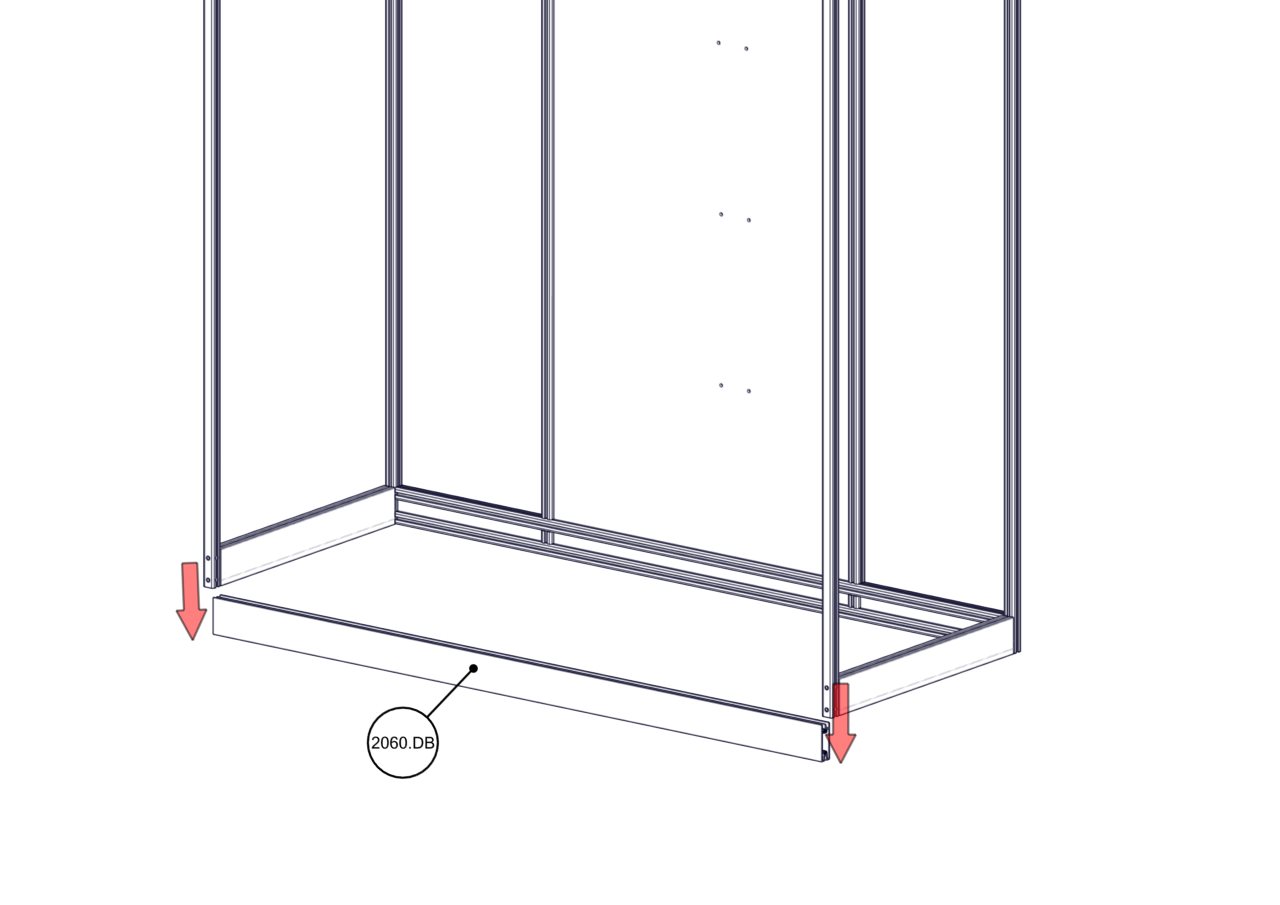

3. Place 2060.DB on the floor with the double channel facing upwards.
4. Slot the S16 frame over the open screws on either side and tighten.
