Parts list
- 1 x 2020.RLB (Rear lower brace)
- 1 x 2020.RB (Rear brace)
- 2 x 2020.RM (Rear middle upright)
- 2 x M5X70.C (70mm bolt)
- 2 x 20mm.SP (20mm spacer)
- 1 x S16.FOAM.VENT.PCK
- 1 x S16.RCP (Rear centre panel)
- 6 x M5.CN (Channel nuts)
- 2 x ATP (Anti Twist Plate)
- 6 x M5X8.B button head bolts
Process

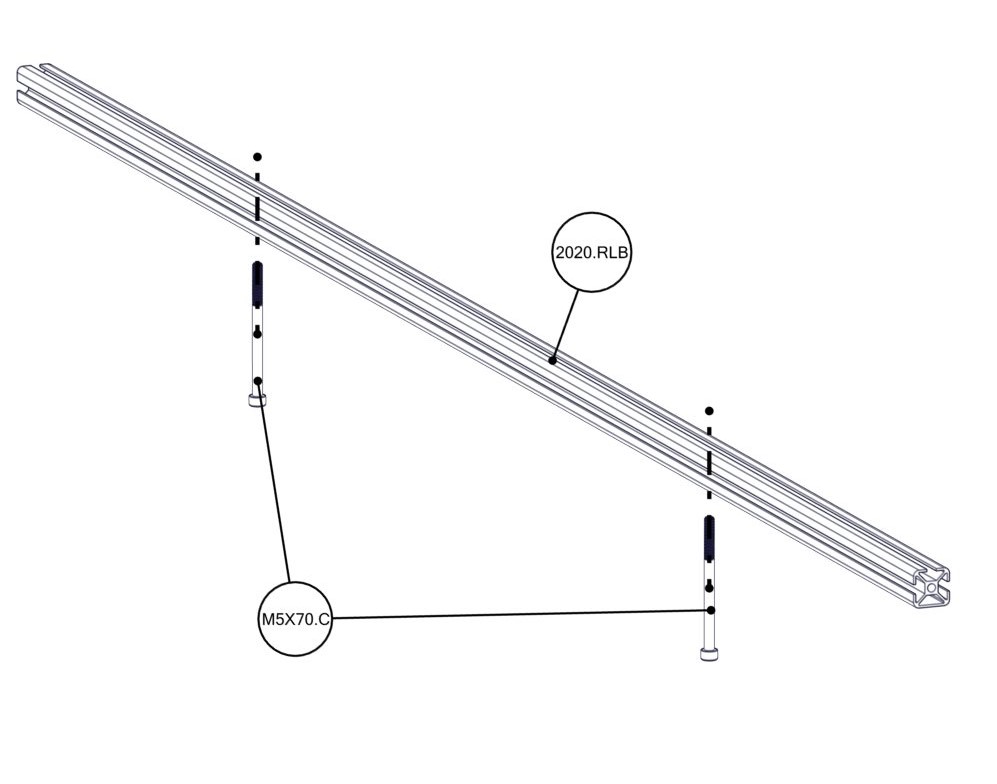

1. Place rear lower brace (2020.RLB) down flat on its side, then slide the M5x70 bolts though each of the large holes in the closed face.

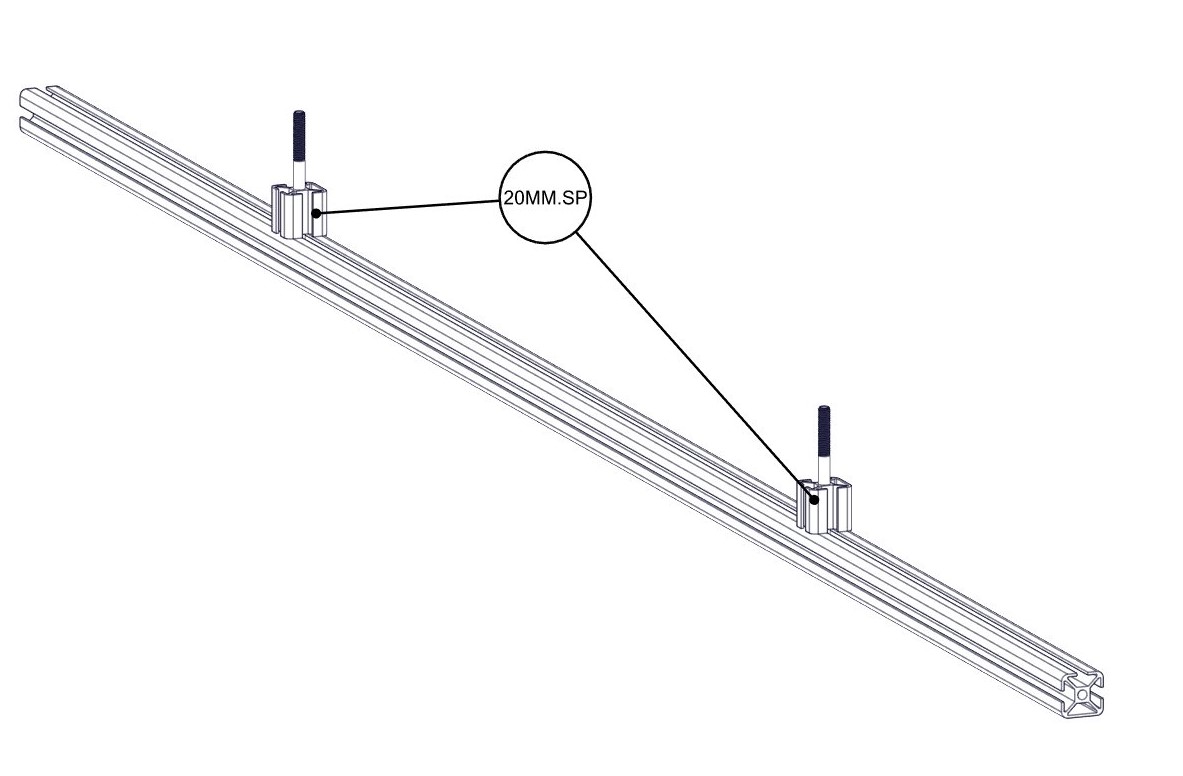

2. Slide the 20mm spacers (20MM.SP) over the exposed side of the M5x70 bolts.

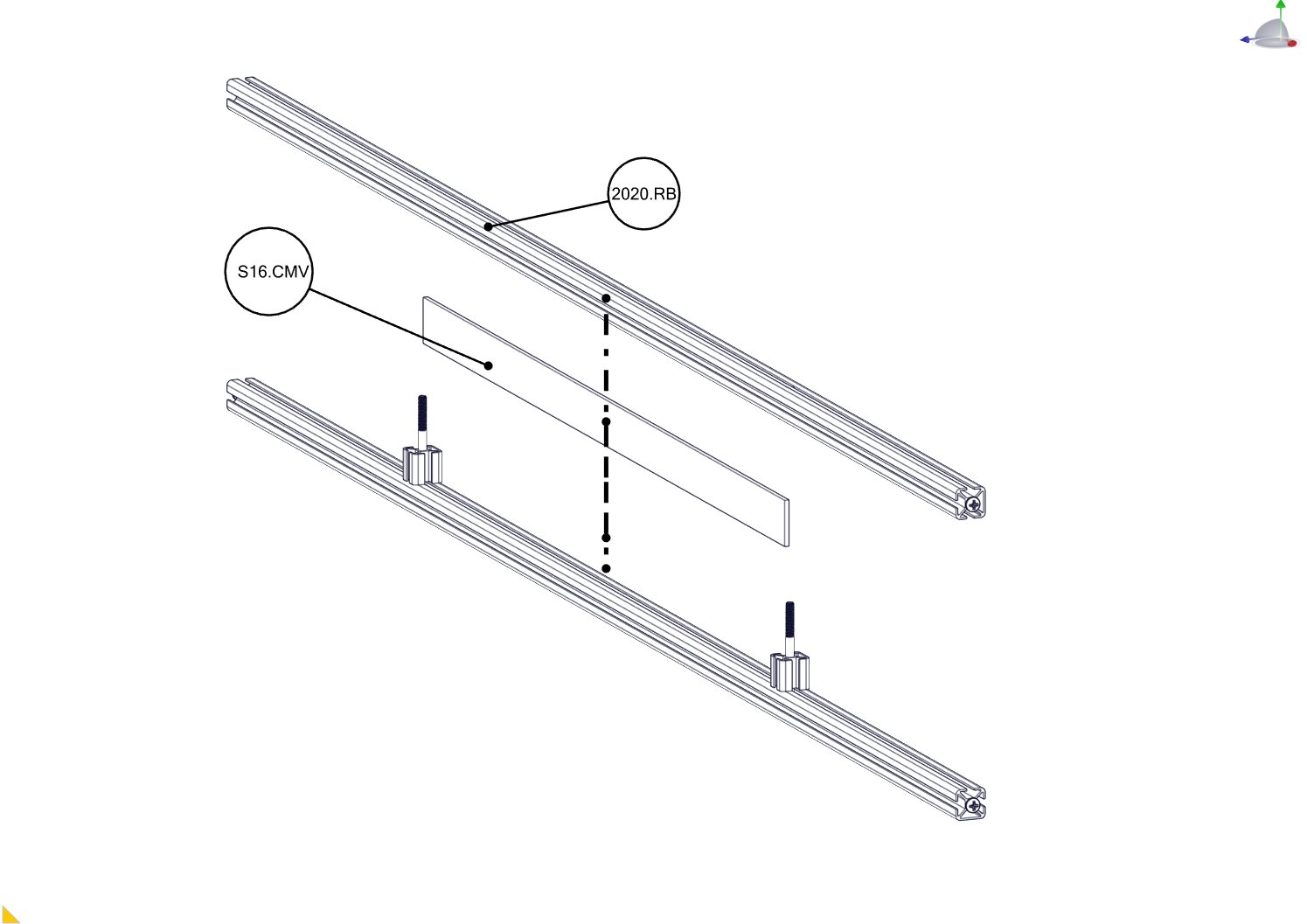

3. Open up S16.FOAM.VENT.PCK and slot the longest length with the slots cut out in-between the 2020 spacers (Keep the shorter lengths safe as you will need them in the next step), then slide one rear brace (2020.RB) over the exposed m5x70 bolts. Pay attention to the orientation of 2020.RB : Ensure the closed face of the spacer matches that of 2020.RB

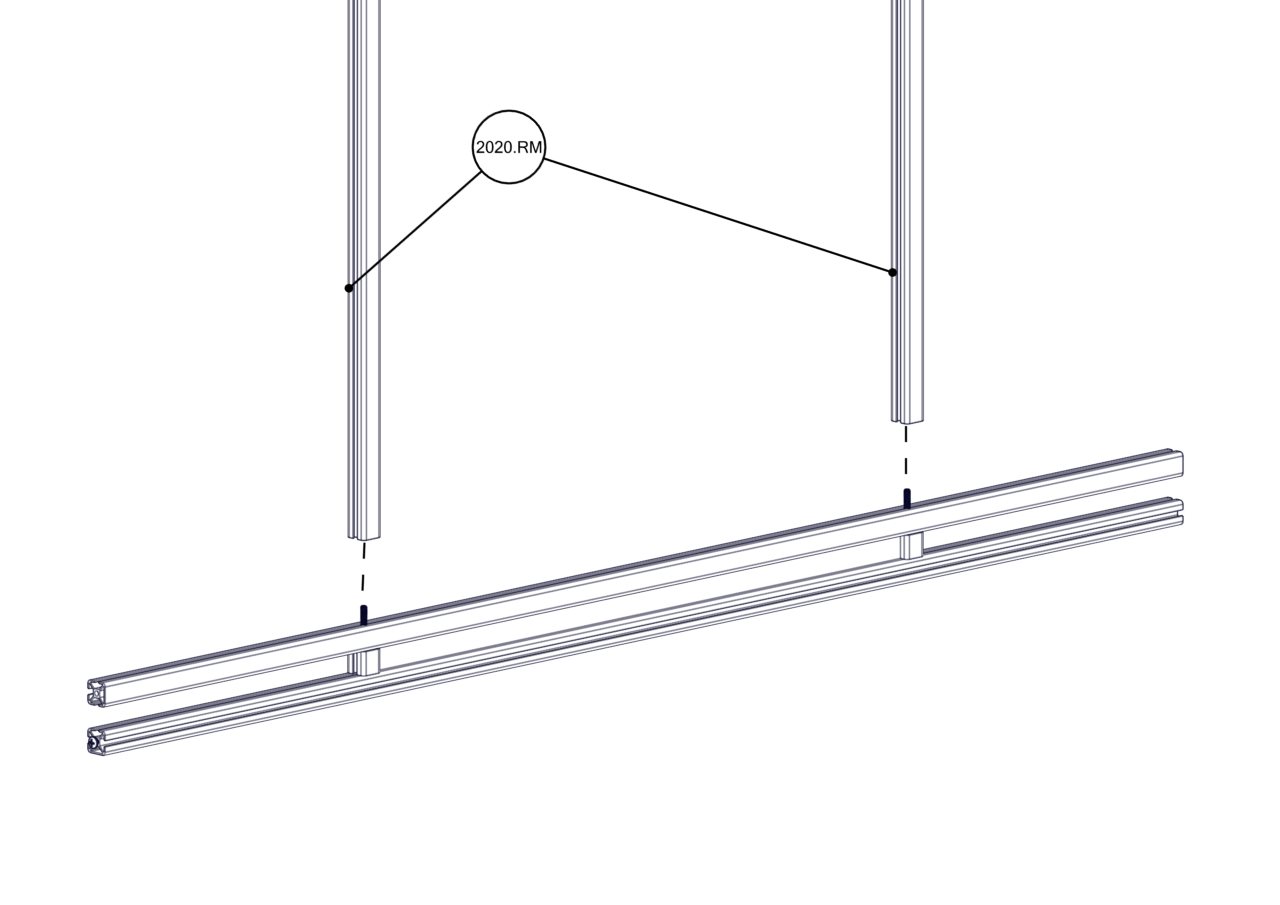

4. Line each rear middle upright (2020.RM) up with the M5x70 bolts, matching the closed faces then bolt them in place using the 4mm allen key. Laying the frame on a flat surface helps with alignment.

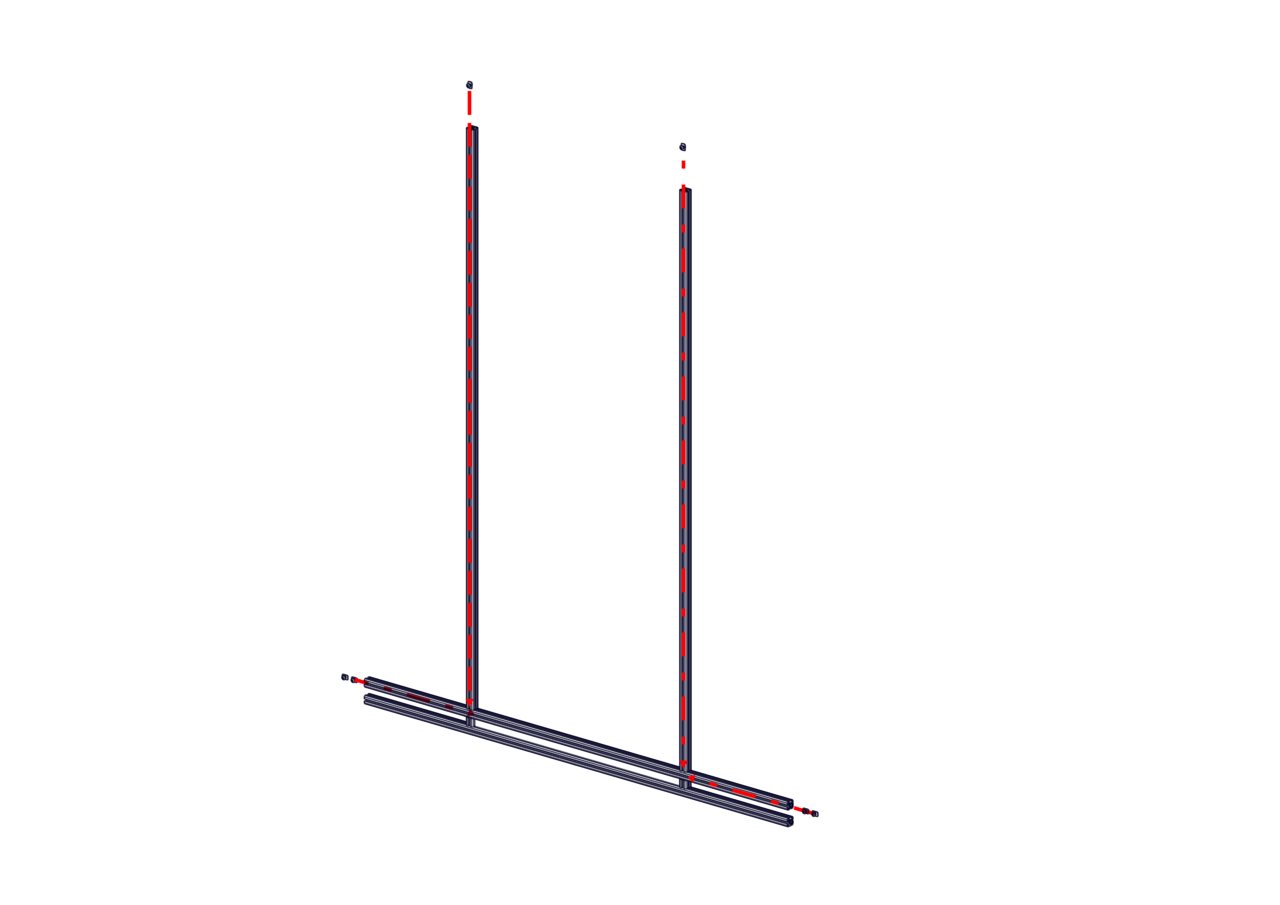

5. Slide four M5 channel nuts (M5.CN) into open face of 2020.RB and one into each 2020.RM.
6. Loosely fit M5x8 bolts into the channel nuts.

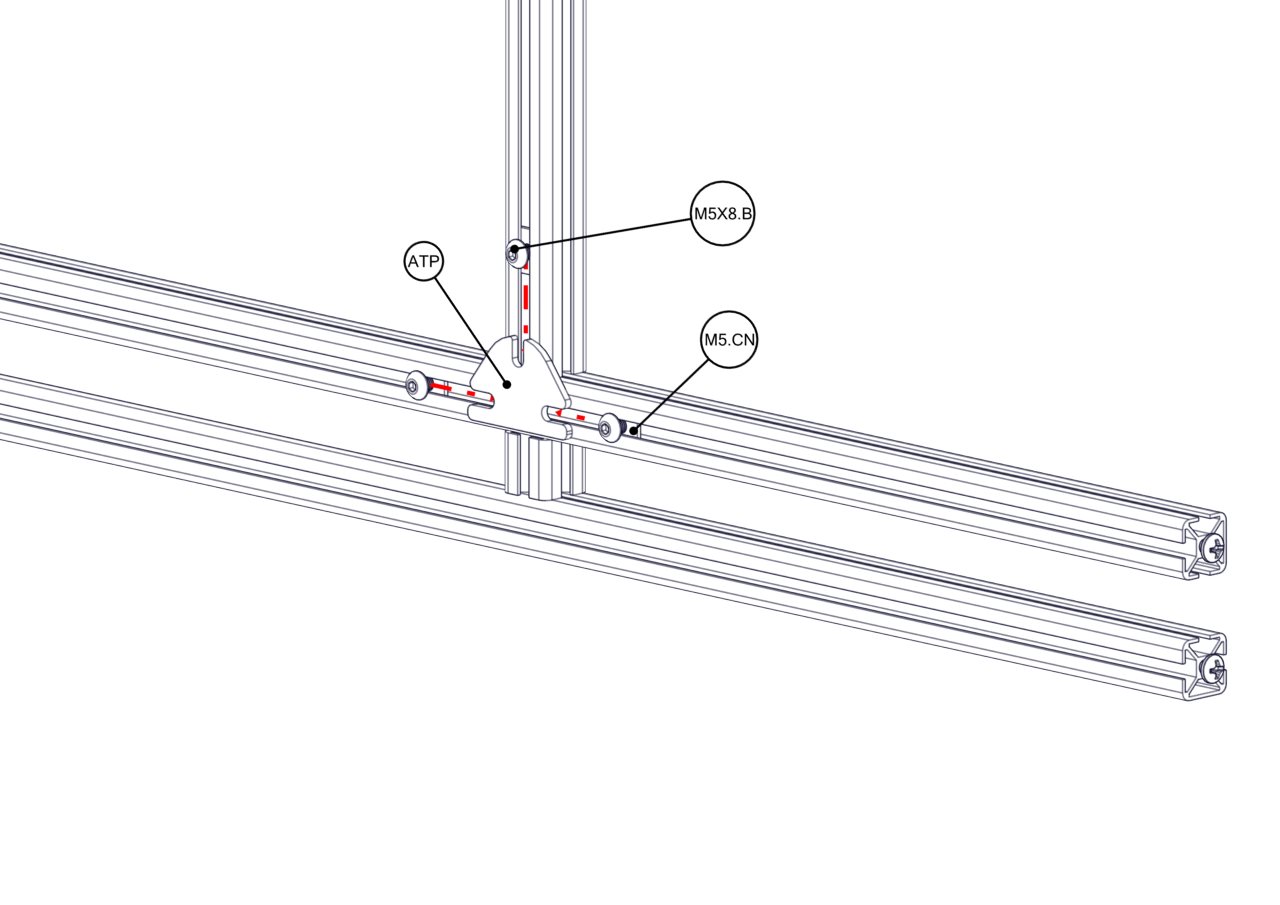

7. Secure the anti-twist plates at the joints of the frame as shown below and tighten
.

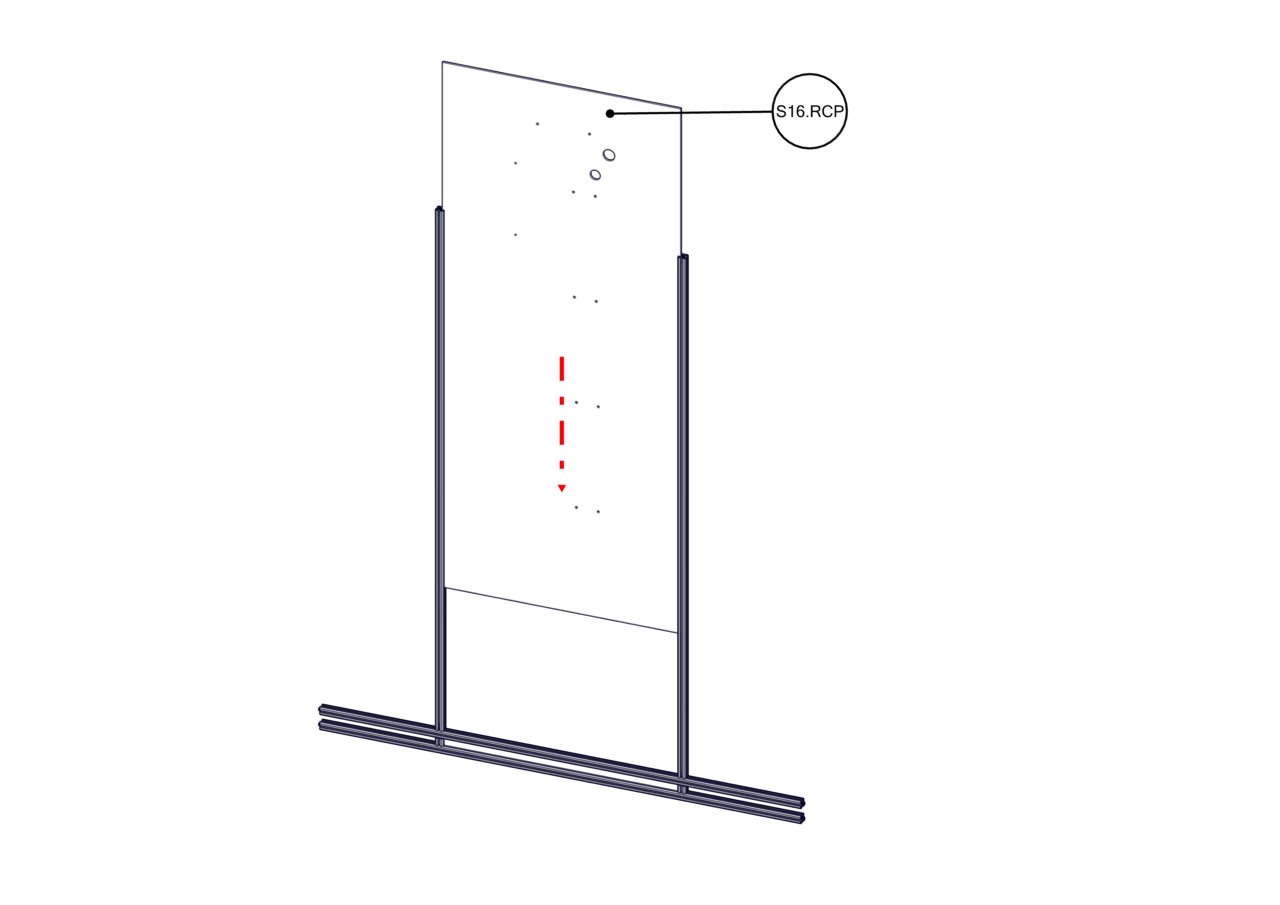

8. Insert the black rear centre panel (S16.RCP) into slots between the rear uprights (2020.RM).
Pay attention to the orientation of the holes of rear centre panel.
