Parts list
- 2 x 2060.BY (45cm large aluminium)
- 2 x 2020.RS (rear side upright)
- 2 x 2020.FU (front upright)
Process
- Place the large extrusion (2060.BY) onto the floor or table, making sure the single channel is facing upwards.

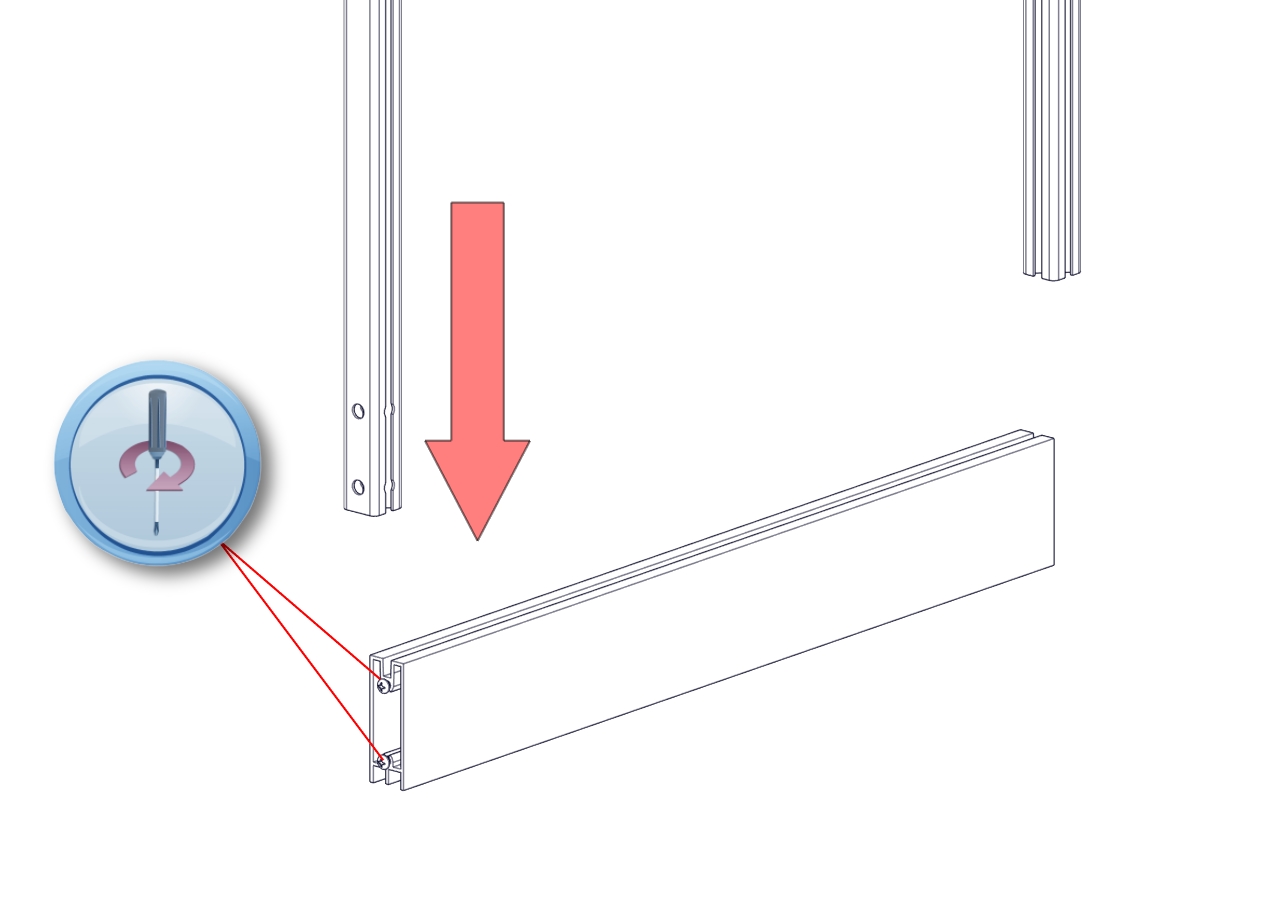

- Slide the front upright (2020.FU) with the closed face pointing away from 2060.BY (see diagram) over the two pre-installed screws or bolts.
- Tighten through the two holes.
- Slide the rear side upright (2020.RS), closed face out onto 2060.BY.
- Tighten the screws/bolts through the holes.
Follow steps again for the second side assembly.
