Parts
- 2 x V2S.LP (lid prop)
- 2 x M5X16.B (16mm bolts)
- 2 x M5.RW (plastic spacers)
- 2 x M5.PW (penny washer)
- 2 x M5.PHN (plastic handle nuts)
Process
Both sides of the lid have a prop, which is used to hold the lid open, and also hold the lid closed when the plastic handle nut (M5.PHN) is screwed tight.
The lid already has channel nuts fitted.
Start by securing the top of the prop with a 16mm bolt, and a plastic spacer between the prop and the lid. Make sure the slot of the prop goes over the stud you fitted to the top side assembly.

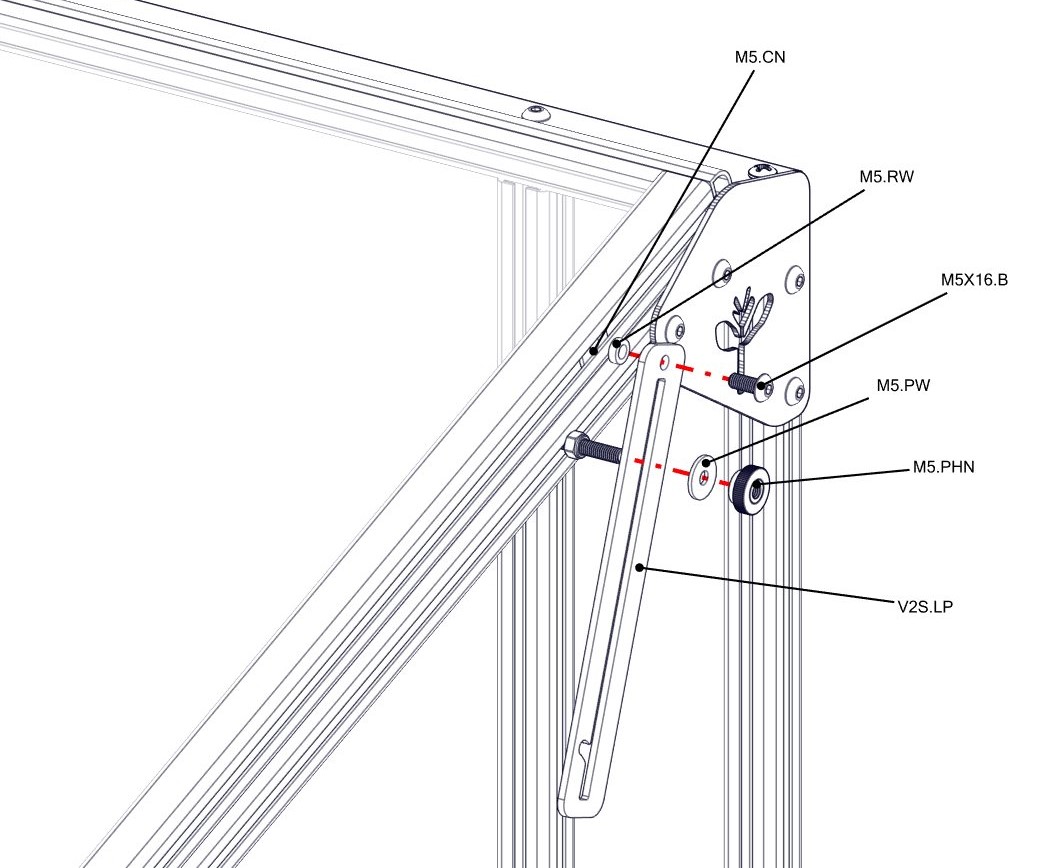

Add the penny washer and handle nut as shown below.
Don't tighten yet.

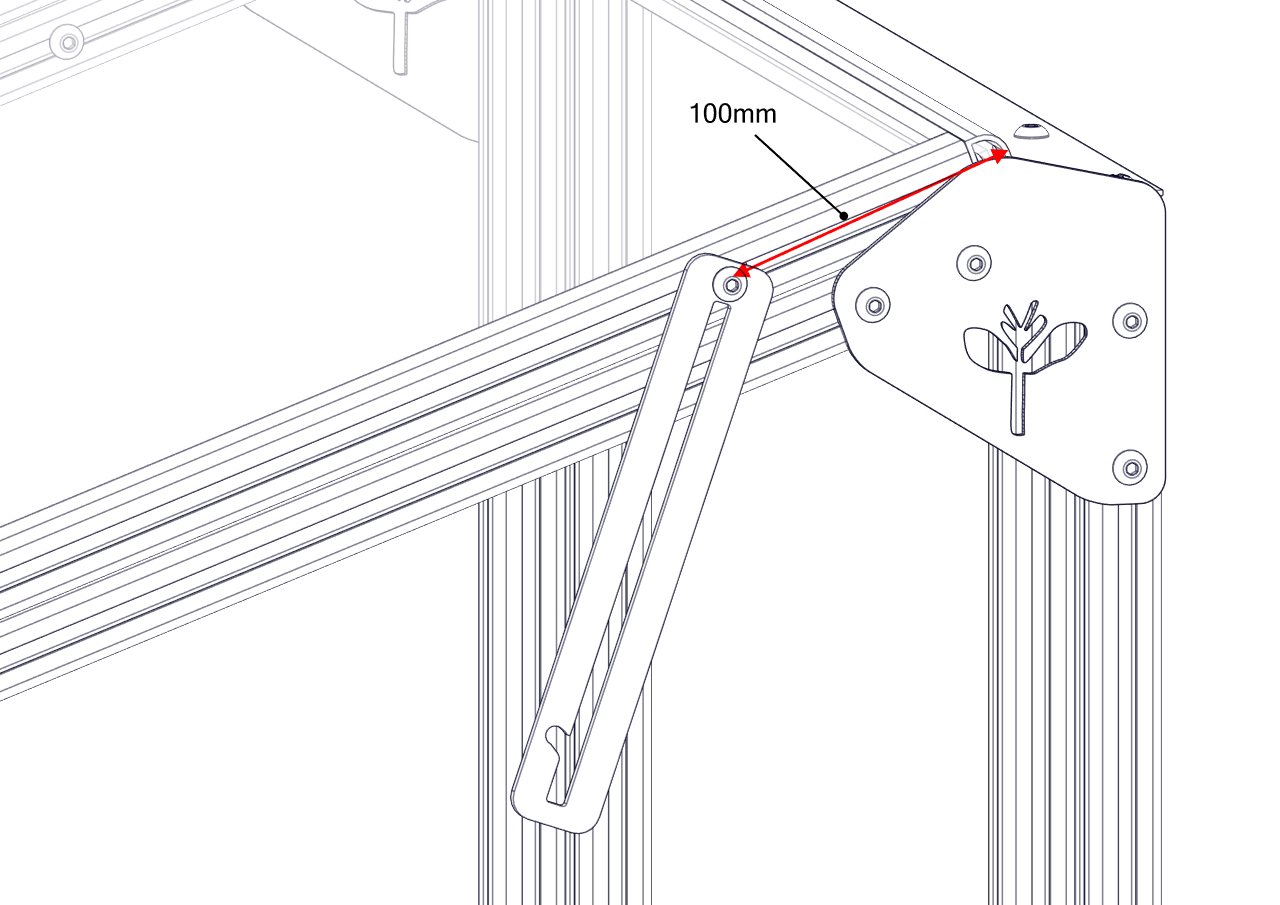

Slide the channel nut down so the top of the prop is 100mm (10cm / 4") from the rear of the lid, as shown below:
Tighten the 16mm bolt so that the channel nut locks into the channel.
Repeat for the other side.
