Parts
- 1 x SP.END.L
- 1 x SP.END.R
- 6 x M5x8 button head bolts
- 6 x M5 channel nuts
- 2 x M5x40 button head bolts
- 2 x M5 Nyloc nuts
Process
Build up the top side assemblies as follows:

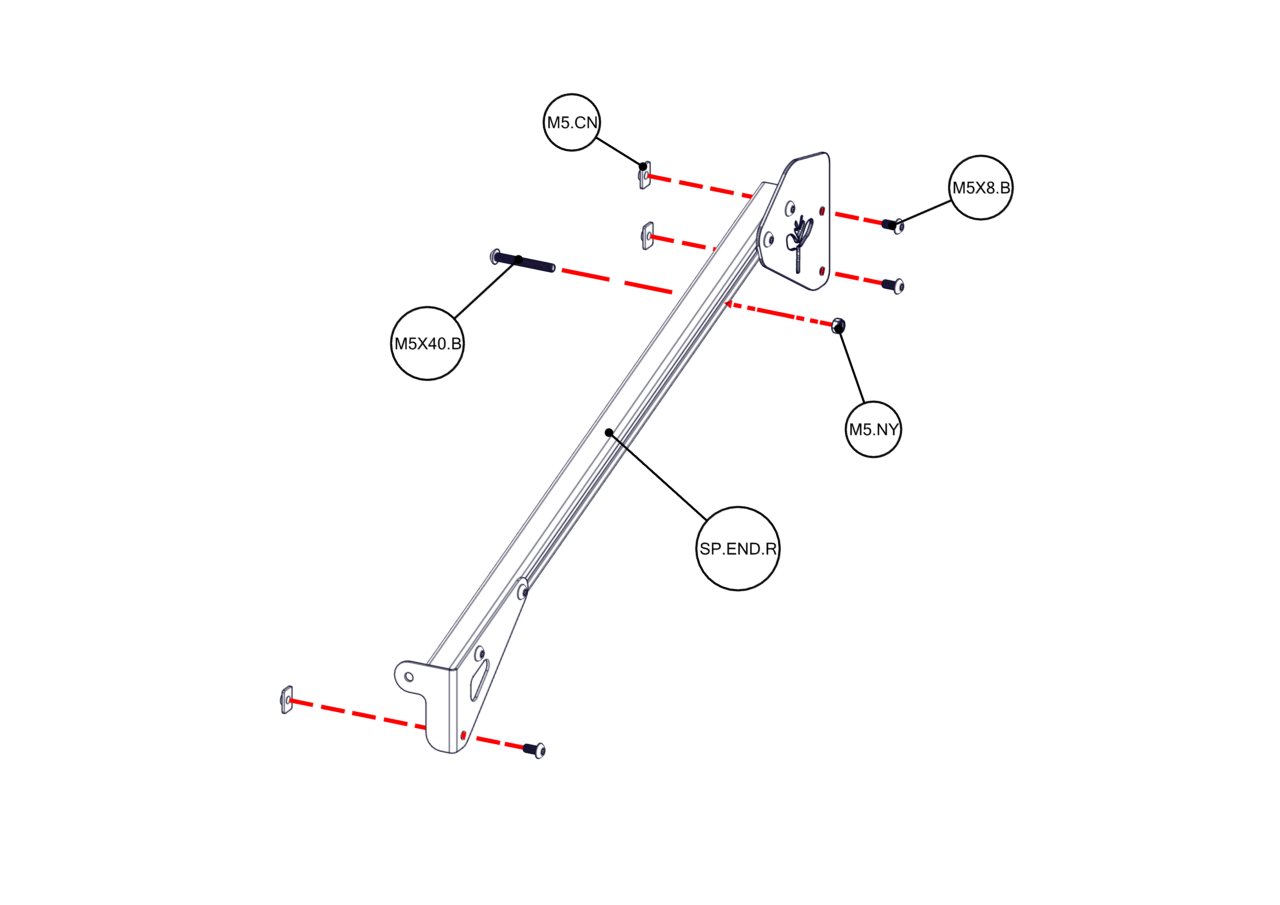

- Slot two M5x8 bolts through the spare holes of the flat plate, in the direction shown in the drawing below.
- Loosely fit a channel nut to each bolt on the inside.
- Slide one M5x8 bolt through the outside face of the bent bracket.
- Loosely fit a channel nut to the inside.
- Repeat for other assembly.
