Parts
- 2 x V2S.SA3 - Side glazing panels.
- 6.5m - V2S.GST - Rubber glazing trim.
Process
Remove the protective film from both sides of the perimeter of the side glazing panels.

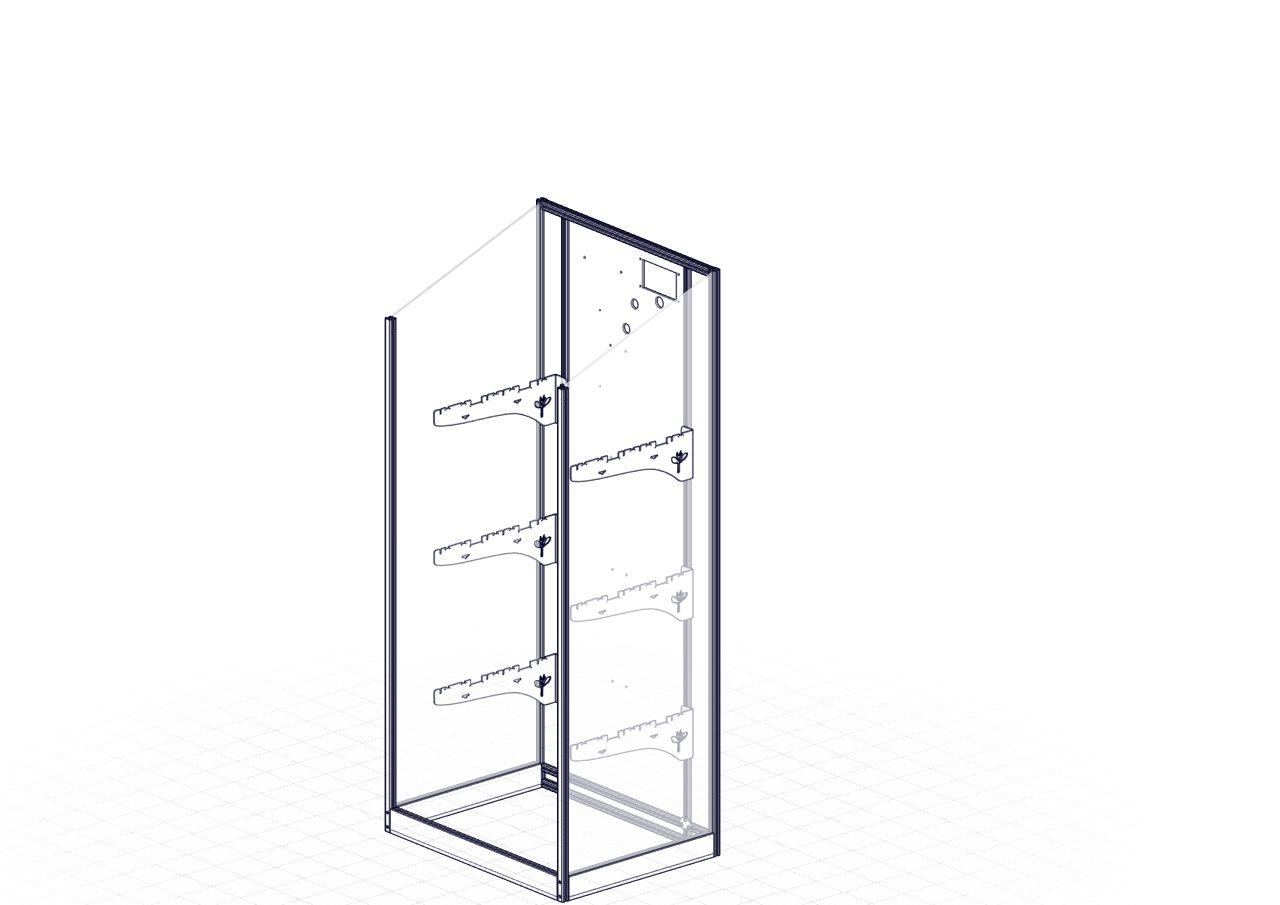

Slide the clear side panels into the open slots of the side assemblies, the angled side matches the front and back uprights (see image).

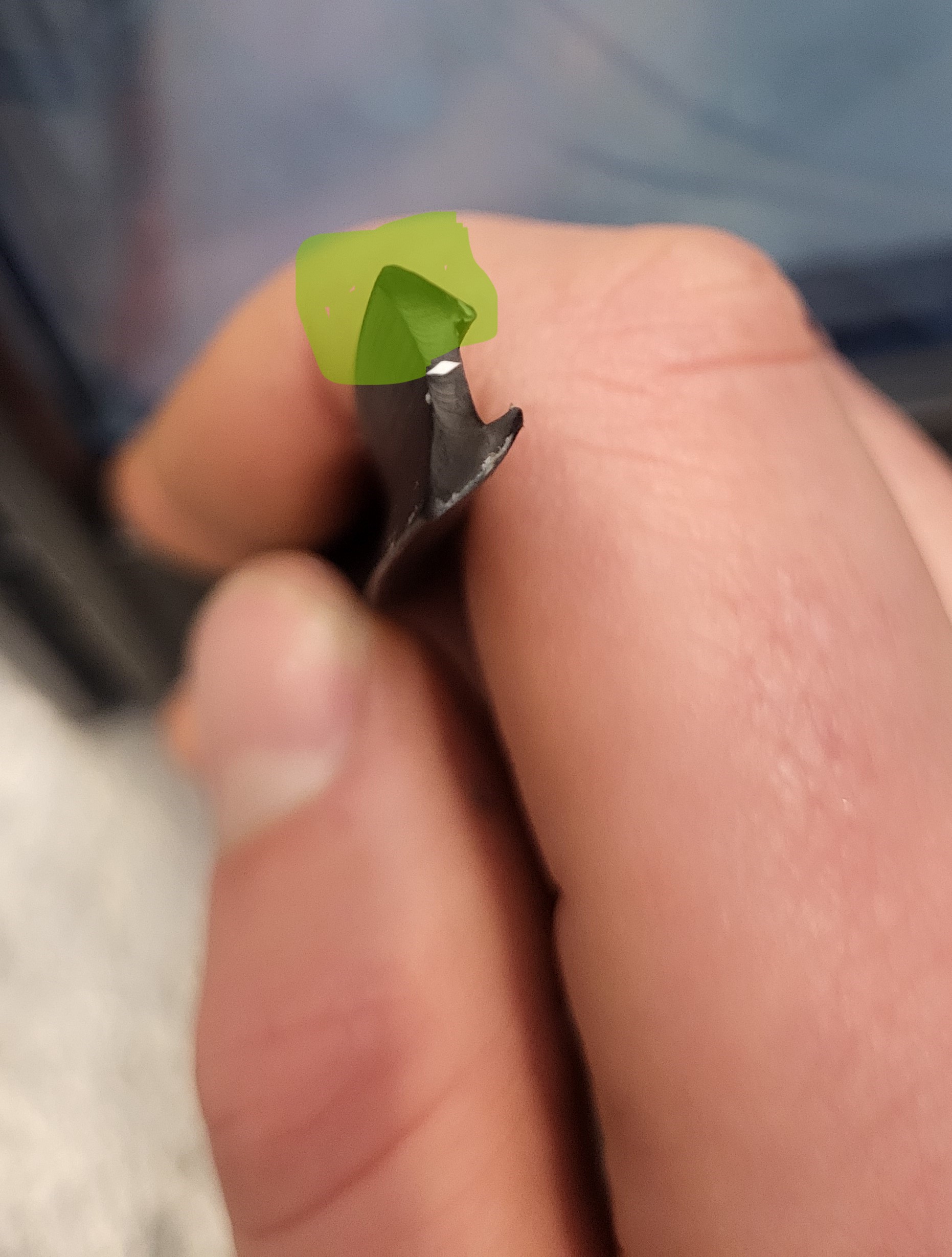

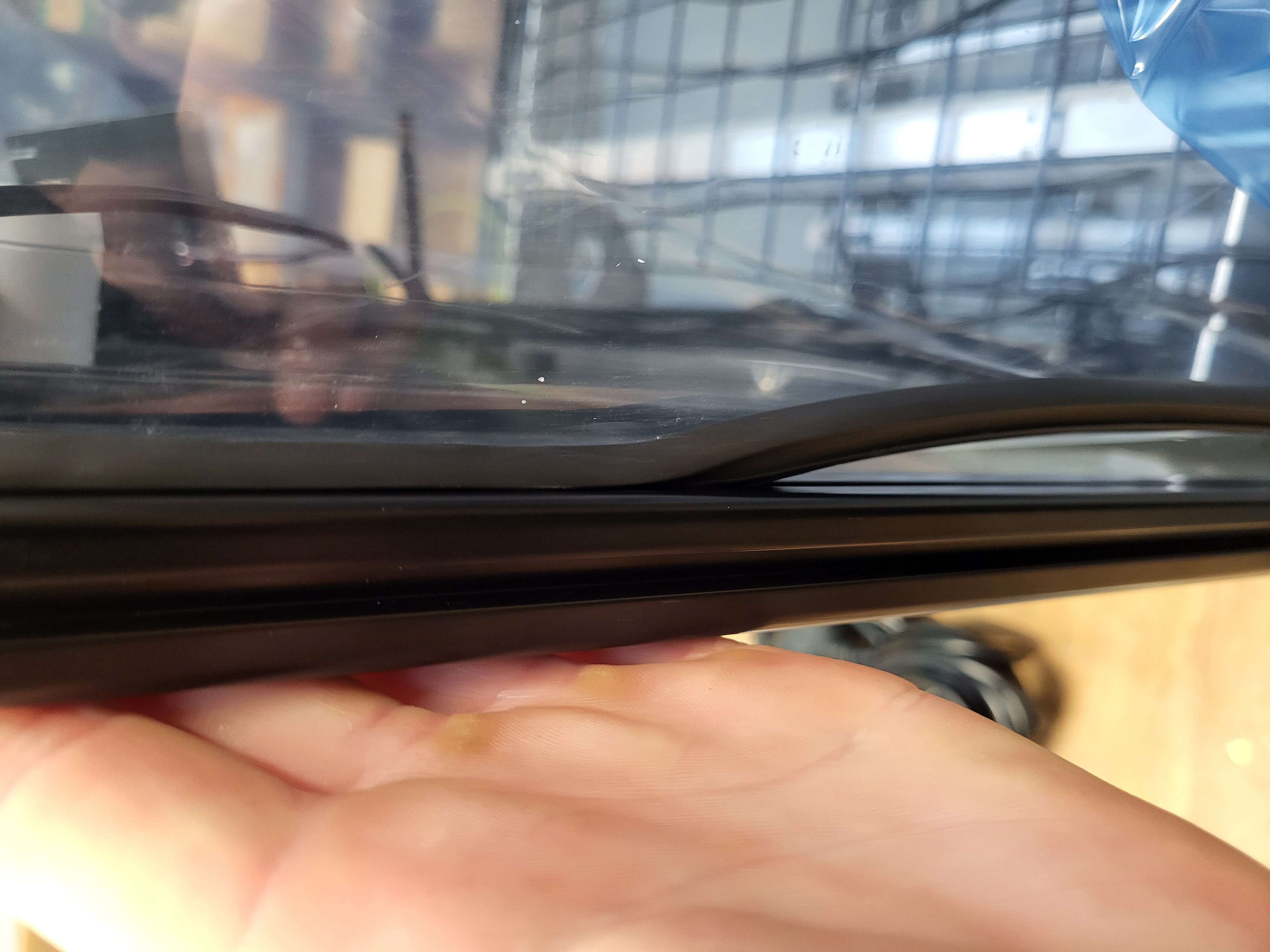

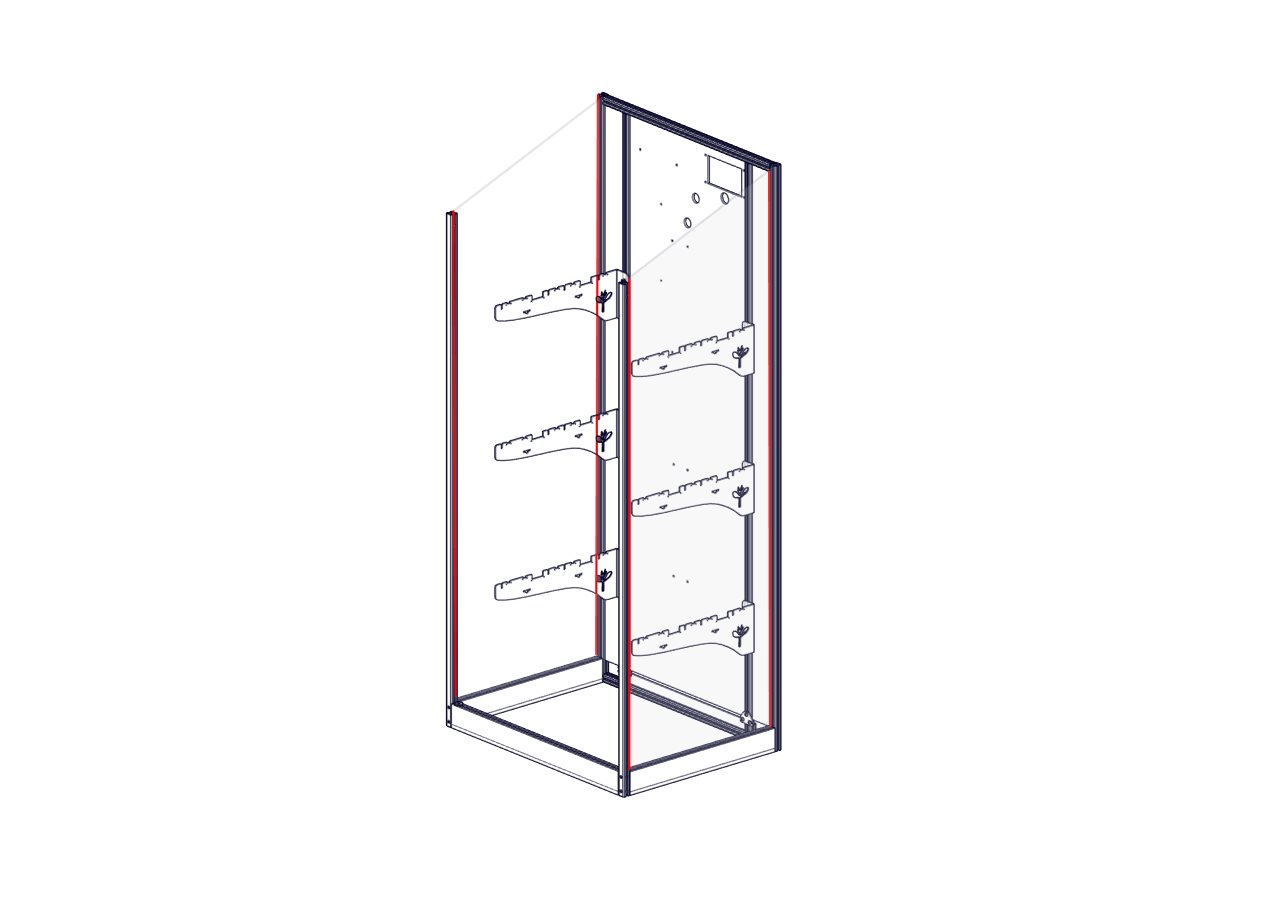

Fit the glazing rubber trim to the upright edges as outlined in red below. The narrow short edge, outlined in green, slots between the glazing surface and the outer edge of the frame channel. Start at one end and work the seal edge in ensuring the seal trim isn't bunched up. Use some sharp scissors to cut the length required.
