Parts
- 2 x S8.ROP (rear outer panels, black foam) - A
- 1 x 2020.RX1 (rear top bar) - B
Process
- Slide the two rear outer panels (S8.ROP) into the two open slots in the rear panel making sure they are fully seated into the base by pressing firmly downwards.

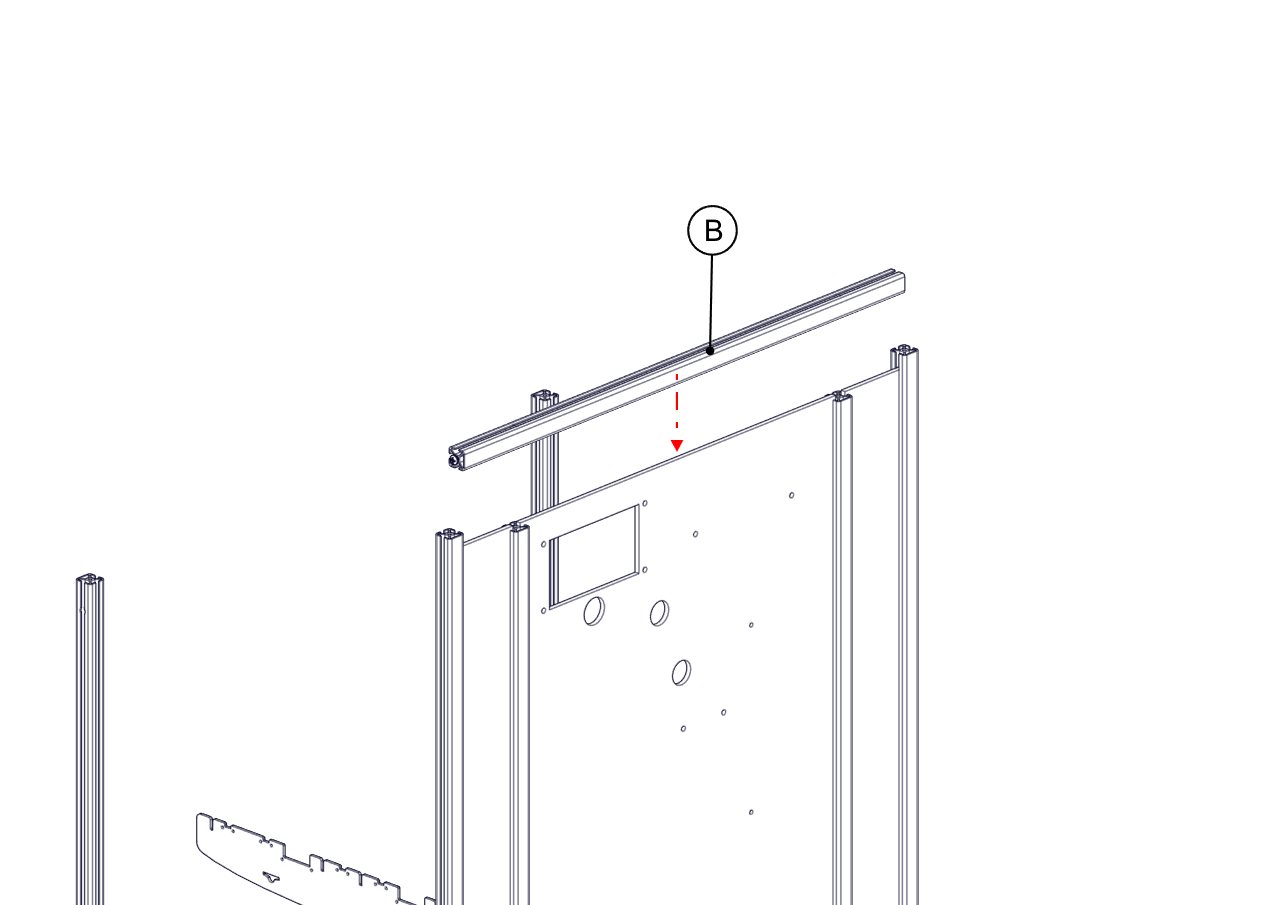

- Slide the top bar (2020.RX1) down over the top of the rear panel, with the closed face at the rear of the greenhouse (matching the rear uprights).
- Tighten the bolts through the sides of the rear uprights.
