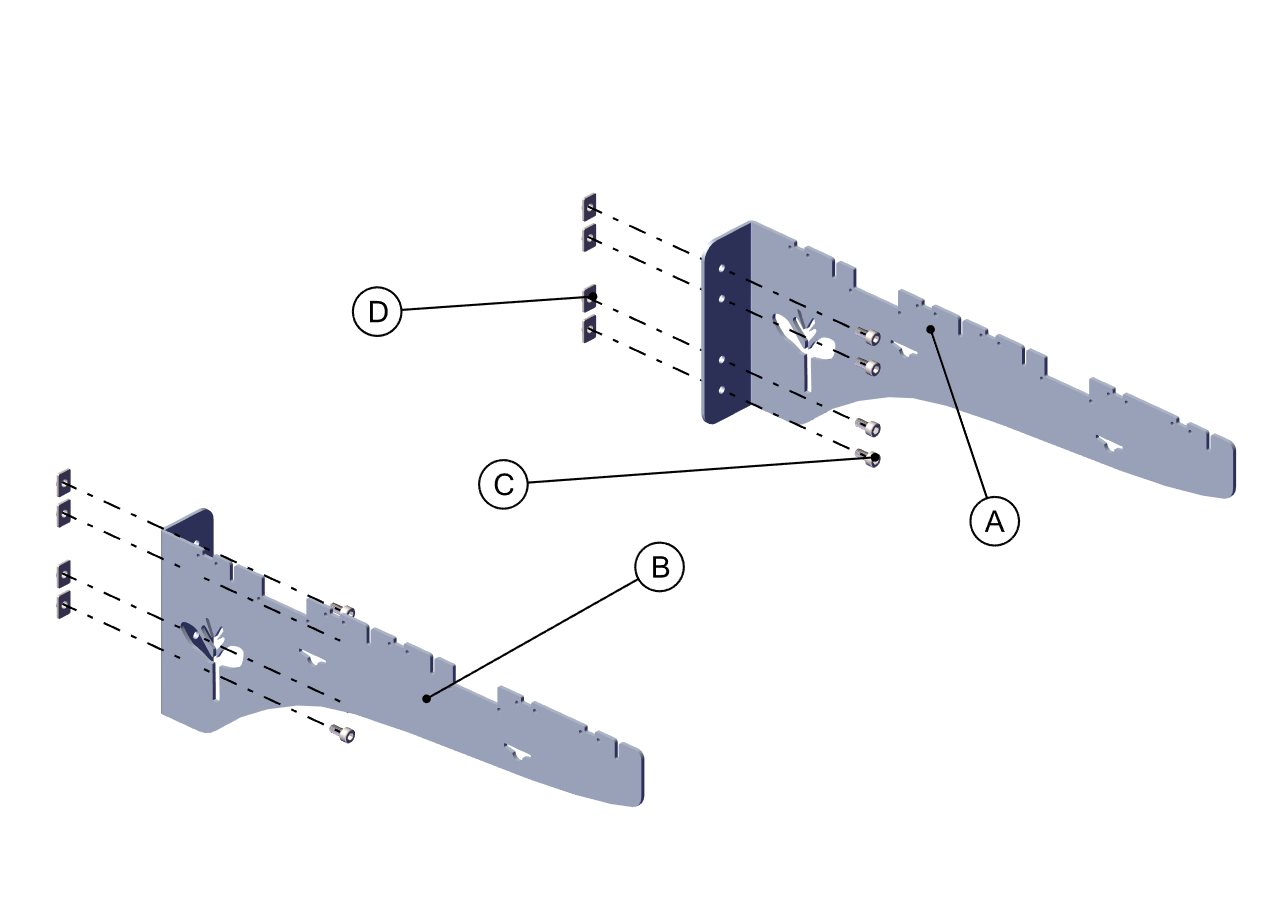

Parts
- 3 x Right shelf support brackets (A)
- 3 x Left shelf support brackets (B)
- 24 x M5x8 cap head bolts (C)
- 24 x M5 channel nuts (D)
Process
- For each bracket you will need four M5x8 and four M5 channel nuts per shelf bracket.

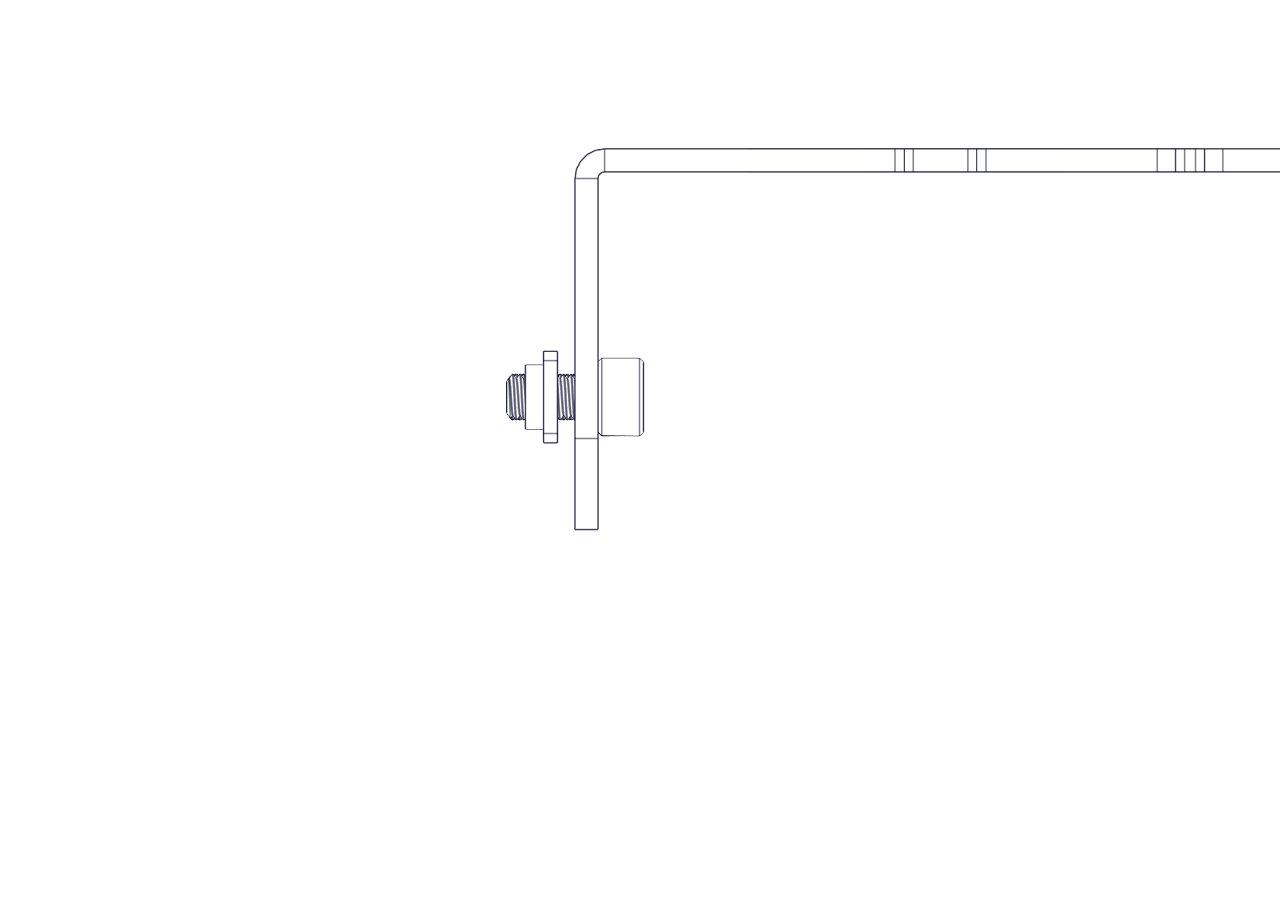

- Push the bolts through the smaller part of the bracket and fit a channel nut to the back of it.
- Don't tighten them too much as you will need to slide them into channels later.
- Follow for the rest of the shelf brackets.
