05 - Combine rear frame and side assemblies

Parts

• S8.FOAM.VENT.PCK
• Previous assemblies
• 1 x S8.RCP (rear centre panel; black foam)

Process

Do not do this in a windy location as the rear panel is unsupported at this stage.

1. Slide the small foam panels into the open slots in the bottom left and right corners of your rear panel.

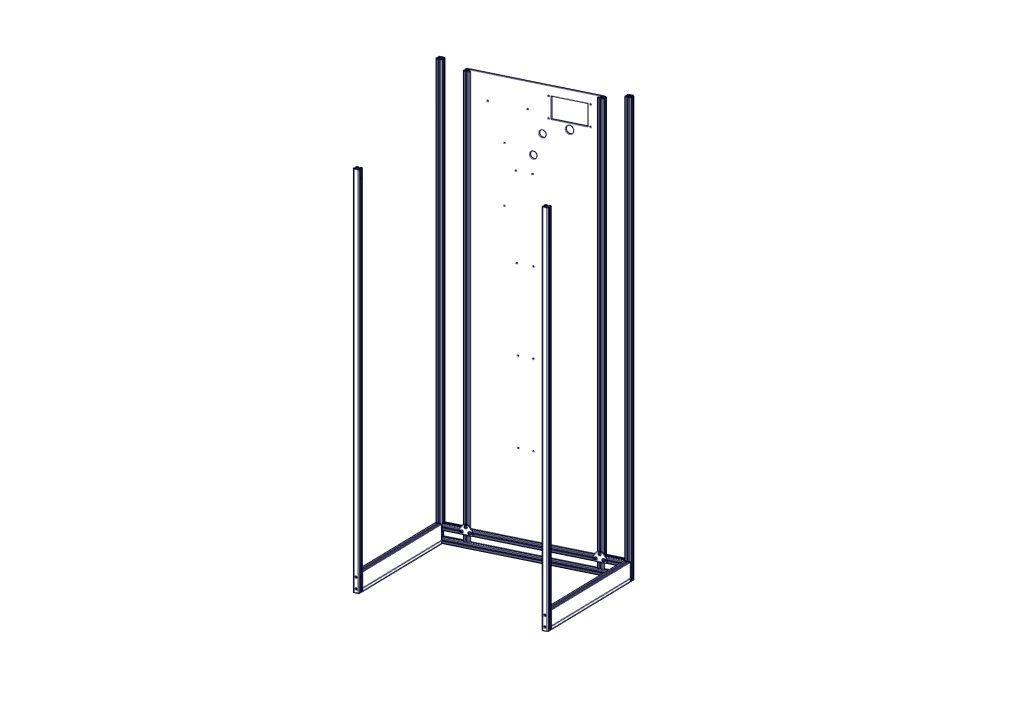

2. Slot the side assemblies you made earlier over screws in the sides of the rear frame from the previous step (see diagram).
3. Tighten with a screwdriver.

Finally, slide the rear panel foam (S8.RCP) down between the uprights (2020.RM), orientated as shown on the diagram above. Note that the large square hole is at the top right.
