Parts list
- 2 x 2060.BY (45cm, lower side)
- 2 x 2020.RS (rear side upright)
- 2 x 2020.FU (front upright)
Process

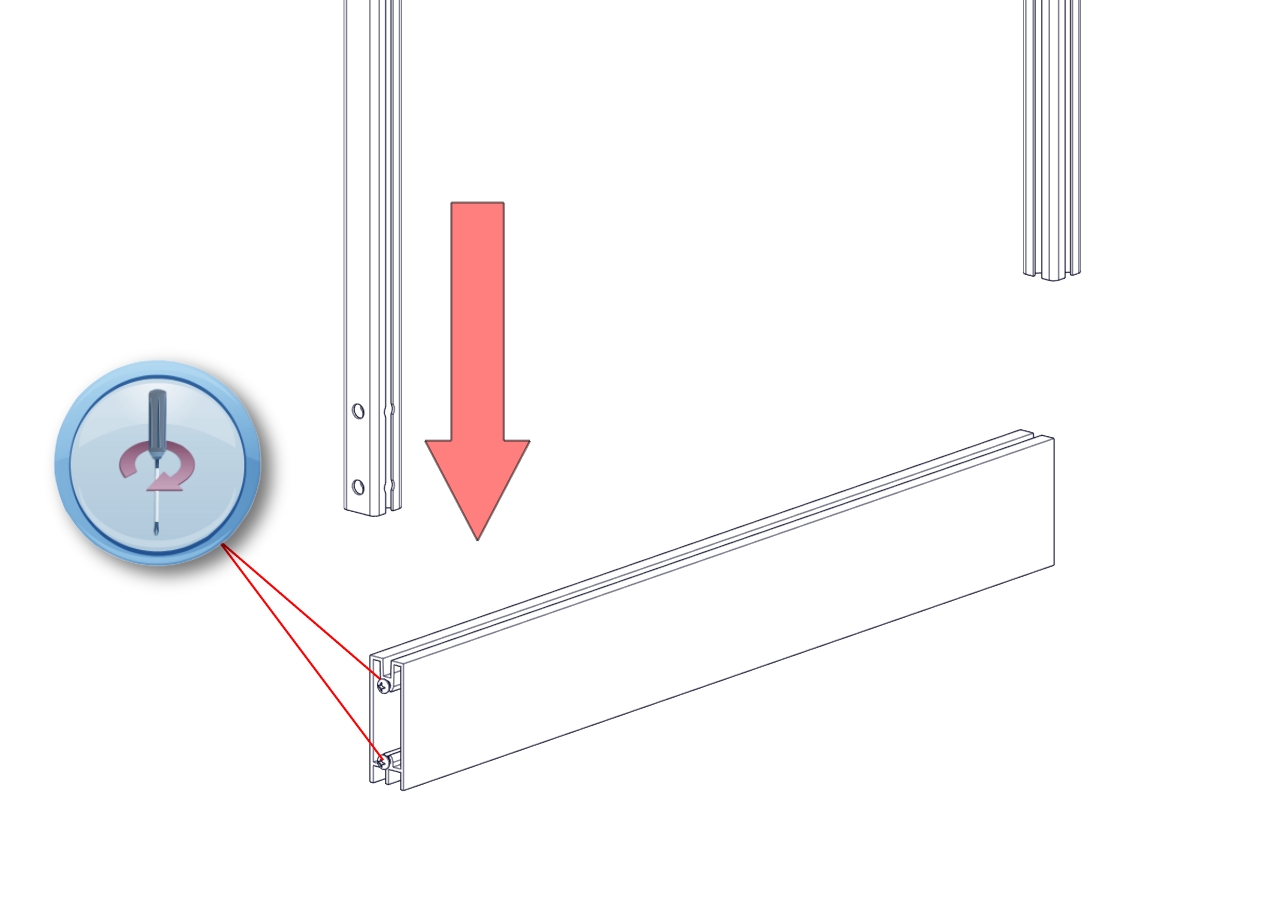

- Place 2060.BY onto the floor/table making sure the single channel is facing upwards.
- Position 2020.FU with the closed face to the left, opposite the screws (see diagram).
- Slide 2020.FU over the two pre-installed screws. Tighten through the two holes.
- Slide 2020.RS onto 2060.BY, with the closed face opposite the screws.
- Tighten the screws through the holes.
Follow the same steps for the second side assembly.
