The window kit is used for:
- Retaining more warmth in winter
- Preventing pets and kids from interfering!
You don't need to disassemble the system to fit the windows, but we recommend removing all plants to give you more space.
Fans are supplied with the full window kit to keep humidity levels down, and provide some air movement. Read about H-series fans here.
Parts required (per level)
Windows
- 1x front window
- 2x side window
- 1x rear window
- 4x window clip
- 4x screw
- 4x stud
Fans
- 1x fan short wire
- 1x fan long wire
- 1x humidity / temperature sensor
Process
Rear window
Screw the window clips to the rear of the system, using the pilot holes provided. [some early frame models require you to complete drilling the pilot holes, they are started for you on the front of the panel]
Place the rear window into these clips.
Side windows
Peel the cover off the tape and stick the windows in place, ensuring that you don't cover any peg or screw holes.
Front window

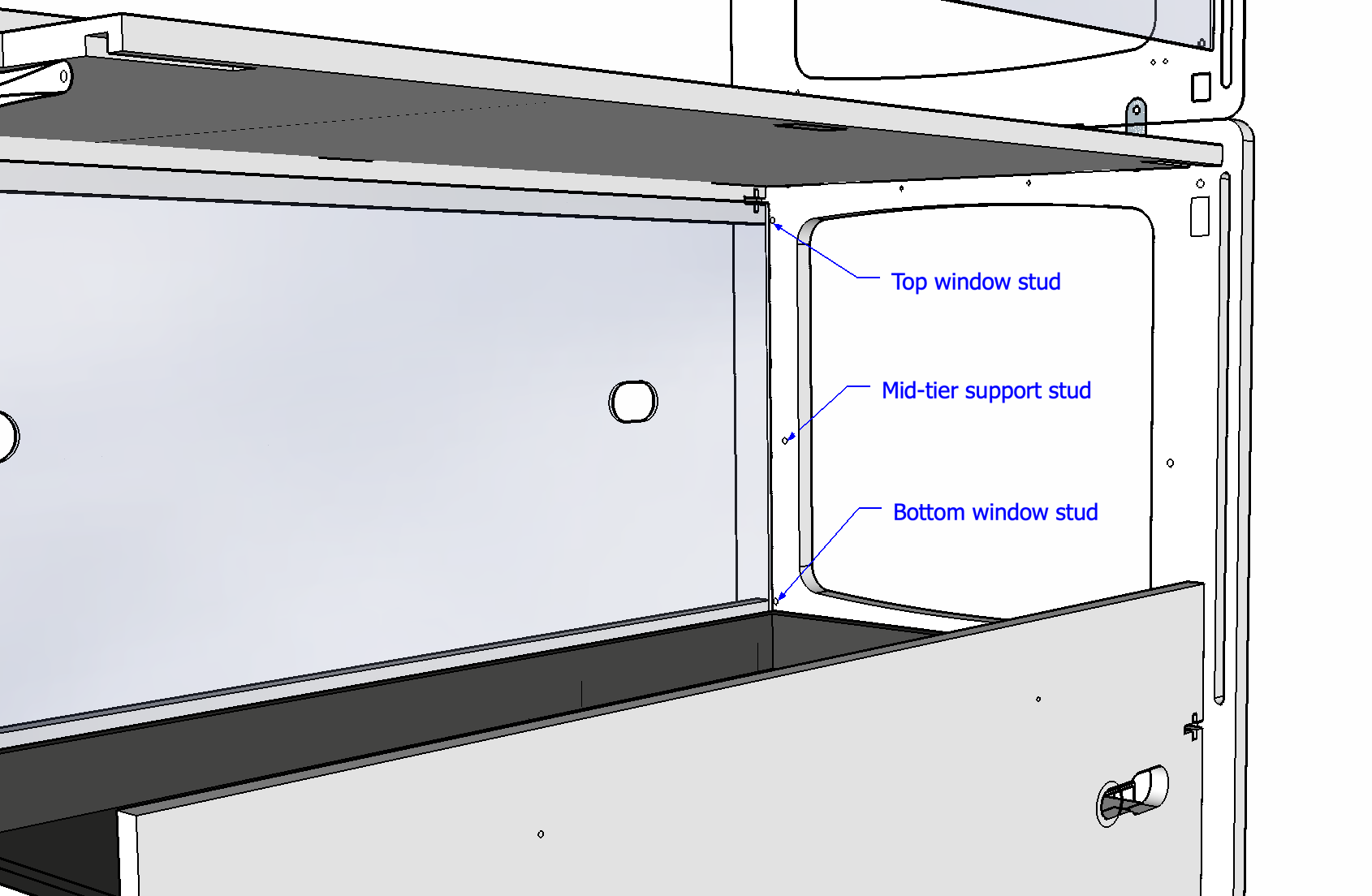

Fit a stud into each of the spare holes near the front of the side panels; two at the top and two at the bottom. Here is a cut-away drawing from the back of the system:
Slot the window in, between the studs and the frame panels:
- Slot the top of the window in.
- Lift the window up.
- Drop the window onto the tray support pegs.
