Parts required
- 2.5mm allen key
- 4x M4 * 12mm bolt
- 4x white plastic spacer
- 4x M4 spring washer
- 2x light bracket assembly
- 4x rubber O-ring
- 2x grow light tube (one pair)
- 1x short light power cable (yellow ends, 480mm)
Process
Fit the brackets

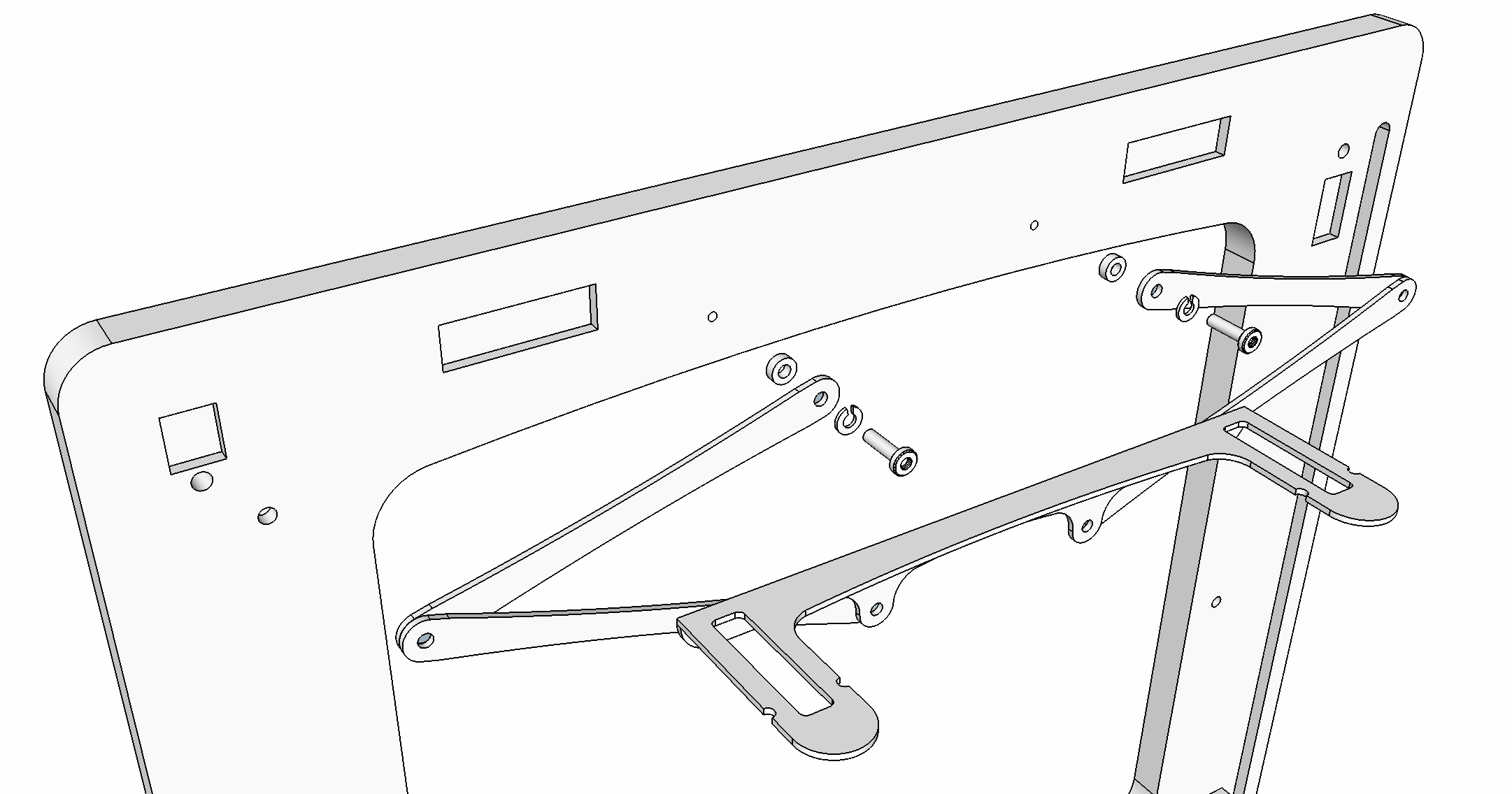

Bolt the light brackets to the inner sides of the side panels as shown in the drawing below. Fitting sequence:
- Bolt
- Spring washer
- Light bracket
- Spacer
- Side panel
Note that some models are fitted with light brackets which can take two pairs of light tubes for more growing capability.
Fit the O-rings
Slide 4x o-rings over each pair of lights.
Fit the lights
- Using the o-rings, fit the lights under the brackets. The power lead from the lights should be positioned at the rear left.
- Feed the light cables through the 12mm hole next to the light control board, and plug into one of the two black sockets. Either is fine.
Connect the power cable
Connect a light power cable (yellow ends) to the top connector of the light control board below, and the bottom connector for the light control board on this level.
