Parts required
- Front extension panel (marked FM)
- Rear extension panel (marked RM)
- 8x wafer head bolt (30mm)
- 8x rectangle nut

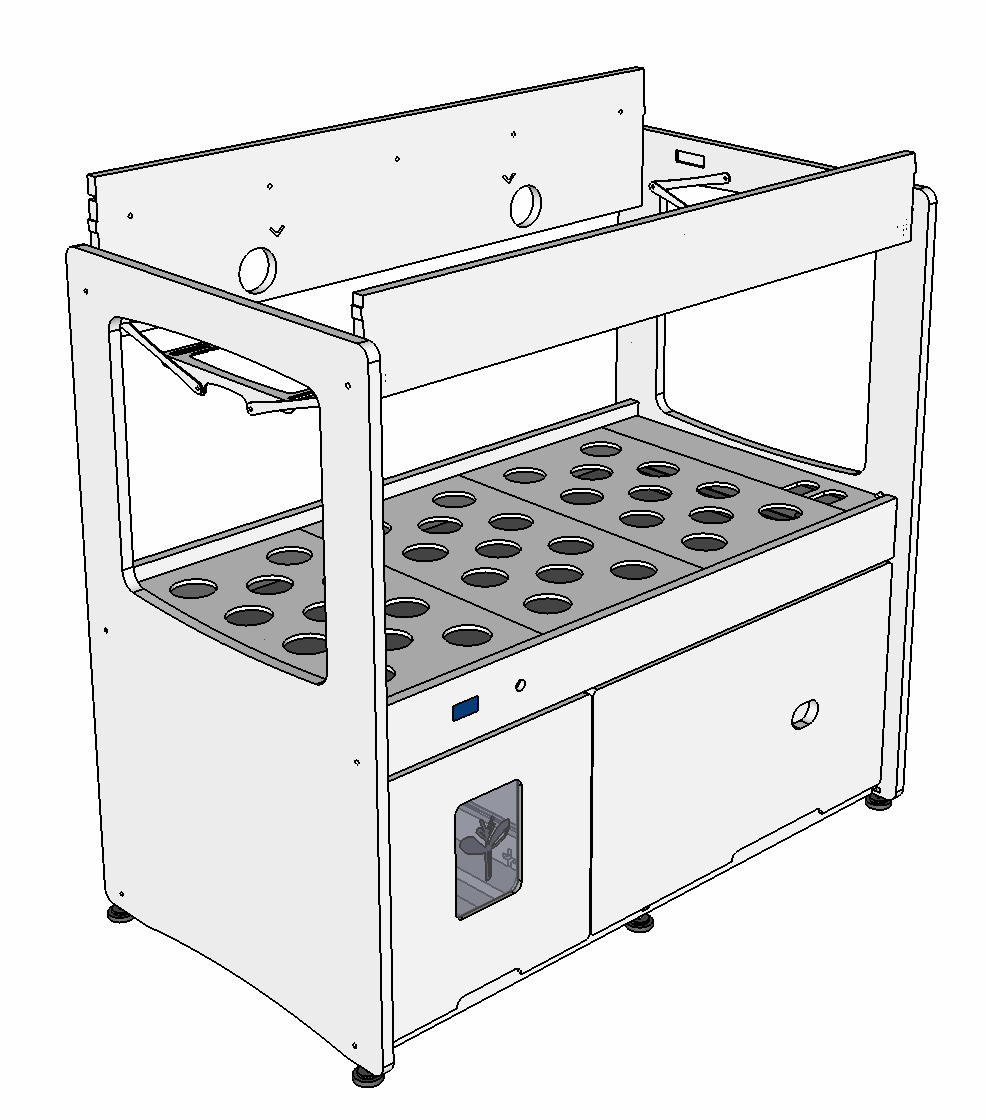

Front extension panel
- Fit the extension front (FM) to the side panels using the bolts and rectangular nuts which are already fitted to the top of the module below.
- The cross slots face backwards (inside the frame).
- Don't tighten yet.
Rear extension panel
In the same way, fit the rear extension panel.
Orientate as follows:
- Cross slots at the back of the system (outside the frame).
- Large fan holes at the bottom.
- Circuit board on the right as you are looking from the back, next to the cable slots running up the side panel.
Don't tighten yet.
Extending an H1
If you are extending a previously completed H1, you'll need to remove some parts first:
- Loosen the bolts holding the two upper cross pieces, and remove the lid.
- Remove the upper front and upper rear cross pieces.
Next: Extension side panels
