Parts required
- Left extension side panel
- Right extension side panel
- 4x long bolt
- 4x rectangle nut
Left side panel
The left side has a cable slot which goes at the rear.
- Fit a bolt through each of the holes in the side panel, with the head of the bolt on the side with the least machining.
- Add a rectangular nut loosely to each bolt.
- Place the side panel onto the assembled frame, sliding it forwards from the rear.
- Fit the nuts into the slots on the extension front and rear panels.
Right side panel
As per left side panel.

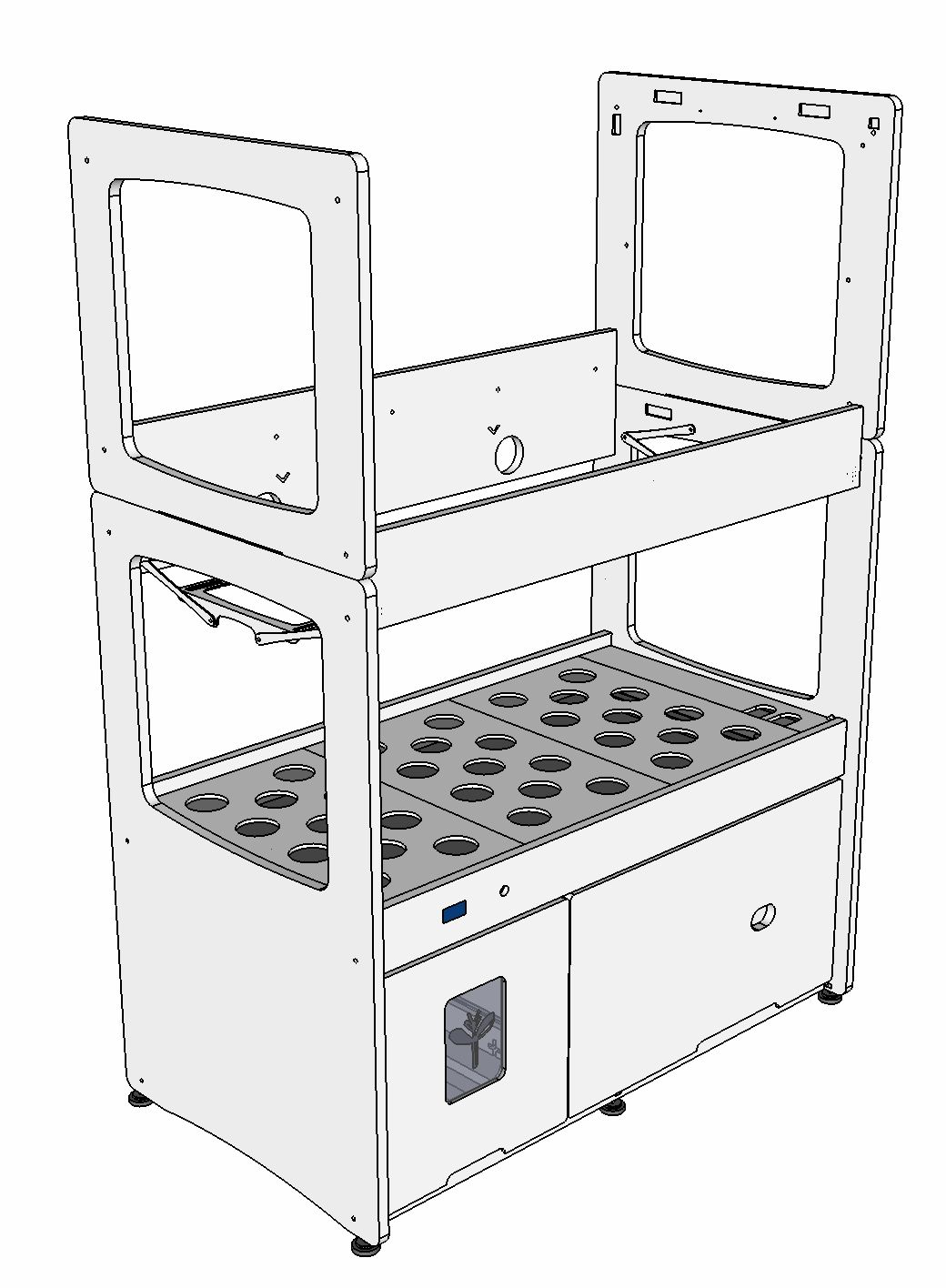

Once both side panels are in place, tighten all 8x retaining bolts.
Previous: Front + rear extension panels
