Parts required
- Tank level sensor (black)
- Temperature sensor (silver bullet)
- Pump
- Filter foam
- 2x short (10cm) cable tie
- 1x long (20cm) cable tie
Tank level sensor
Plug the black tank level sensor into the control unit, into the socket marked "TANK LEVEL". Run the sensor wire over the internal wall, into the tank cavity.
Pump
Place the pump into the tank cavity and plug the pump wire into the controller socket marked “PUMP”.

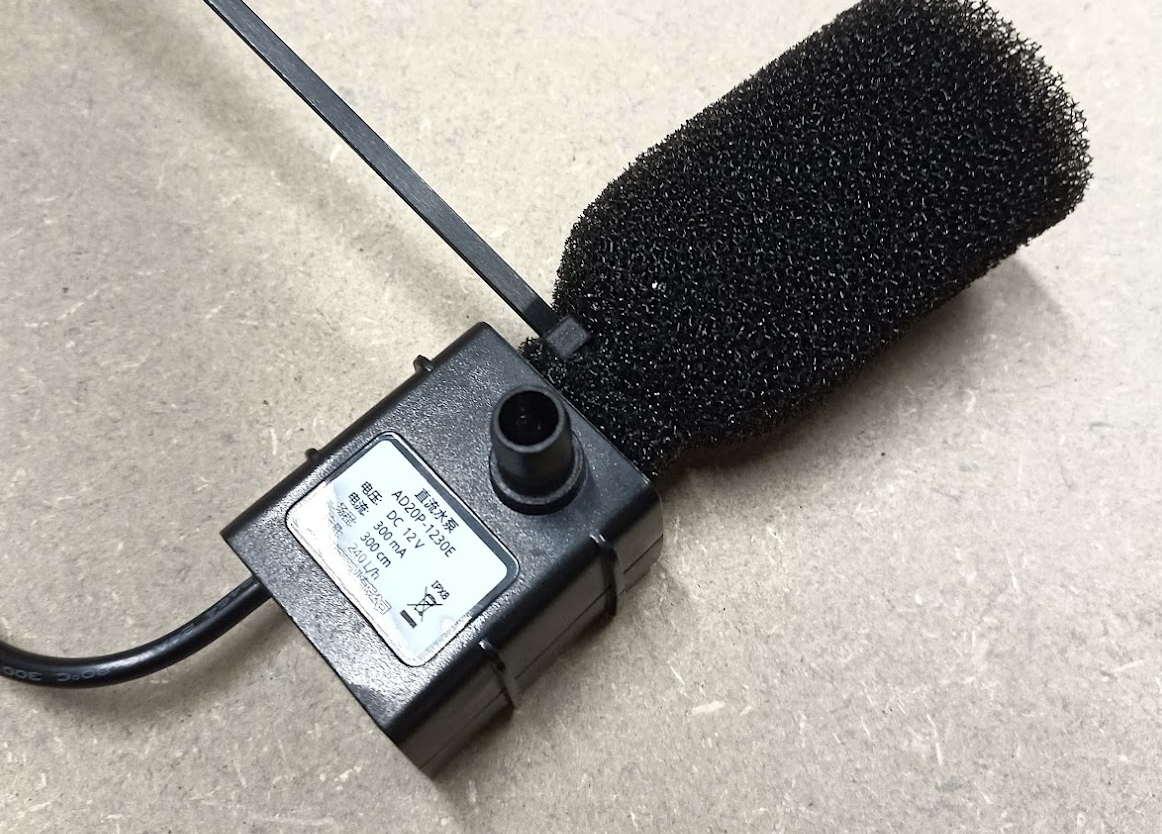

Using the long cable tie, secure the filter to the inlet of the pump:
Temperature sensor

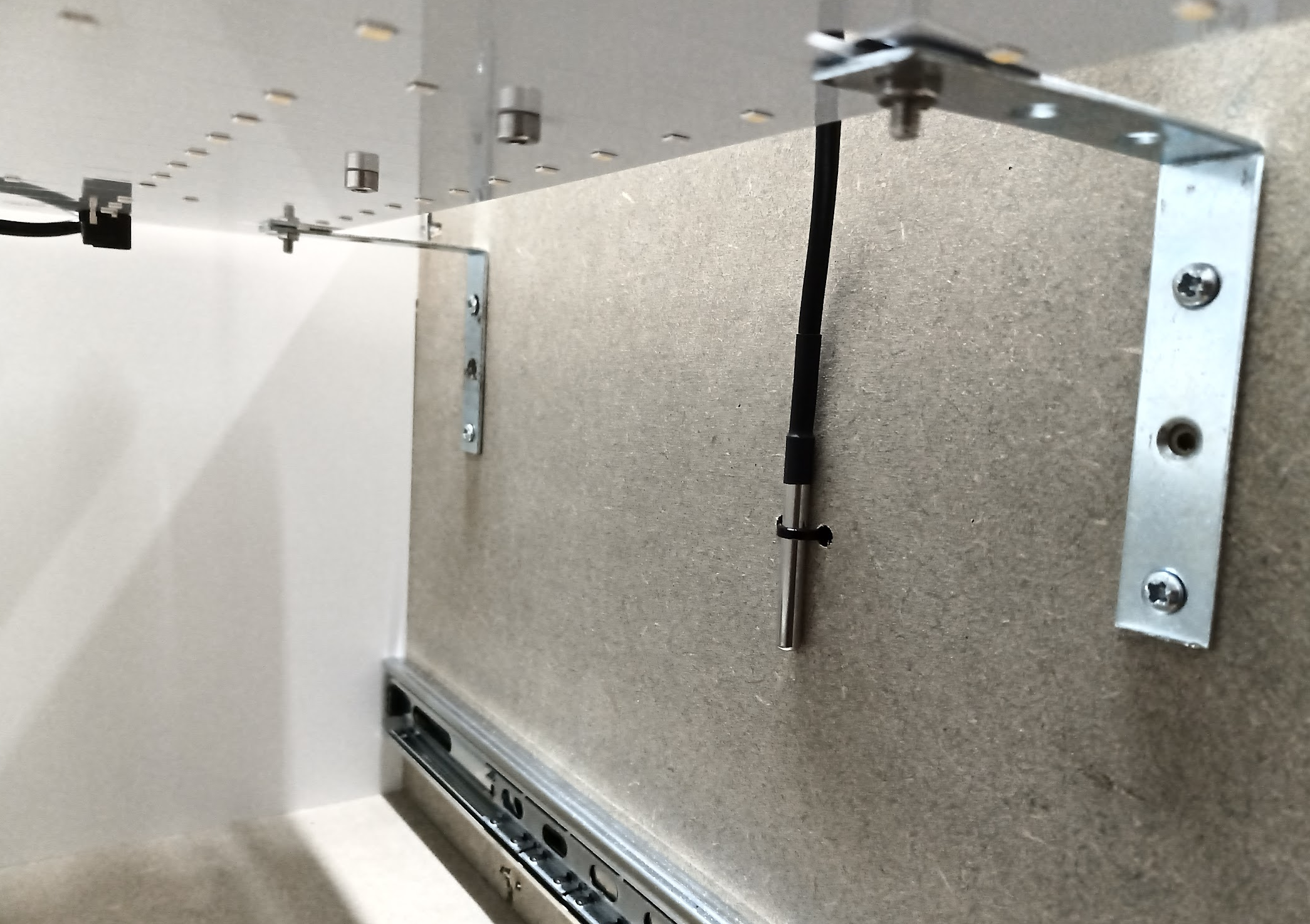

Plug the sensor into the control unit, on the bottom. Fix the sensor to the internal wall using a short cable tie:
Power inlet
Push the power inlet socket into the slot in the rear panel, and slide it to the side to secure. Tighten the nut gently.
