09 - Front panel

Parts

• 1x Front control panel with screen
• 2x long (20mm or 25mm) screws
• 1x screen cable (4-wire)

Process

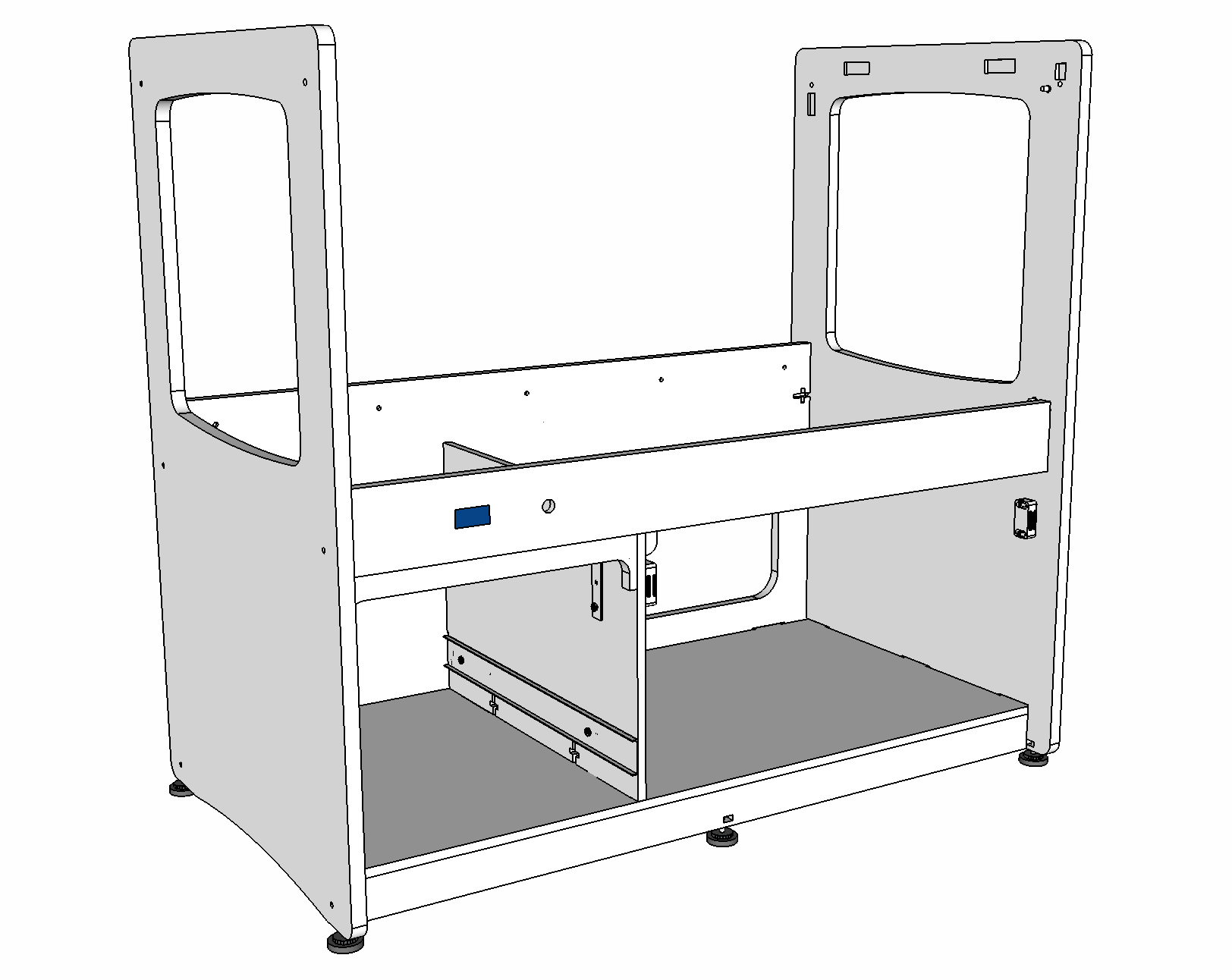

1. Position the front panel with the screen on the left hand side.
2. Attach the front panel to the bolts and rectangular nuts on the side panels.
3. Tighten securely.
4. Screw the door trim to the back of the front panel.
5. Uaing the screen cable, blug the screen and the button into the control board, into the sockets marked DISPLAY and BUTTON respectively.

Previous : Nursery door trim

Next :  Tray support pegs
