Parts required
- 4x short (~10mm) M4 bolt
- 4x M4 washer
- 4x M4 nut
- 1x Nursery light unit
Fit the light / control board
Using the M4 bolts with washers on top, and with the nuts underneath, fit the light board to the four brackets. The black power connector goes to the rear of the Harvst. The lights point downwards.

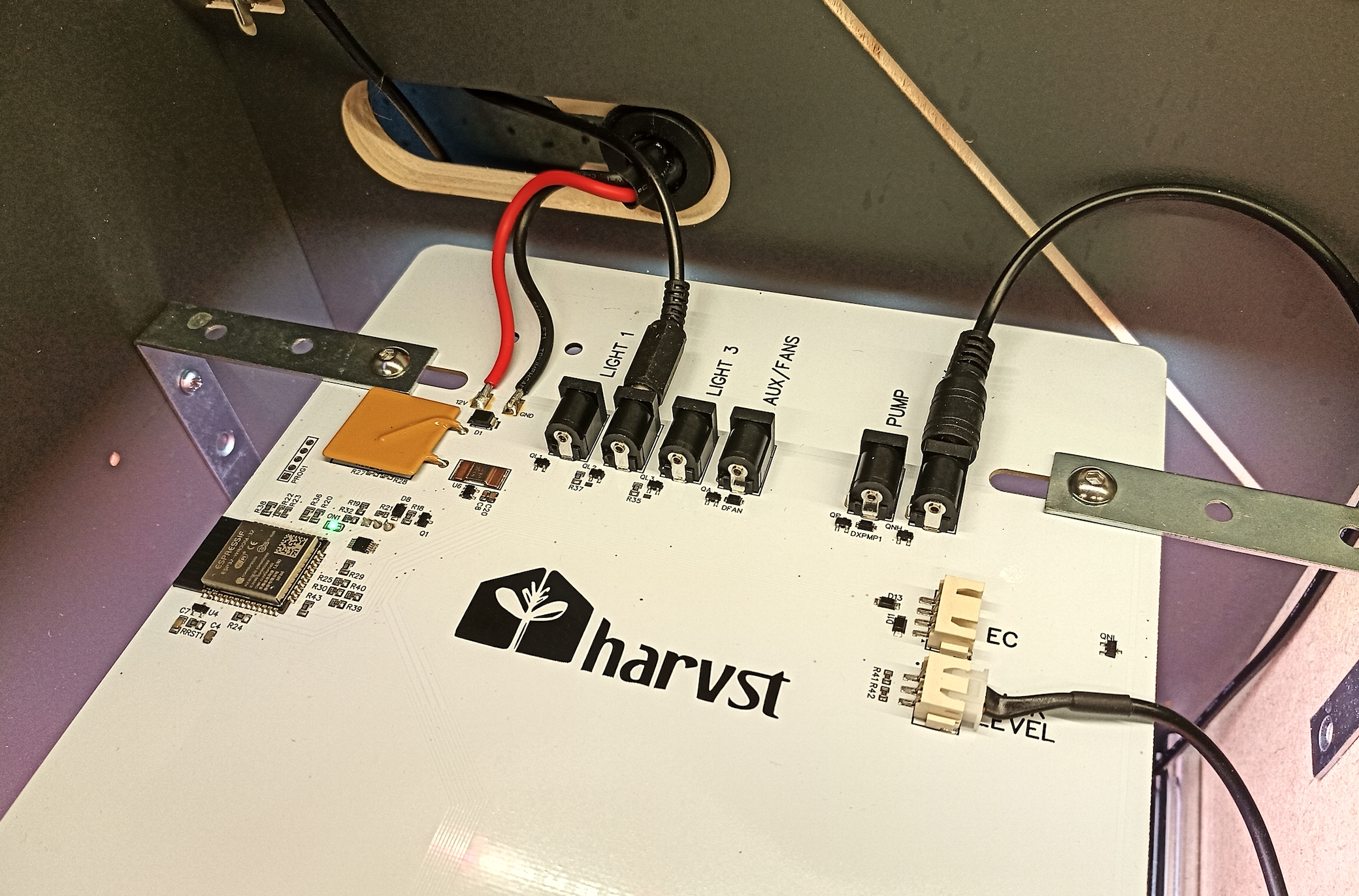

Ensure that the angle brackets are on TOP of the light unit as shown in the photo.
Tighten securely.
