Prepare the internal wall (add parts to panel)
Parts
- 1x internal wall panel
- 2x angle bracket
- 1x outer drawer slide (R)
- 6x short screw (3.5mm thread size)
- 2x mini screw (2.8mm thread size)
- 1x magnetic catch
Note that the smaller 2.8mm screws are supplied in a separate paper bag so they don't get mixed with the larger 3.5mm screws.
Process
- Orientate the internal wall as per the drawing below (but don't place it in the system yet).
- Fit two angle brackets using two 3.5mm screws in each bracket.
- Fit the right hand drawer slide outer, using two 3.5mm screws.
- Fit a magnetic catch using two 2.8mm screws, screwing it lightly so you can adjust it later.

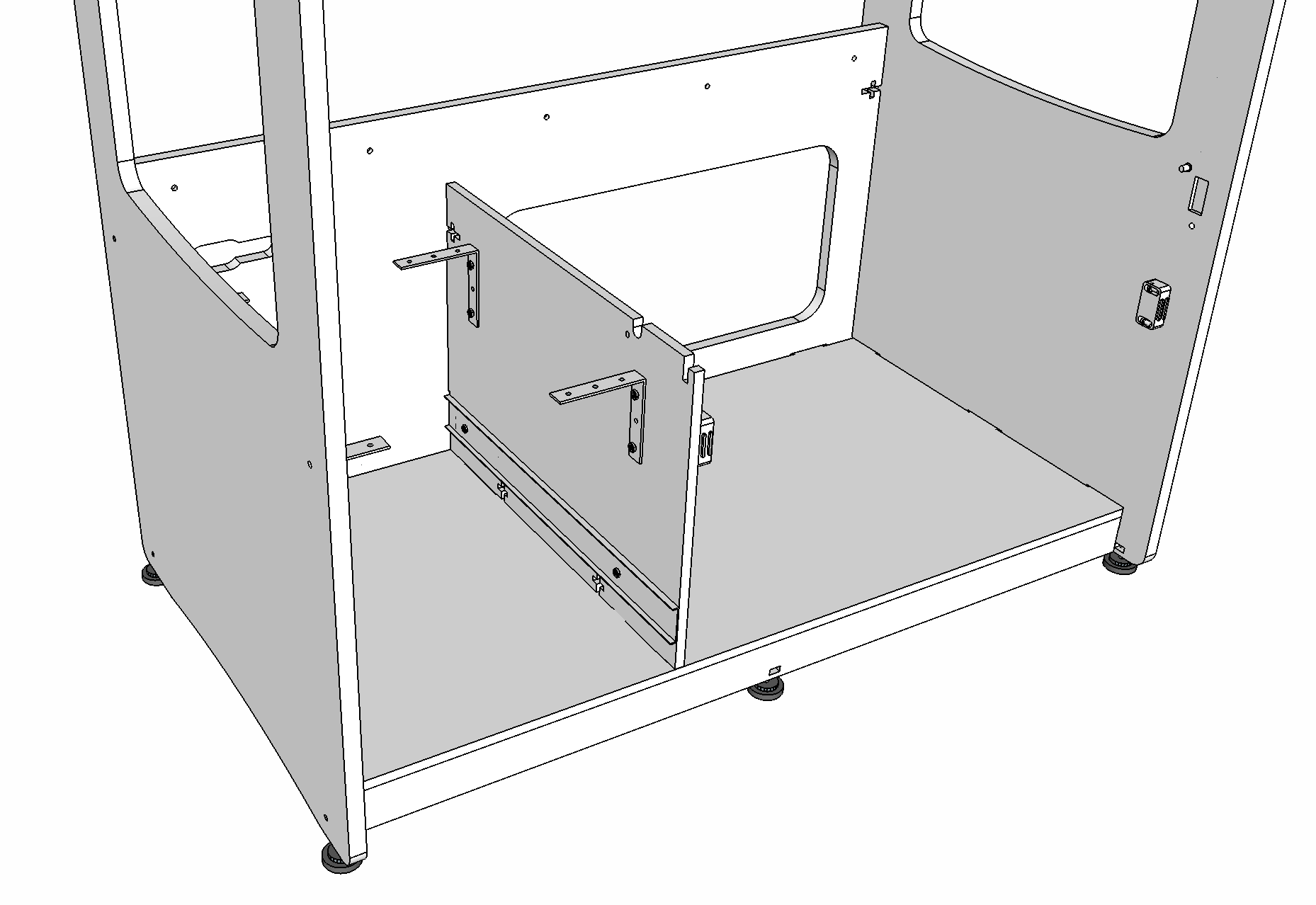

It will look like this when fitted:
Fit the internal wall
Parts
- Prepared internal wall assembly from above
- 4x long bolt (35mm)
- 4x rectangle nut
Process
- Push two bolts through the floor from below.
- Fit rectangular nuts onto them loosely.
- Do the same from behind the rear panel, and add another two nuts.
- Slot the internal wall over these nuts, and when the wall stubs are in the rear panel and floor slots, tighten the bolts.
