04 - Assemble sides to rear panel

Parts

• Rear panel (with large rectangle hole)
• Left side panel
• Right side panel
• Front base panel (marked FB)

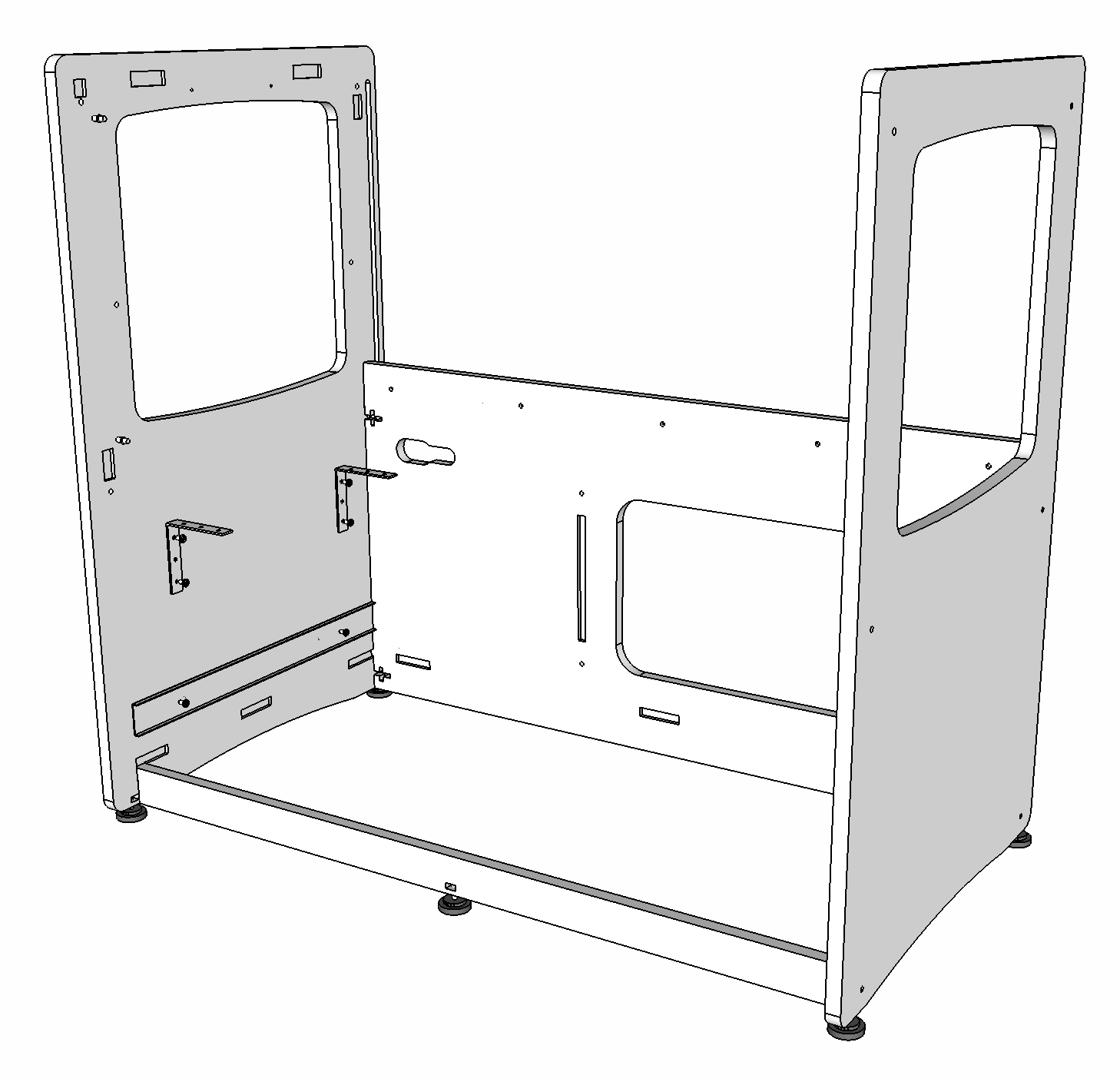

The finished step will look like this:

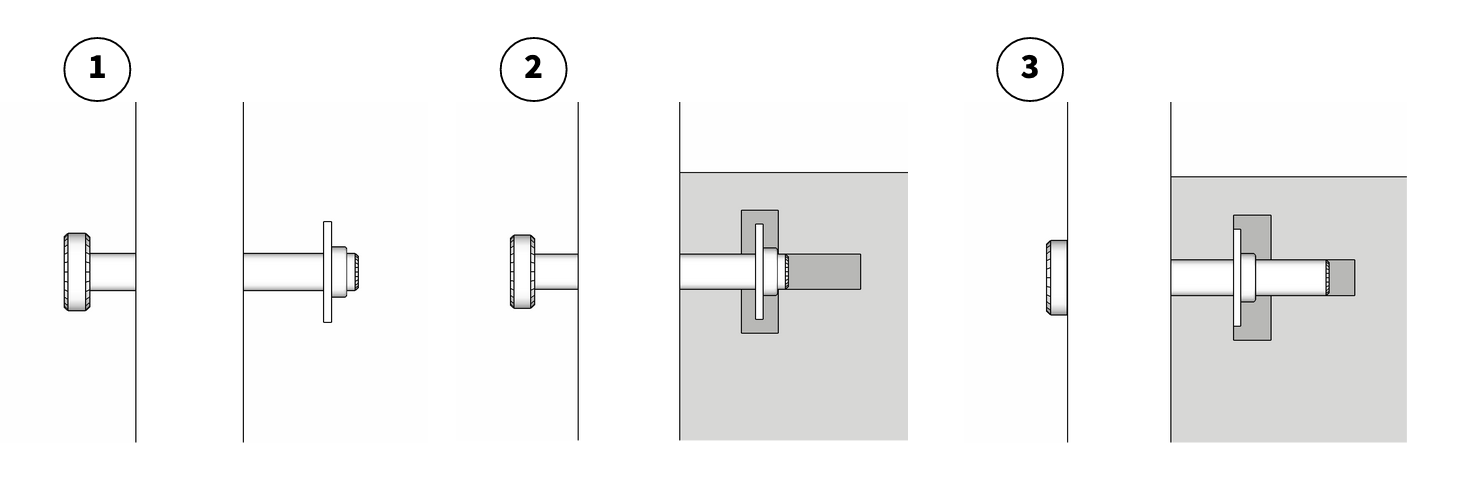

How to use the fixings

1. Insert the bolt and loosely fit the rectangle nut as shown.
2. Fit the panel over the bolt, with the nut slotting into the cross cut.
3. Tighten the bolt using the 3mm allen key from the outside of the panel.

Fit the sides

Assemble the rear panel to the sides. Tighten lightly (so that there’s a little play, allowing for the floor to go in later). Note the orientation of the rear panel from the picture below.

Fit the front base panel

Fit the front base panel (marked FB), with the crosses facing to the rear (inside) the Harvst. Leave the bolts a little loose until the floor is in place.
