Parts
- Drawer slide pack
Disassemble drawer slides
Disassemble the drawer slides by opening them up fully then pushing the little black tabs. The slide outer is the larger part and the slide inner is the smaller part.
There is no left or right drawer slide at this stage.
Process

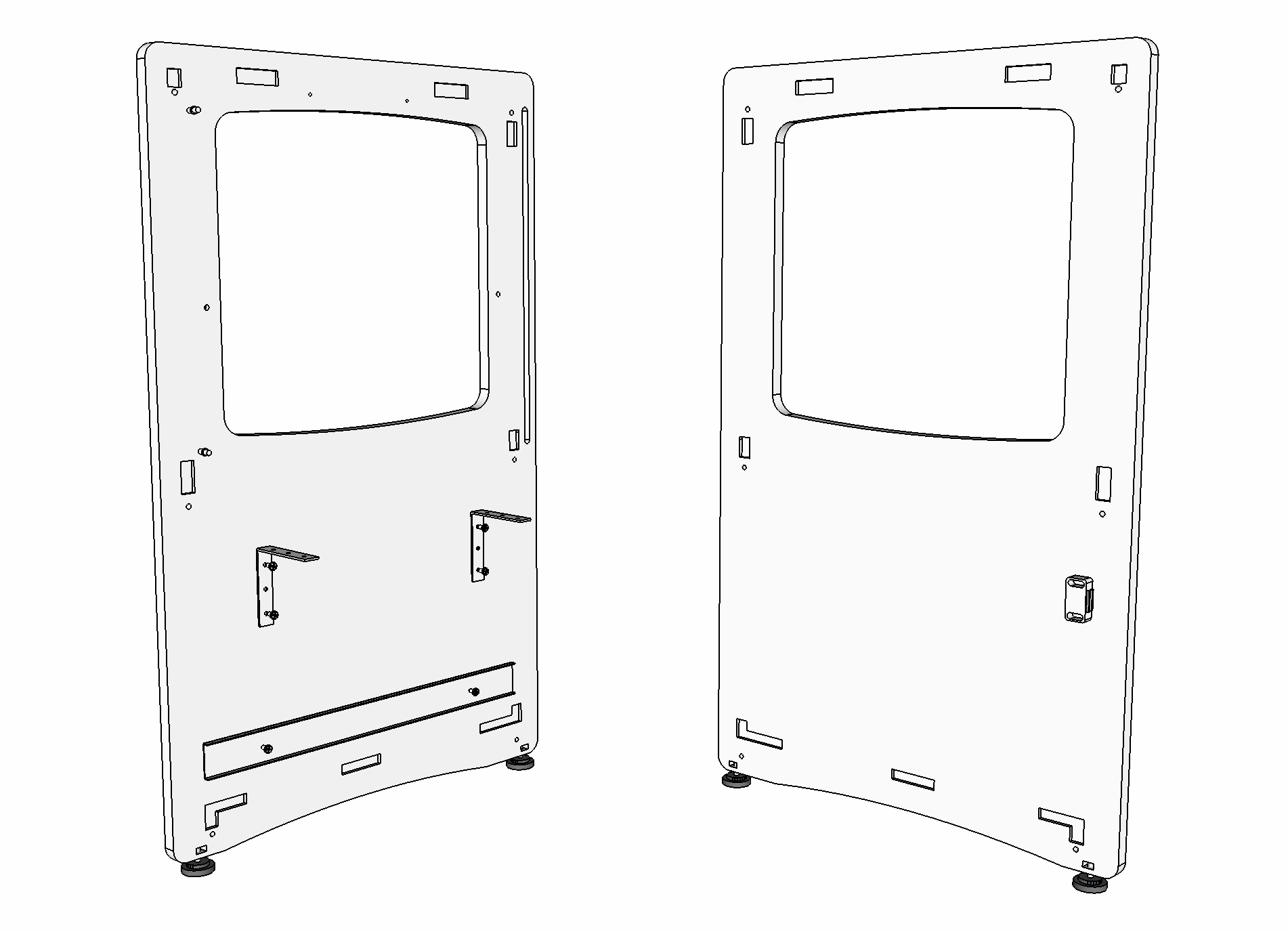

We'll be adding parts to the left and right panels:
Left side panel
- 1x Left side panel (with long slot)
- 1x Drawer slide outer
- 6x short screw (3.5mm thread size)
- 6x long bolt (35mm)
- 6x rectangle nut
- 2x 90-degree angle bracket
Fit a drawer slide outer to the side panel using two screws.
Fit two angle brackets using four screws. These will hold the nursery grow light.
Insert six long (35mm) bolts from the outside of the side panel, and loosely attach rectangular nuts, just enough so they bite the threads.
Right side panel
- 1x Right side panel
- 1x Magnetic catch
- 2x mini screw (2.8mm thread size)
- 6x long bolt
- 6x rectangle nut
Note that the mini screws are supplied in a separate paper bag so they don't get muddled with the slightly larger 3.5mm screws.
Fit a magnetic catch using two mini screws. Don’t tighten it fully, so you can adjust it later.

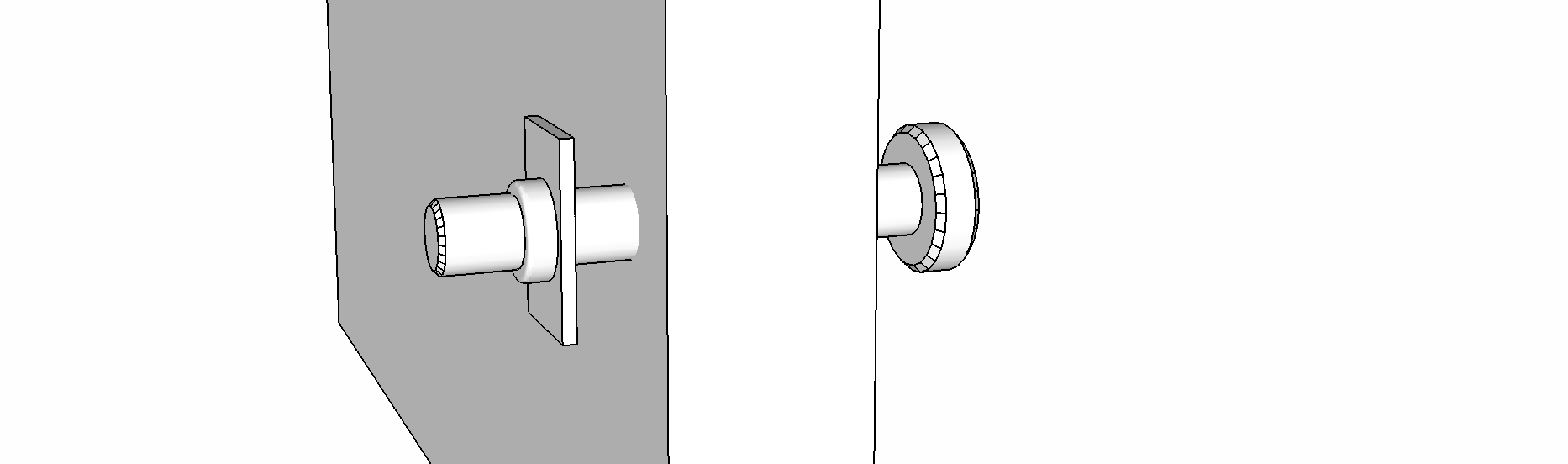

Insert six long bolts from the outside, and loosely attach rectangular nuts as per the drawing below (with the flat face of the nut towards the bolt head):
